Various Nut Tr22x3 Tr22x4 Tr22x5 Tr22x6 Tr22x8 Tr22x10 Tr22x16 Tr22x18 Tr22x20 Tr22x24 Right and Left Hand Precision Lead Screw
Request pricing, MOQ and lead time for this product — we reply within 24 hours.
Product parameters
- warranty
- 1.5 year
- weight (kg)
- 0.8
- video outgoing-inspection
- Provided
- machinery test report
- Provided
- core components
- Motor
- manufacturing process
- Rolled Thread
- length
- According to customer's requirement
- place of origin
- Jiangsu, China
- brand name
- ALM
- Lead Time
- 5~15days
- Industry experience
- 20 years
- Customized service
- Available
- Quality Standard
- ISO9001:2015,CE certificate,RoHS and reach compliance
- Clearance
- 7e,higher precision is available upon request
- Lead nut material
- POM,Brass,Bronze,PEEK, nylon
- Lead screw shaft material
- ASTM1045SUS303SUS304,SS316,SS316L
- Available surface coating
- Black chorme plated and so on
- Technical Support
- Available
Description

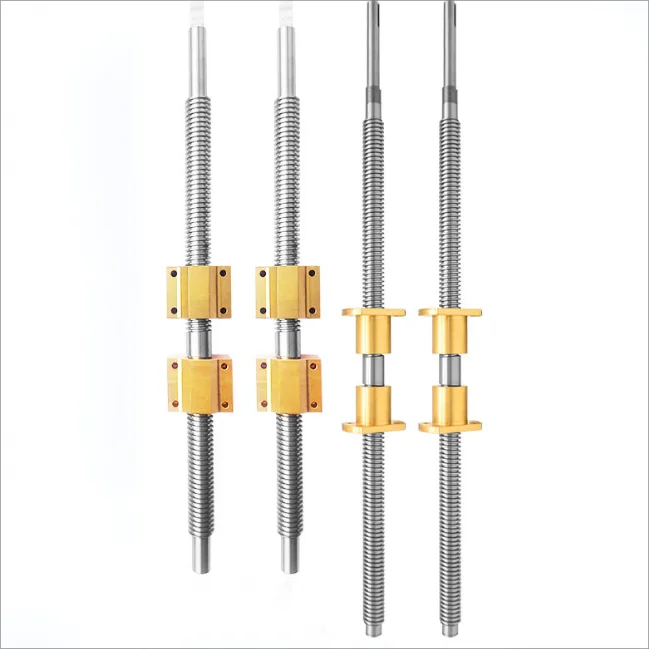

Product Overview Various nut Tr22x3 Tr22x4 Tr22x5 Tr22x6 Tr22x8 Tr22x10 Tr22x16 Tr22x18 Tr22x20 Tr22x24 right and left hand precision lead screw ALM is one of the world's three hard-rolled cold rolling screw rod technology holders. ALM lead screws fit nicely, run smoothly, left and right motion softness consistent, dynamic smoothness is good, lead screw assemblies transmission efficiency is higher, torque is smaller, motor load is smaller. Both cold rolling and grinding manufacturing technology are available to provide the corresponding products according to customers' requirements. Available lead screw material ASTM1045,SUS303,SUS304,SS316,SS316L Available lead nut material Brass,Tin bronze,Phosphor bronze,Aluminum bronze,POM,PEEK,nylon,POK,Stainless steel, 1045,Zinc alloy,Brass+Plastic,Aluminum alloy+Plastic,Brass+Steel,Self lubricating(No oil type) Available surface coating Zinc-plated,nickel plated,hard chromium plated,fluorine coated,tungsten disulfide,black chorme plated Quality standard ISO9001:2015,CE certificate,RoHS and reach compliance Clearance 7e,higher precision is available upon request Custom Services Customized nuts and end machining are available upon drawing ALM Lead Screw Video Show Our Advantages ●Low friction ●High speed ●Wear resistance ●Corrosion resistance Free service Performance testing Technical solution Custom service C45,Stainless steel and other customized materials Surface treatment Custom lead nut and shaft end machining Various Lead screws Available From ALM Lead Screw Dimension Lead Screw Applications ALM
Detail images
