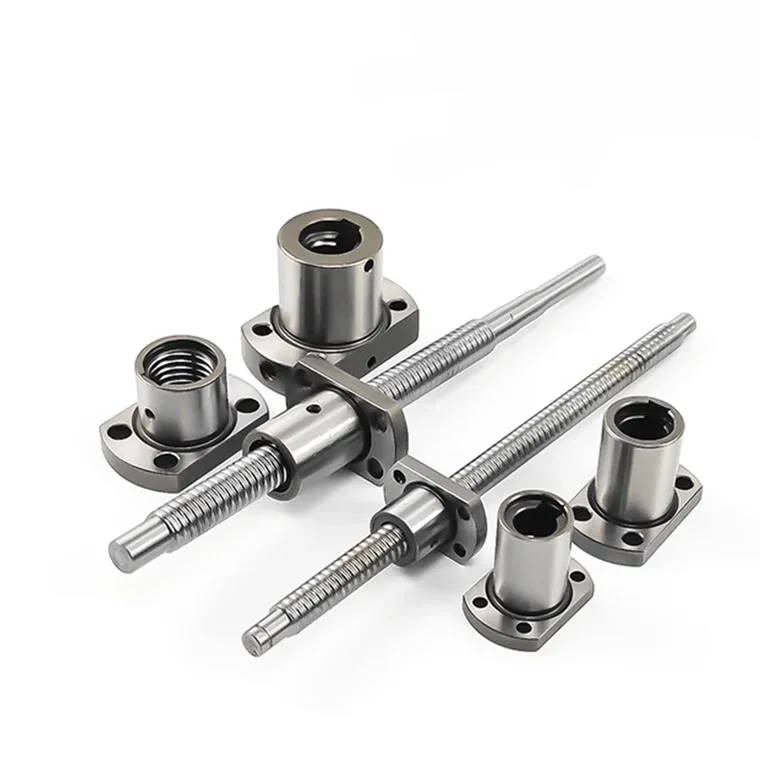

C3 C5 C7 Micro 4mm 6mm 8mm Diameter Screw SFK0401 SFK0601 SFK0801 SFK0802 SFK0802.5 Ball Screw with Flange Nut
Request pricing, MOQ and lead time for this product — we reply within 24 hours.
Product parameters
- warranty
- 1.5 year
- weight (kg)
- 0.8
- video outgoing-inspection
- Provided
- machinery test report
- Provided
- core components
- Motor
- material
- Bearing steel
- length
- According to customer's requirement
- place of origin
- Jiangsu, China
- brand name
- ALM
- Efficiency
- >90%
- Preload
- P0,P1,P2,P3,P4
- Axial play
- 0~0.005mm(Can be zero)
- Accuracy grade
- C1,C3,C5,C7
- Available surface coating
- Black chorme plated and so on
- Quality Standard
- ISO9001:2015,CE certificate,RoHS and reach compliance
- Lead Time
- 10~30days
- Customized service
- Available
- Industry experience
- 20 years
Description

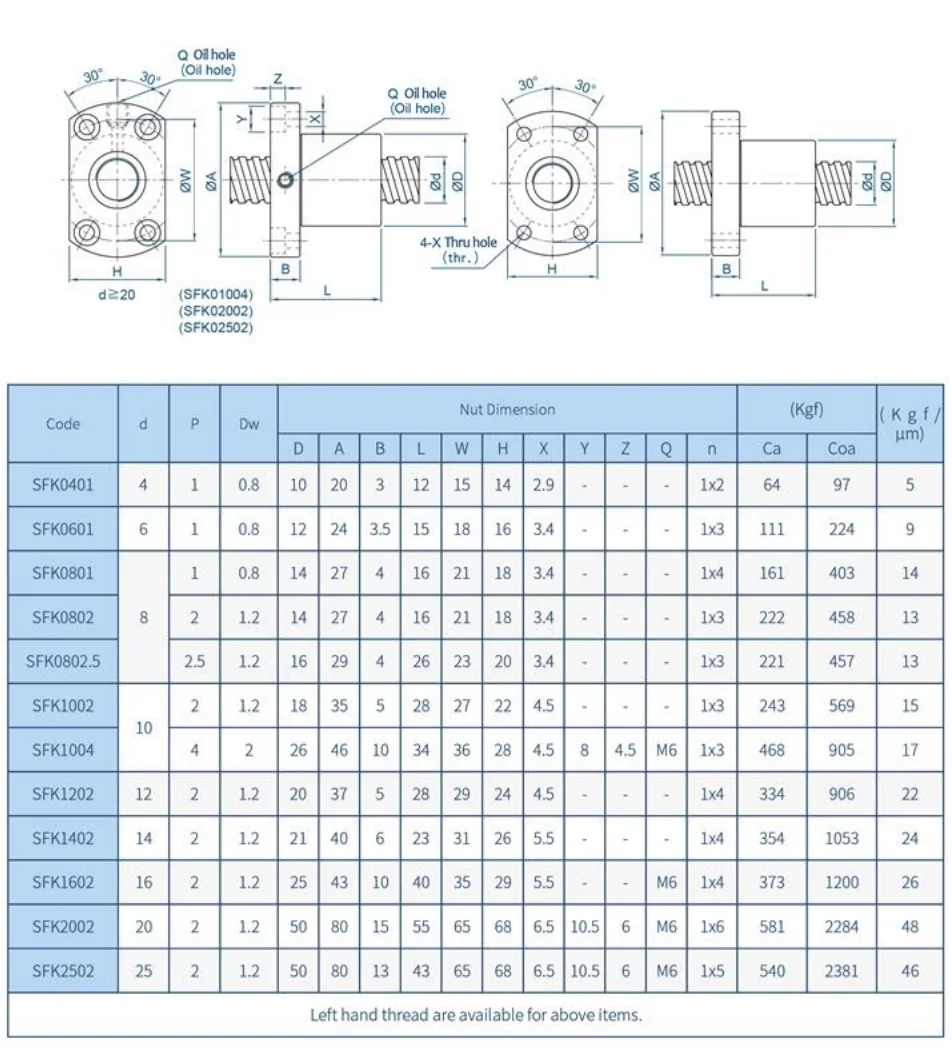

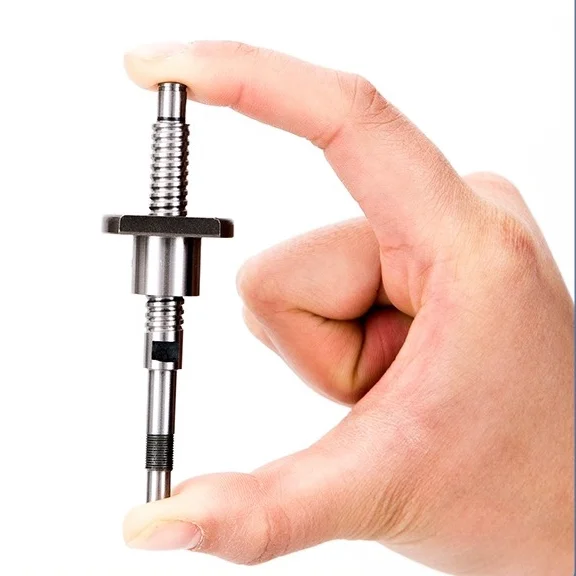

Product Overview C3 C5 C7 micro 4mm 6mm 8mm diameter screw SFK0401 SFK0601 SFK0801 SFK0802 SFK0802.5 ball screw with flange nut The mini ball screw is designed to provide long-lasting performance and exceptional accuracy. Whether you're working with complex machinery or simple mechanical systems, this miniature ball screw is the perfect choice for achieving the precision and reliability you need. Material Gcr15(HRC60~62),9Cr18(HRC55~58) Axial play 0~0.005mm(Can be zero) Preload P0,P1,P2,P3,P4 Quality standard ISO9001:2015,CE certificate,RoHS and reach compliance Efficiency ＞90% Features Clean and smooth,excellent surface finsh Packing Carton+Plastic bag + Wooden box or according to customers' demands ALM Intelligent Manufacturing And Inspection Online Our Advantages Free service Performance testing Technical solution Custom service Gcr15,9Cr18 and other customized materials Surface treatment Custom ballnut and shaft end machining Various Ball Screws Available from ALM Ball Screw Dimensions Ball Screw Applications ALM
Detail images
