3D Printer Accessories
2 Phase 3 Phase Step Motor ROHS Micro Nema 23 NEMA24 High Torque Hybrid Stepper Motor Stepping Motor
Full details
Request pricing, MOQ and lead time for this product — we reply within 24 hours.
Product parameters
- Phase
- 2/3
- Shaft Diameter
- 10 mm
- Torque
- 2.0 N·m
- Type
- Hybrid
- Model Number
- ALB57K~ALB60T
- Brand Name
- ALM
- Place of Origin
- Jiangsu, China
- Current / Phase
- 24
- Nema Frame Size
- NEMA 23
- Voltage
- Dc 24V
- Warranty
- 3 Months
- Lead Time
- 3~5days
- Industry experience
- 20 years
- Customized service
- Available
- MOQ
- 1Set
- Quality Standard
- ISO9001:2015,CE certificated
- Step Angle
- 1.8/1.2 /0.9 deg
- Step Angle Accuracy
- ±5% (full step, no load)
- Resistance Accuracy
- ±10%
- Temperature Rise
- 80 °C Max.(rated current)
- Insulation Resistance
- 100 MΩ Min., 500VDC
Description

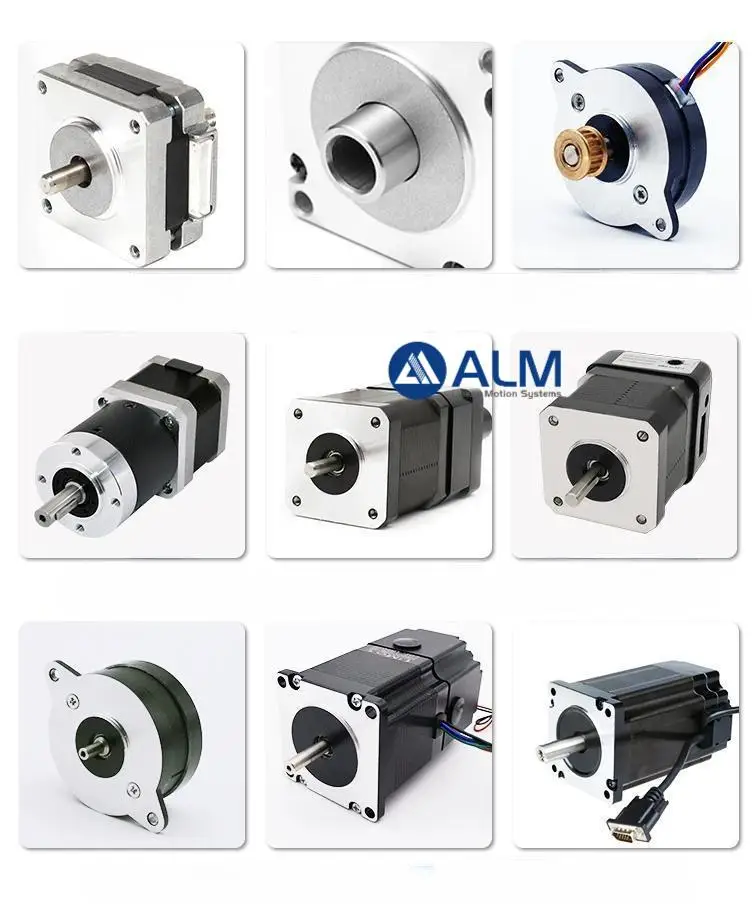

Product Overview 2 Phase 3 Phase Step motor ROHS micro Nema 23 Stepper Motor NEMA24 high torque Hybrid Stepper Motor stepping motor ALM stepper motors are widely used in various applications that require precise control motion, such as robotics, 3D printers, CNC machines, and automation systems. Our stepper motor offer several advantages, including high torque at low speeds, accurate positioning, and the ability to hold a position without power. ALM Stepper Motor Advantages Various Stepper Motors Are Ready In Stock Dimension Stepper Motor Application ALM
