4mm Diameter Pitch 1mm 2mm 6mm 4x1 4x2 4x6 Screw Ballscrew 0401 0402 0406 Rolled Ground C3 C5 C7 Ball Screw
Request pricing, MOQ and lead time for this product — we reply within 24 hours.
Product parameters
- warranty
- 1.5 year
- weight (kg)
- 0.8
- video outgoing-inspection
- Provided
- machinery test report
- Provided
- core components
- Motor
- material
- Bearing steel
- length
- According to customer's requirement
- place of origin
- Jiangsu, China
- brand name
- ALM
- Efficiency
- >90%
- Preload
- P0,P1,P2,P3,P4
- MOQ
- 1 Set
- Axial play
- 0~0.005mm(Can be zero)
- Accuracy grade
- C1,C3,C5,C7
- Available surface coating
- Black chorme plated and so on
- Quality Standard
- ISO9001:2015,CE certificate,RoHS and reach compliance
- Lead Time
- 10~30days
- Customized service
- Available
- Industry experience
- 20 years
- Condition
- New
- Showroom Location
- Turkey, United Kingdom, United States, Brazil, India, Mexico, Spain, South Korea, Malaysia
- Marketing Type
- New Product 2020
- Warranty of core components
- 1 Year
- Applicable Industries
- robot, automation equipment, linear actuator, CNC machine
Description

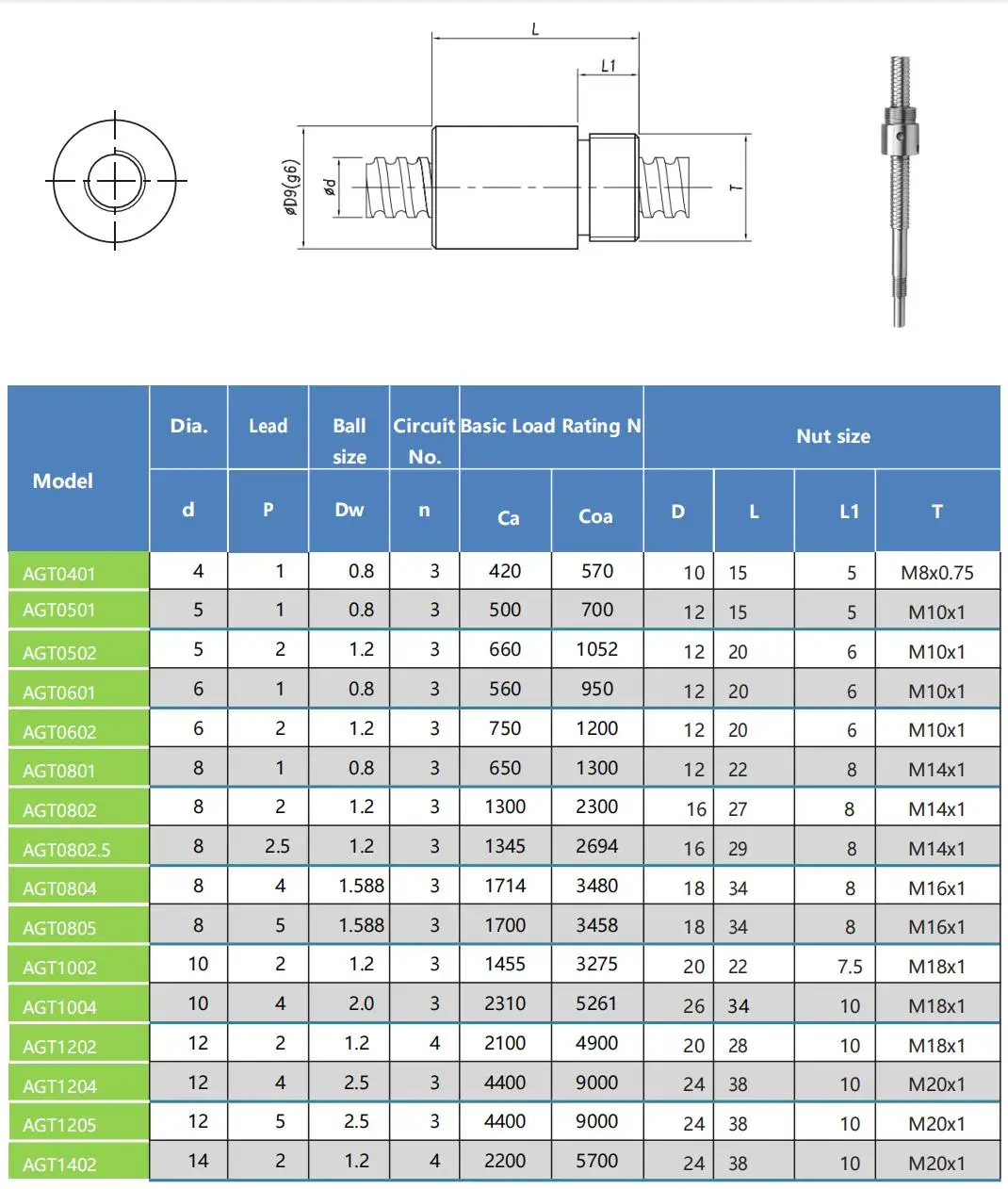

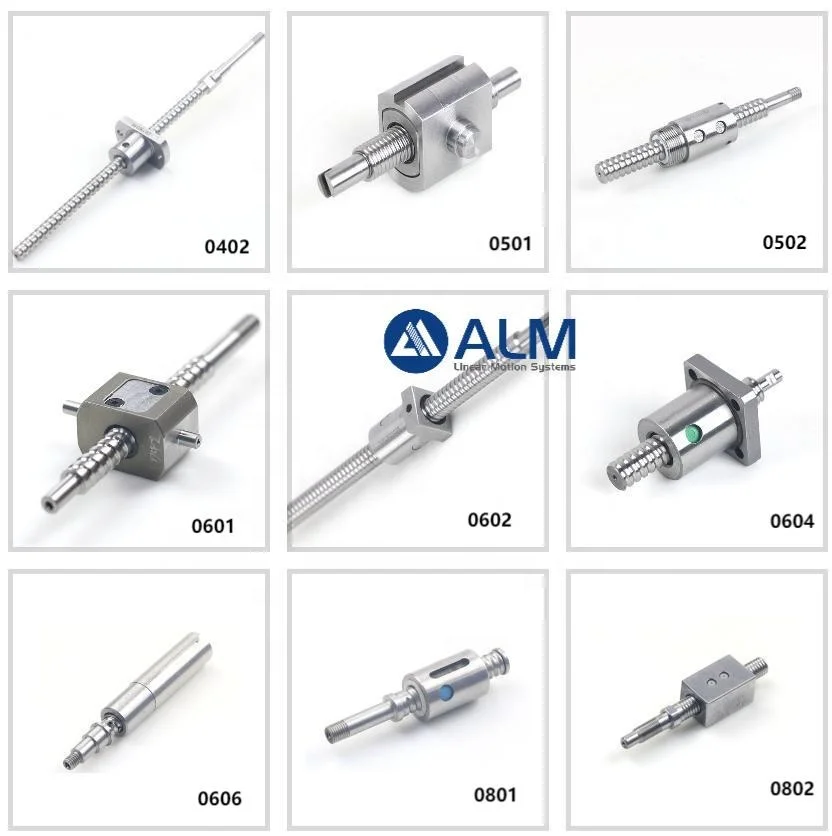

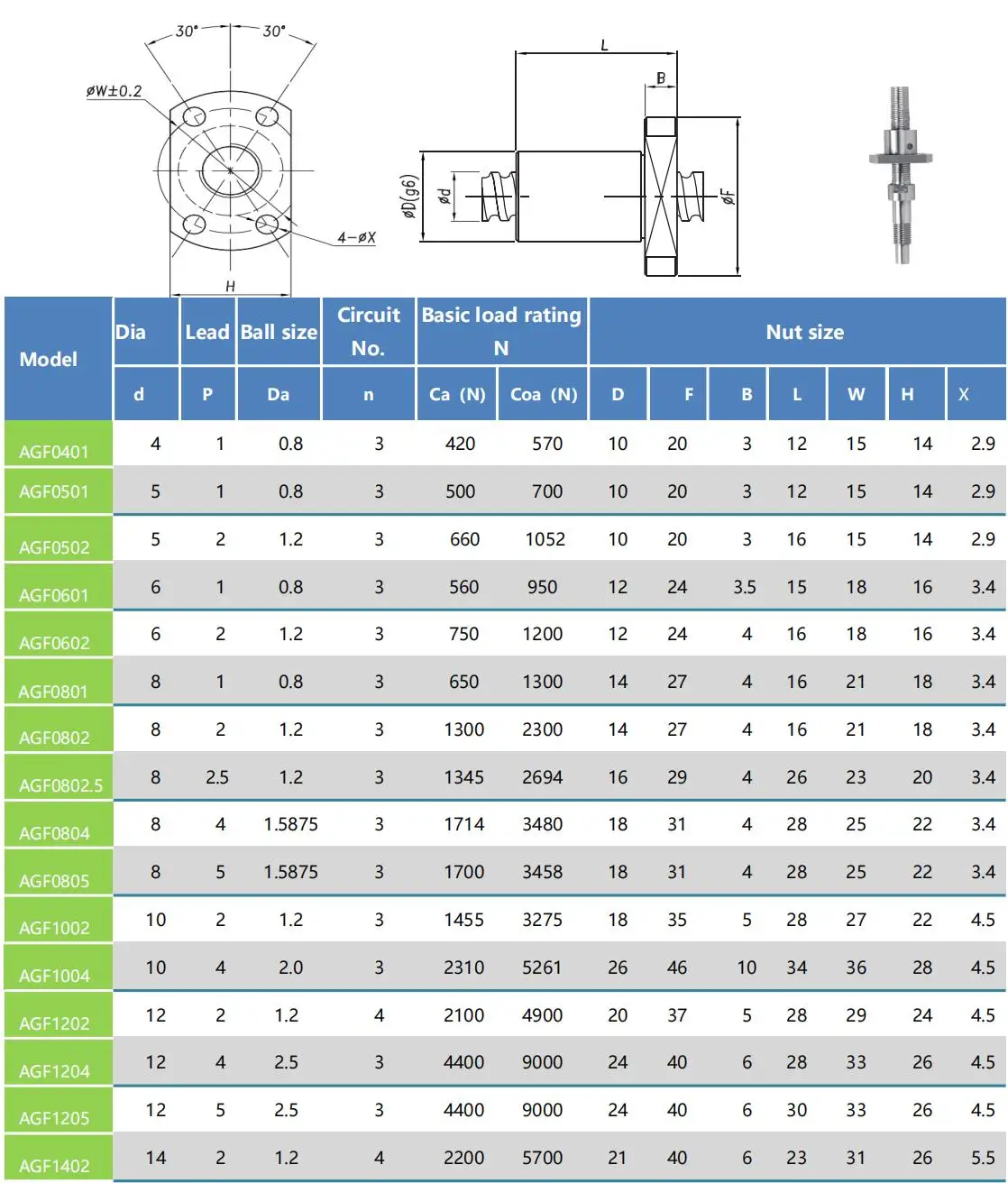

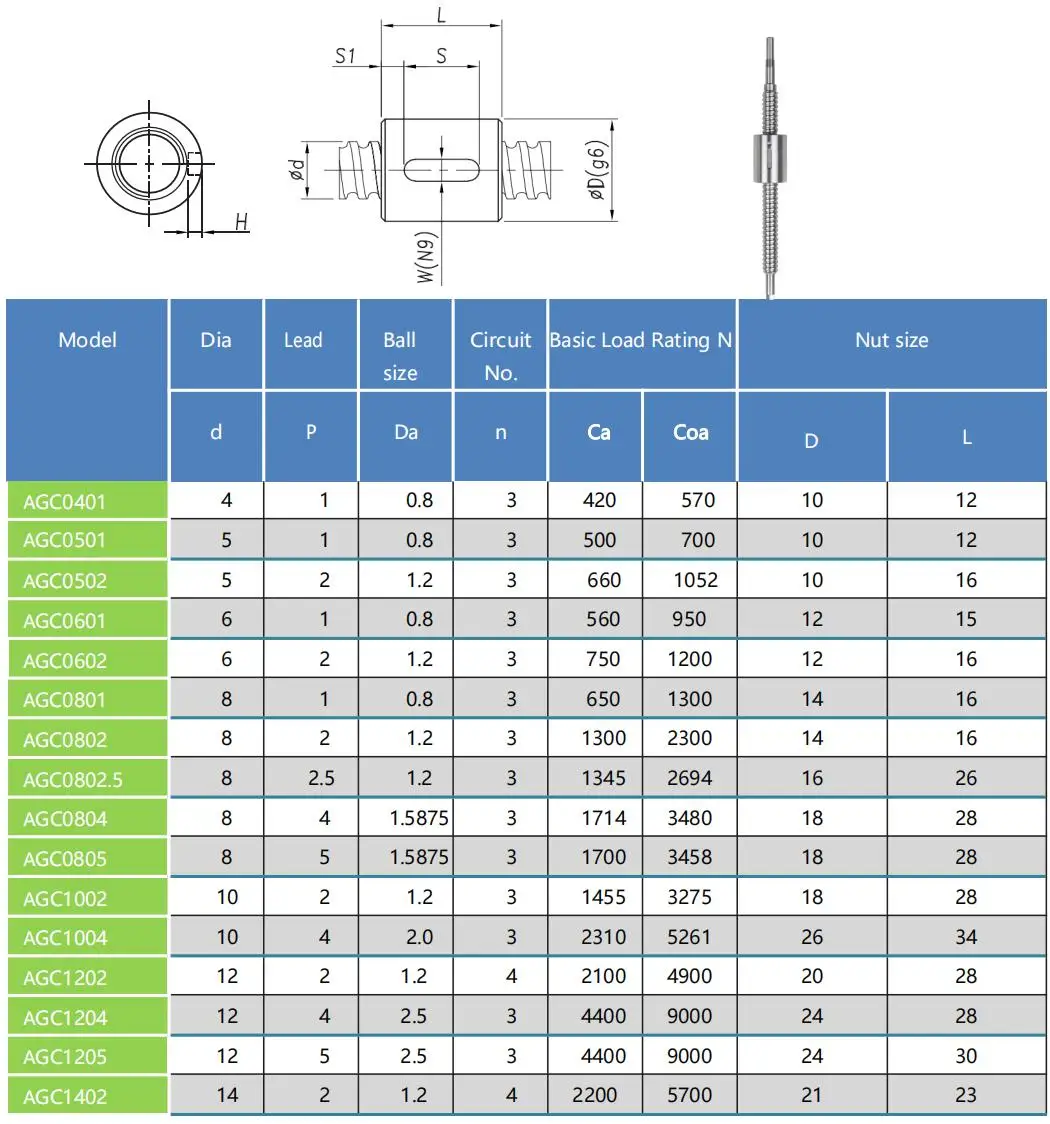

Product Overview 4mm diameter pitch 1mm 2mm 6mm 4x1 4x2 4x6 screw ballscrew 0401 0402 0406 rolled ground C3 C5 C7 ball screw The mini ball screw is designed to provide long-lasting performance and exceptional accuracy. Whether you're working with complex machinery or simple mechanical systems, this miniature ball screw is the perfect choice for achieving the precision and reliability you need. Material Gcr15(HRC60~62),9Cr18(HRC55~58) Axial play 0~0.005mm(Can be zero) Preload P0,P1,P2,P3,P4 Quality standard ISO9001:2015,CE certificate,RoHS and reach compliance Efficiency ＞90% Features Clean and smooth,excellent surface finsh Packing Carton+Plastic bag + Wooden box or according to customers' demands ALM Miniature Ball Screw Video Show Our Advantages Free service Performance testing Technical solution Custom service Gcr15,9Cr18 and other customized materials Surface treatment Custom ballnut and shaft end machining ● Excellent surface finish ● High efficient:more than 95% ● High accuracy:C1,C3,C5 ALM Product Show Ball Screw Dimensions Ball Screw Applications ALM
Detail images
