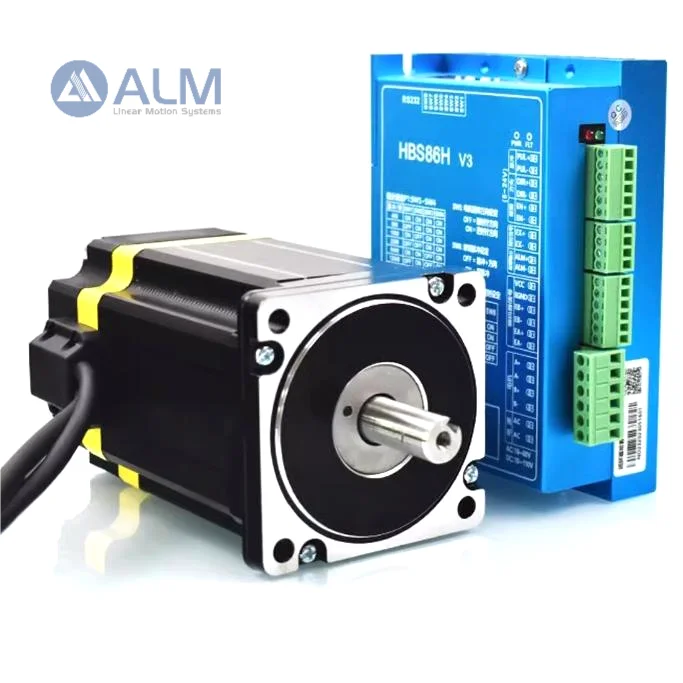

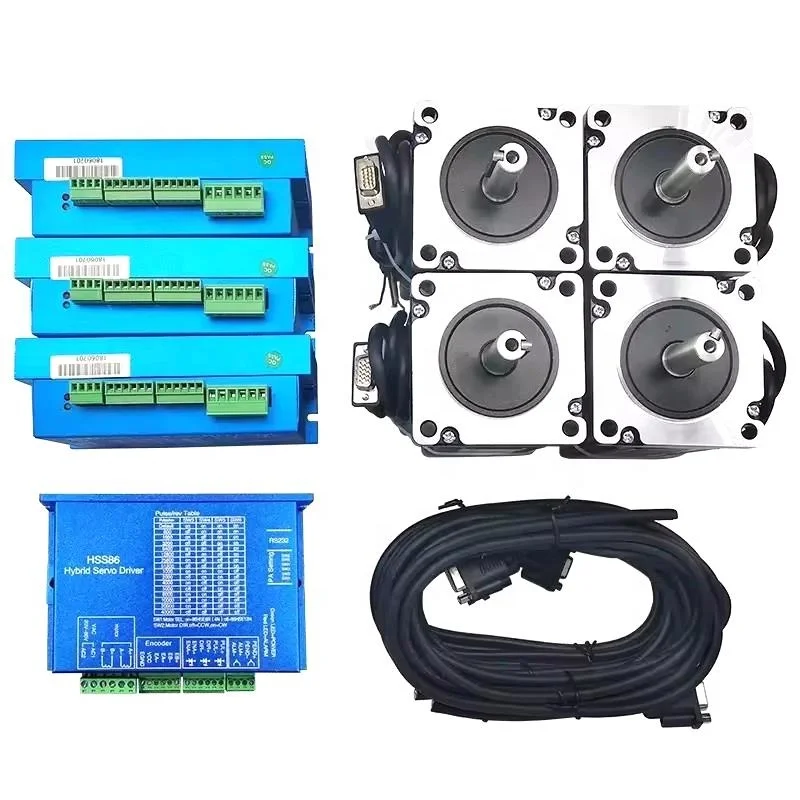

Kit Cnc 3 4 5 Axis Stepper Motor Kit 4.5N.m 8N.m 12N.m Nema 34 Closed Loop Stepper Motor With Encoder 1000ppr
Full details
Request pricing, MOQ and lead time for this product — we reply within 24 hours.
Product parameters
- Phase
- 2
- Shaft Diameter
- 5.0mm
- Torque
- 1.0 nm
- Type
- Hybrid
- Model Number
- NAME34
- Brand Name
- ALM
- Place of Origin
- Jiangsu, China
- Nema Frame Size
- NEMA 11
- Voltage
- Dc 24V, 24V-48V
- Warranty
- 3 Months
- Lead Time
- 3~5days
- Industry experience
- 20 years
- Customized service
- Available
- Frame Size
- 86*86mm
- Quality Standard
- ISO9001:2015,CE certificated
- Step Angle
- 1.8deg
- Body length
- Body length
- Shaft
- Customized (12.7mm D-shaft Keyway)
- Current / Phase
- 6.2A
Description

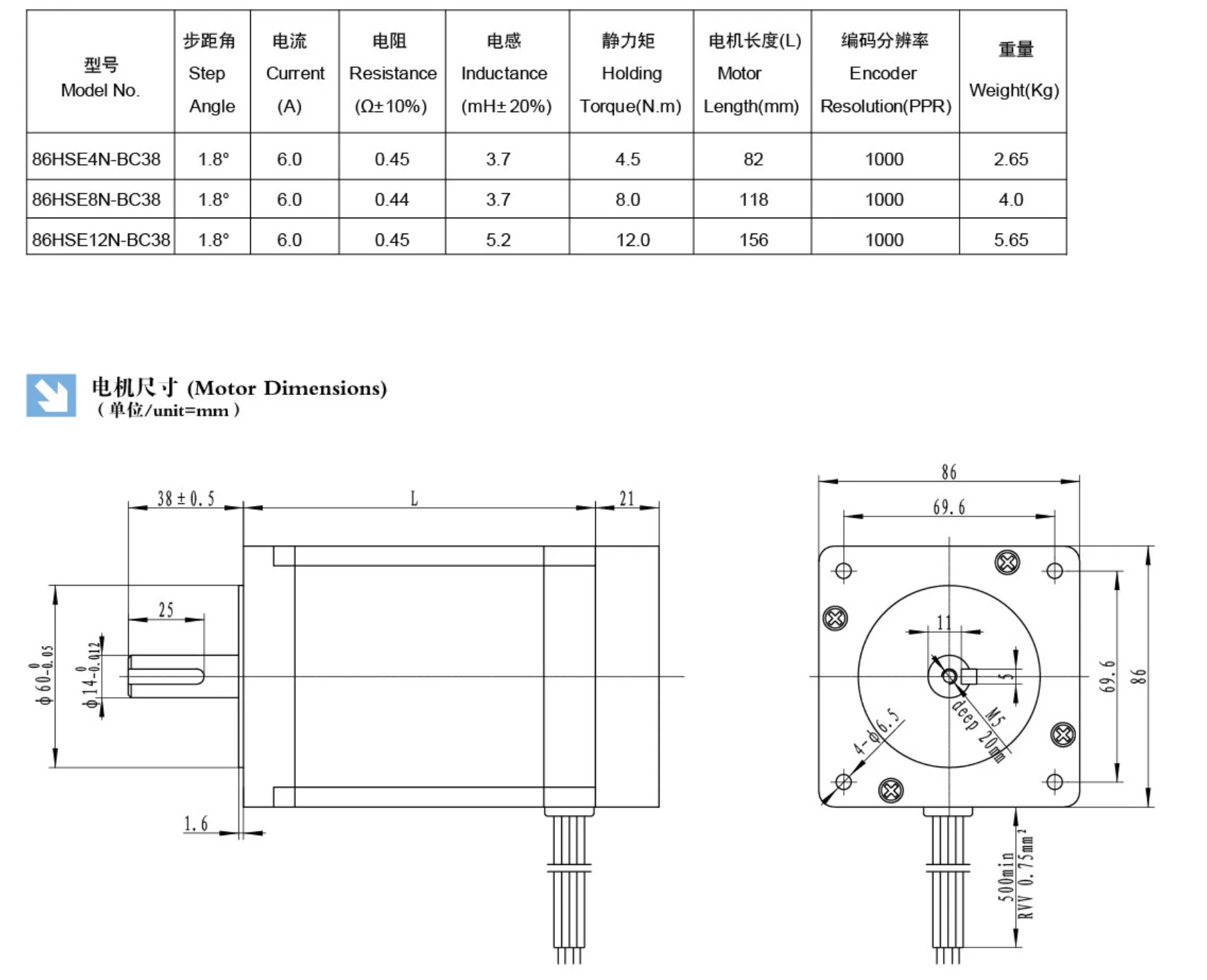

Product Overview kit cnc 3 4 5 Axis stepper motor kit 4.5N.m 8N.m 12N.m Nema 34 closed loop stepper motor with encoder 1000ppr ALM stepper motors are widely used in various applications that require precise control motion, such as robotics, 3D printers, CNC machines, and automation systems. Our stepper motor offer several advantages, including high torque at low speeds, accurate positioning, and the ability to hold a position without power. ALM Stepper Motor Advantages Various Stepper Motors Are Ready In Stock Dimension Stepper Motor Application ALM
Detail images
