Normally Close/open MK MKS 1501 2001 2501 Pneumatic Round Shaft Rail Gripper Clamp Guideway Lock Brakes Air Clamping element
Request pricing, MOQ and lead time for this product — we reply within 24 hours.
Product parameters
- weight (kg)
- 0.45
- core components
- NONE
- place of origin
- China
- Lead Time
- 3~5days
- Industry experience
- 20 years
- Customized service
- Available
- MOQ
- 1 Set
- Quality Standard
- ISO9001:2015,CE certificated
- Technical Support
- Available
- Package
- Carton+Plastic bag + Wooden box or according to customers' demands
- Material
- 20Crmo+Nickel plating
- Linear guide series
- 15 ; 20 ; 25 ; 30 ; 35;45; 55; 65
- Quality
- 100% Testing
Description

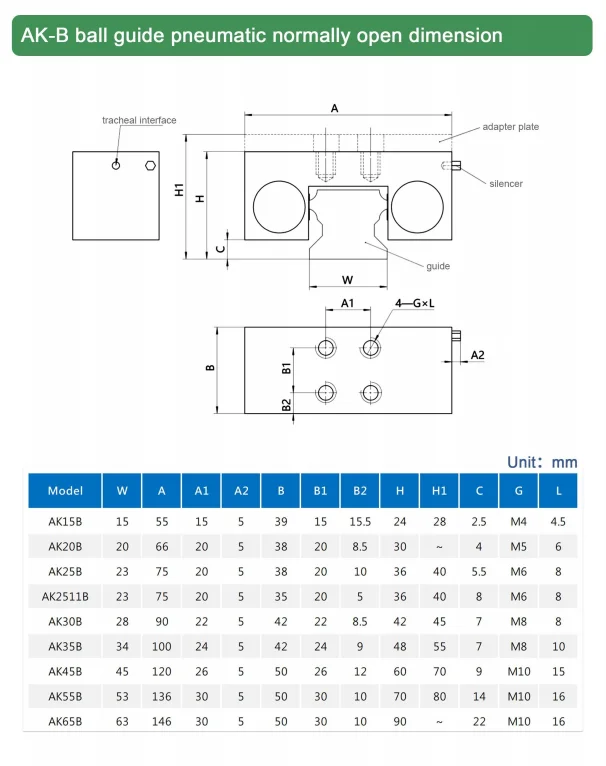

Product Overview Normally Close/open MK MKS 1501 2001 2501 Pneumatic round shaft Rail Gripper Clamp Guideway Lock Brakes Air Clamping element Clamping element is also called the guide rail lock, which is the brake element that directly clamps the linear guide rail or the optical shaft. The utility model comprises a clamping device body, an executing element, a clamping element, a contact element, etc.With the function of preventing vibration and increasing stiffness, the brake type will have the function of emergency braking. Linear Guide Clamping Details ALM clamping element can replace ZIMMER clamping element.The model comparison is as follows Pneumatic normally open for Ball type rail ZIMMER model number Suitable for HIWIN rail AK15B MK1501A HGH15/HGW15/EGH15/EGW15 AK20B MK2001A HGH20/HGW20/EGH20/EGW20 AK25B MK2501A HGH25/HGW25/EGH25/EGW25 Pneumatic normally open for Ball type rail ZIMMER model number Suitable for HIWIN rail AKS15B MKS1501A HGH15/HGW15/EGH15/EGW15 AKS20B MKS2001A HGH20/HGW20/EGH20/EGW20 AKS25B MKS2501A HGH25/HGW25/EGH25/EGW25 Clamping Element dimension Clamping Element Applications

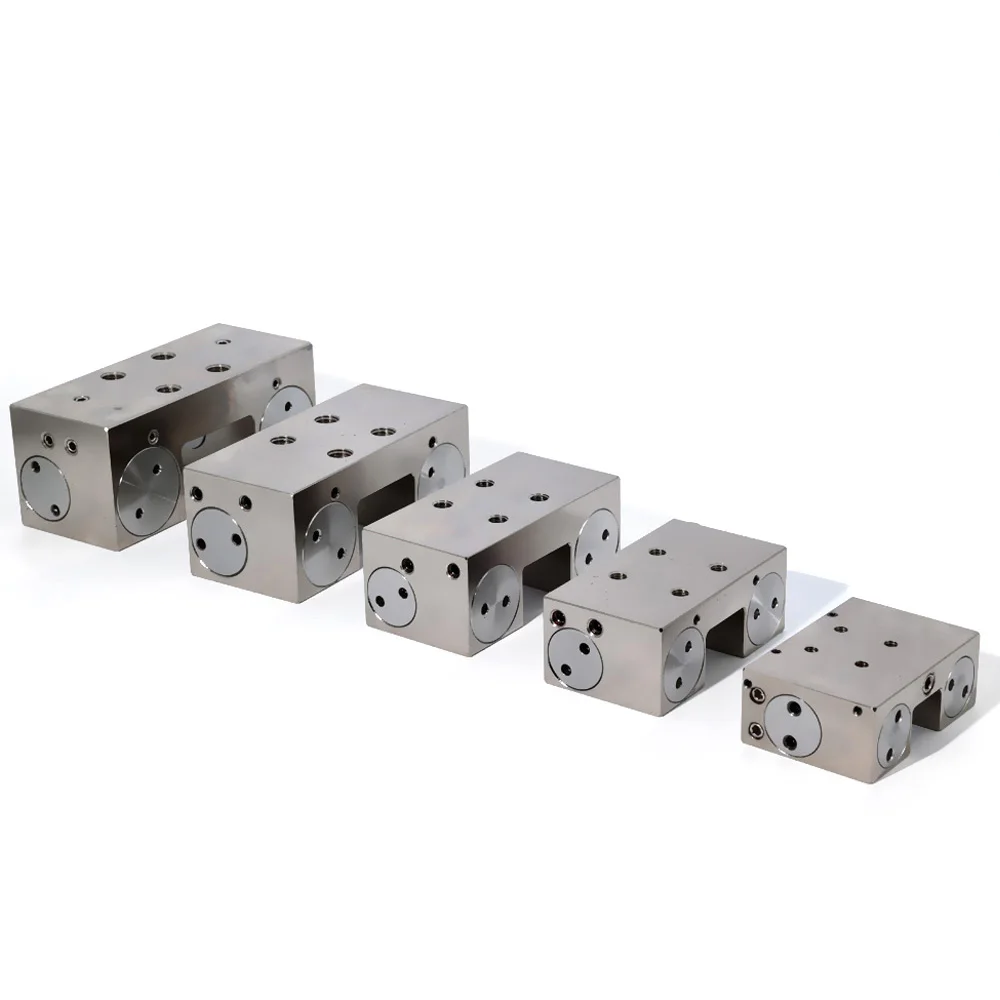

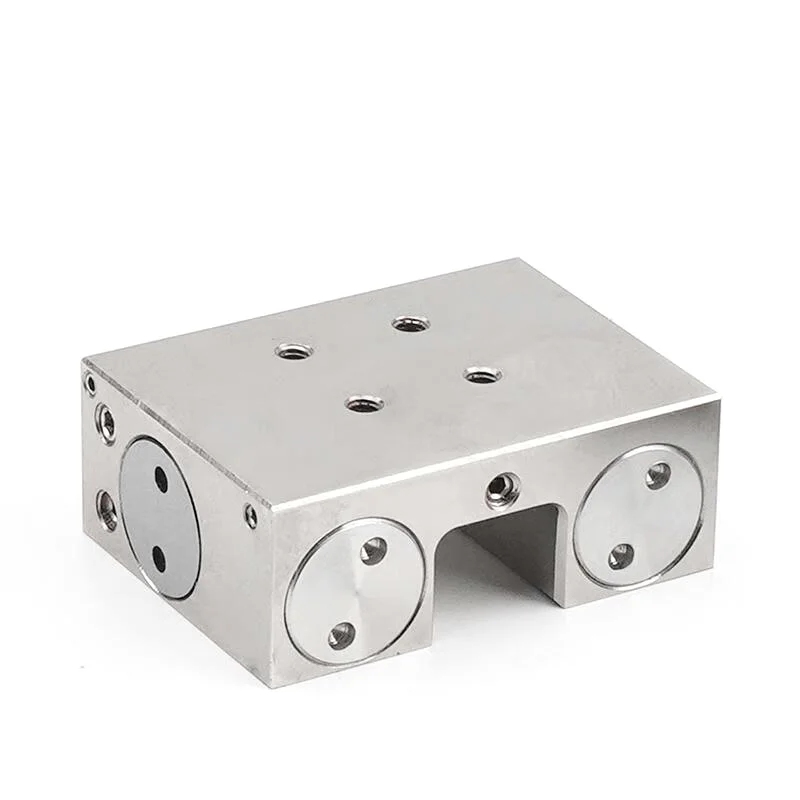

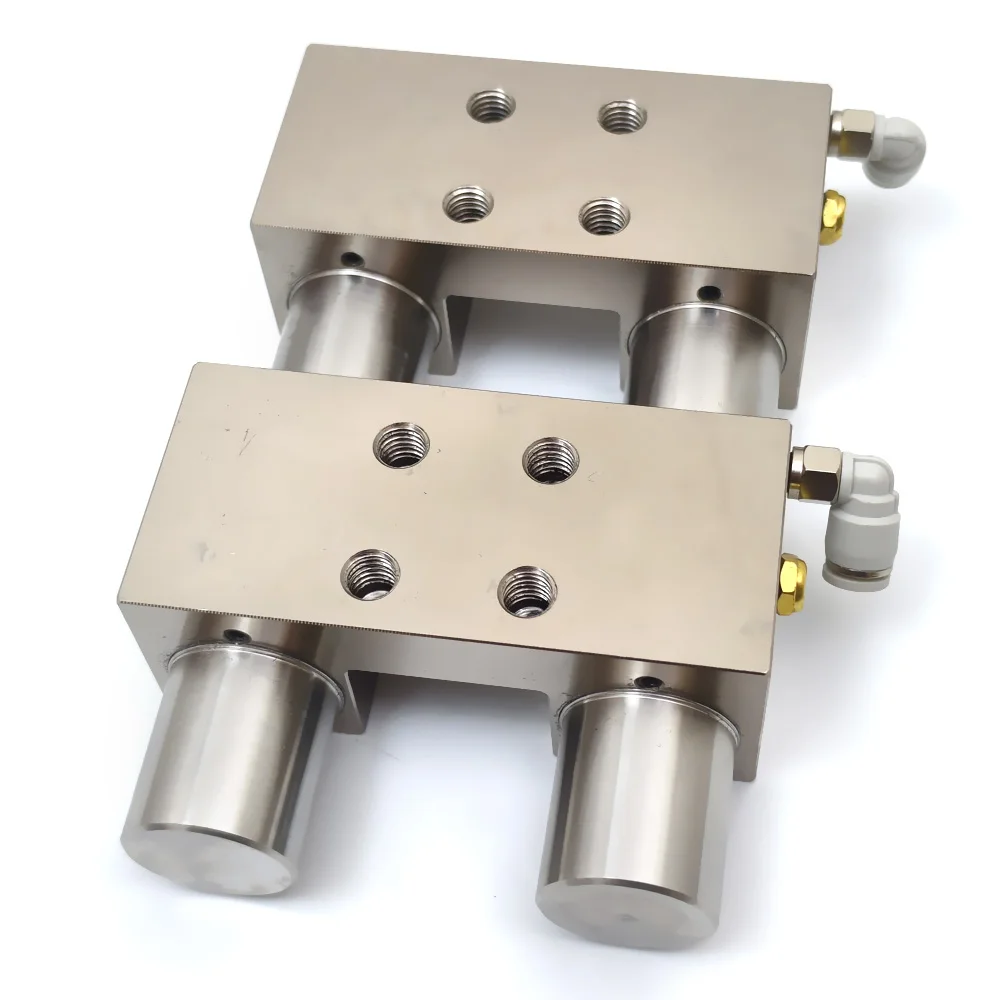

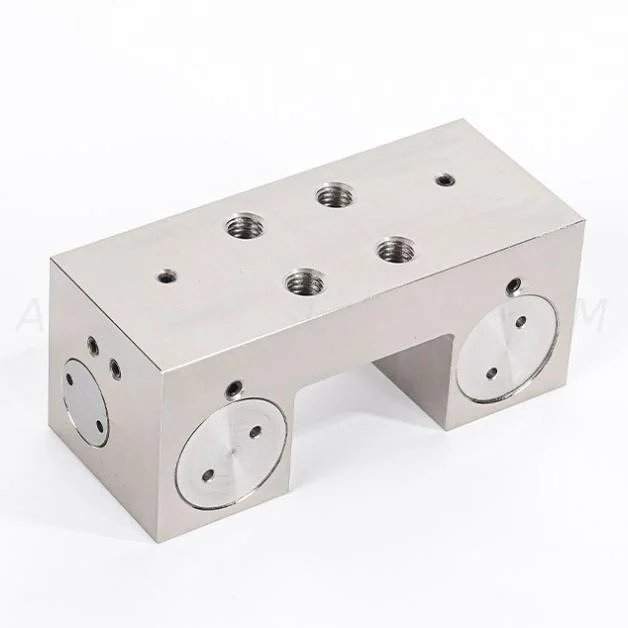

Detail images
