HK1501A HK2002A HK2501A HK3001A HK3501A HK4501A Substitute Goods Linear Guide Clamp HIWIN Linear Slide Manual Clamping Element
Request pricing, MOQ and lead time for this product — we reply within 24 hours.

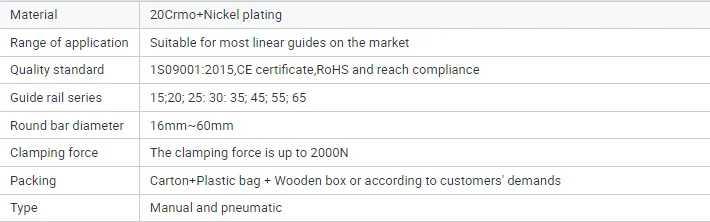

Product parameters
- weight (kg)
- 0.5
- core components
- none
- place of origin
- China
- Lead Time
- 3~5days
- Industry experience
- 20 years
- Customized service
- Available
- MOQ
- 1 Set
- Quality Standard
- ISO9001:2015,CE certificated
- Technical Support
- Available
- Package
- Carton+Plastic bag + Wooden box or according to customers' demands
- Material
- 20Crmo+Nickel plating
- Linear guide series
- 15 ; 20 ; 25 ; 30 ; 35;45; 55; 65
- Quality
- 100% Testing
Description

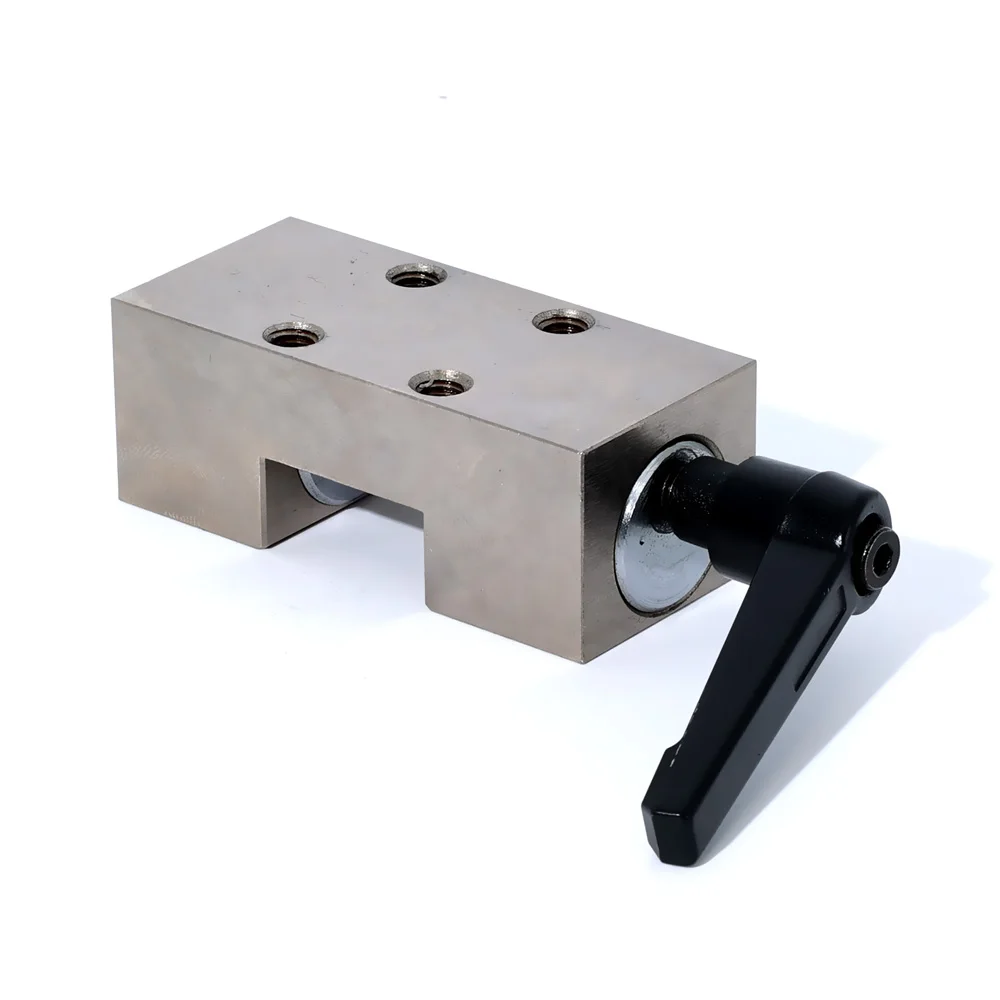

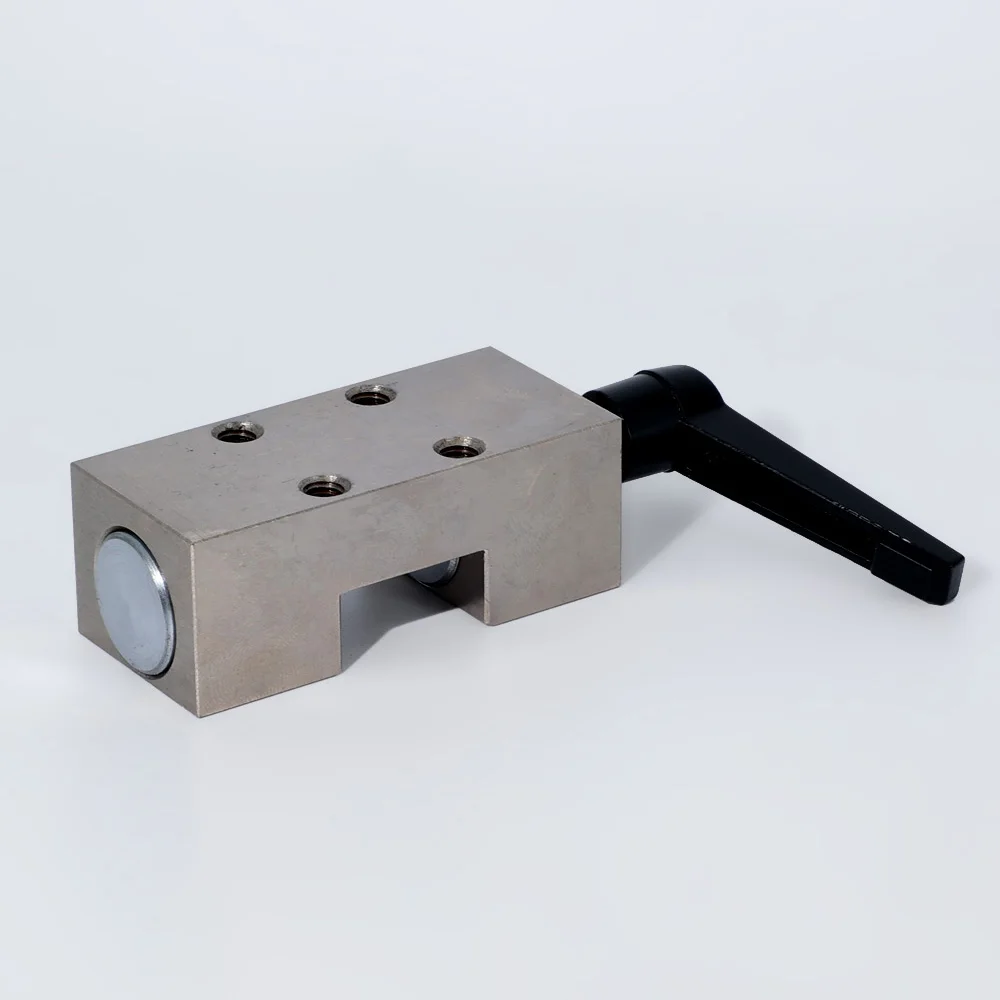

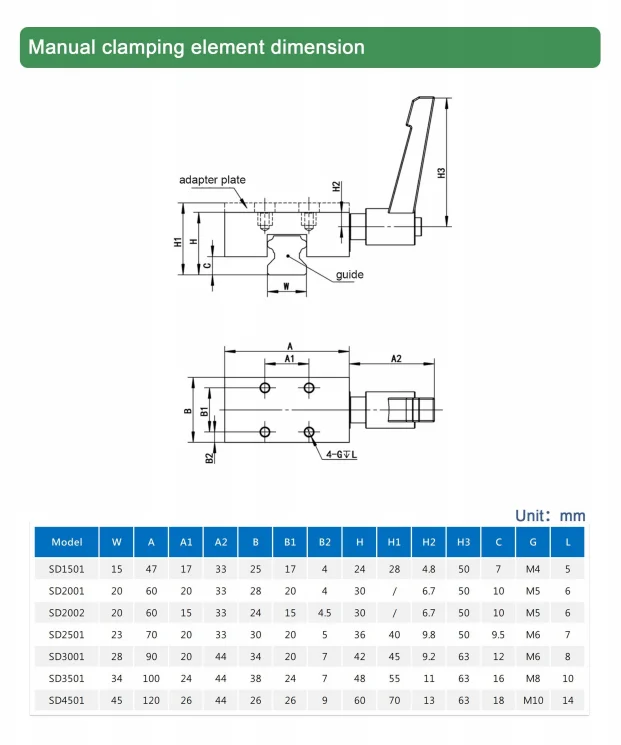

Product Overview HK1501A HK2002A HK2501A HK3001A HK3501A HK4501A Substitute Goods Linear Guide Clamp HIWIN Linear Slide Manual Clamping Element Clamping element is also called the guide rail lock, which is the brake element that directly clamps the linear guide rail or the optical shaft. The utility model comprises a clamping device body, an executing element, a clamping element, a contact element, etc.With the function of preventing vibration and increasing stiffness, the brake type will have the function of emergency braking. Linear Guide Clamping Details ALM clamping element can replace ZIMMER clamping element.The model comparison is as follows Manual ZIMMER model number Suitable for HIWIN rail SD1501 HK1501A HGH15/RGH15 SD2002 HK2002A HGH20/RGH20 SD2501 HK2501A HGH25/RGH25 SD3001 HK3001A HGH30/RGH30 SD3501 HK3501A HGH35/RGH35 SD4501 HK4501A HGH45/RGH45 Clamping Element dimension Clamping Element Applications

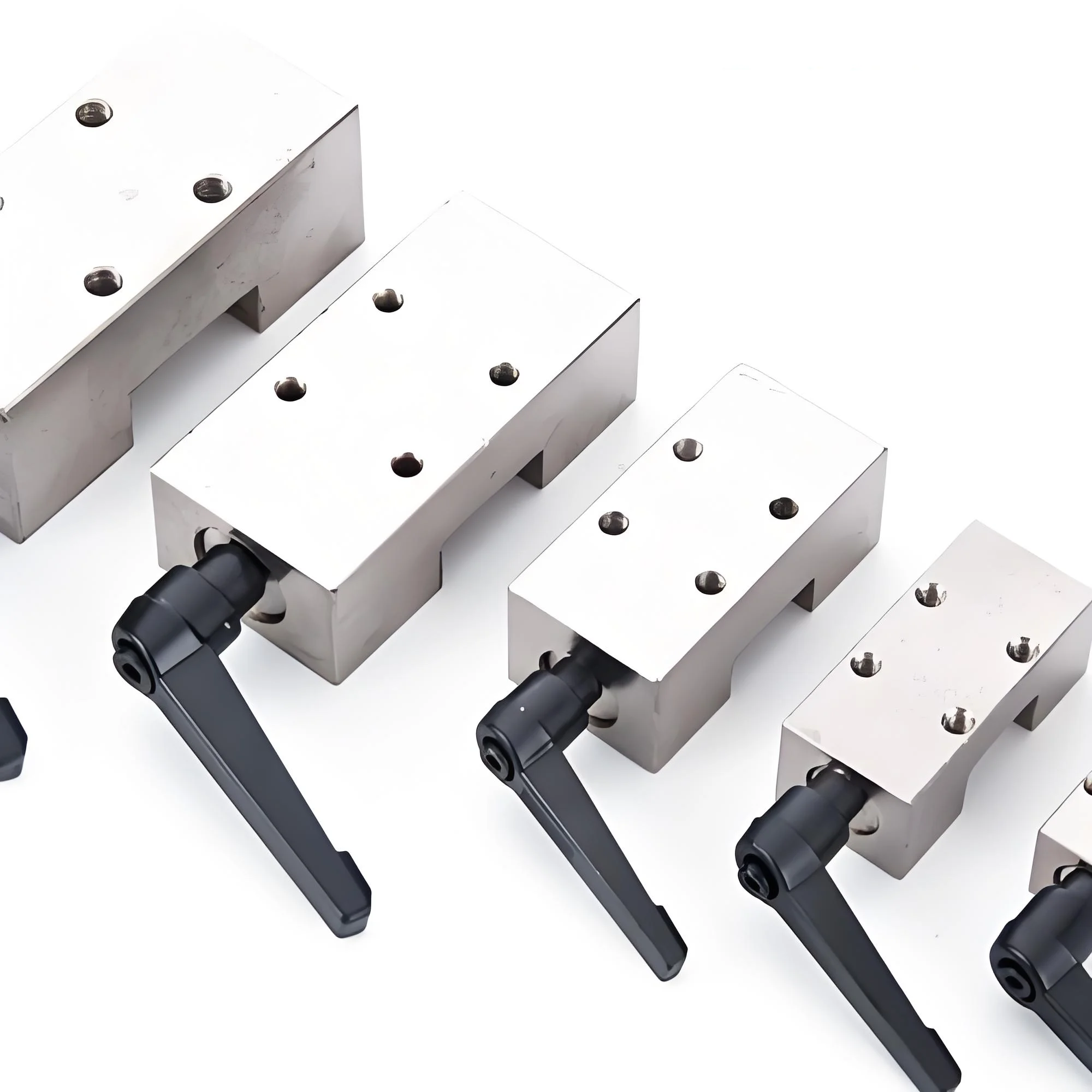

Detail images
