SD Series Linear Guide Rail Clamp Linear Motion Guide Stopper HK1501A HK2002A HK2501A Manual Clamping Element

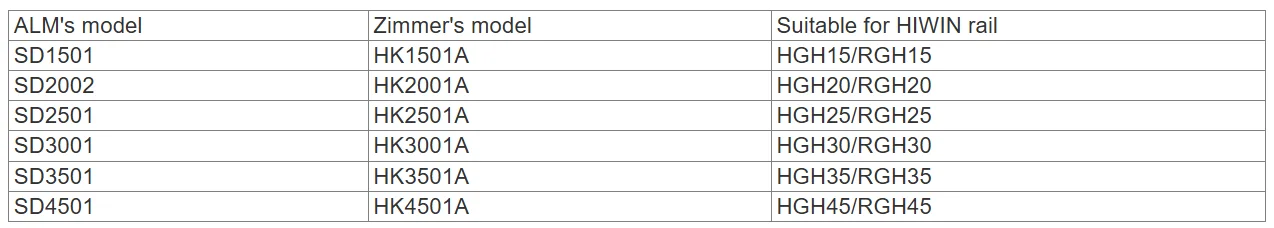

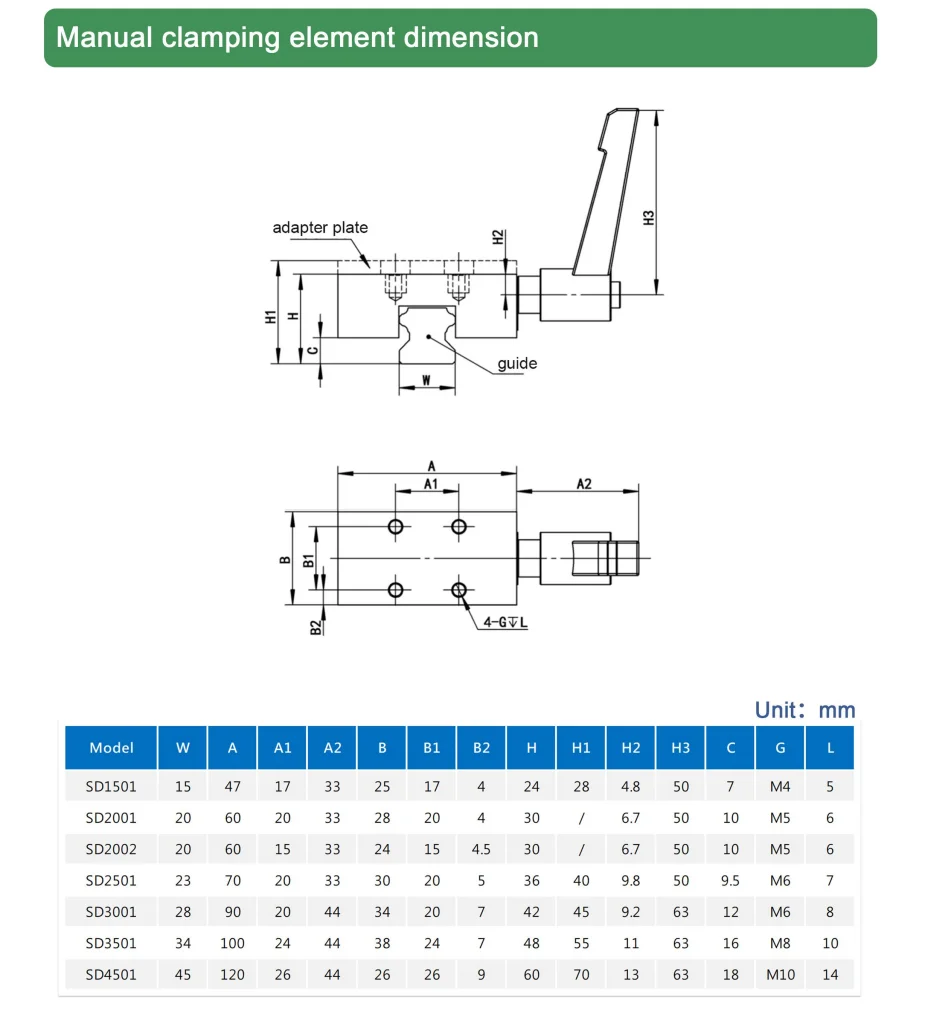

Product Overview SD Series Linear Guide Rail Clamp Linear Motion Guide Stopper HK1501A HK2002A HK2501 Manual Clamping Element Clamping element is also called the guide rail lock, which is the brake element that directly clamps the linear guide rail or the optical shaft. The utility model comprises a clamping device body, an executing element, a clamping element, a contact element, etc.With the function of preventing vibration and increasing stiffness, the brake type will have the function of emergency braking. Linear Guide Clamping Details Material 20Crmo+Nickel plating Range of application Suitable for most linear guides on the market Quality standard 1S09001:2015.CE certificate,RoHS and reach compliance Guide rail series 15:20:25:30:35: 45: 55: 65 Clamping force The clamping force is up to 2000N Packing Carton+Plastic bag + Wooden box or according to customers' demands Type Manual and pneumatic ALM clamping element can replace ZIMMER clamping element.The model comparison is as follows Clamping Element dimension Clamping Element Applications
