AK25R AK30R AK35R Replace CNC MK2501E MK3001E MK3501E Linear Guideway Clamp Running Clamper Stopper Control Block Movement
Request pricing, MOQ and lead time for this product — we reply within 24 hours.
Product parameters
- weight (kg)
- 0.6
- core components
- none
- place of origin
- China
- Lead Time
- 3~5days
- Industry experience
- 20 years
- Customized service
- Available
- Quality Standard
- ISO9001:2015,CE certificated
- Technical Support
- Available
- Package
- Carton+Plastic bag + Wooden box or according to customers' demands
- Material
- 20Crmo+Nickel plating
- Linear guide series
- 15 ; 20 ; 25 ; 30 ; 35;45; 55; 65
- Quality
- 100% Testing
Description

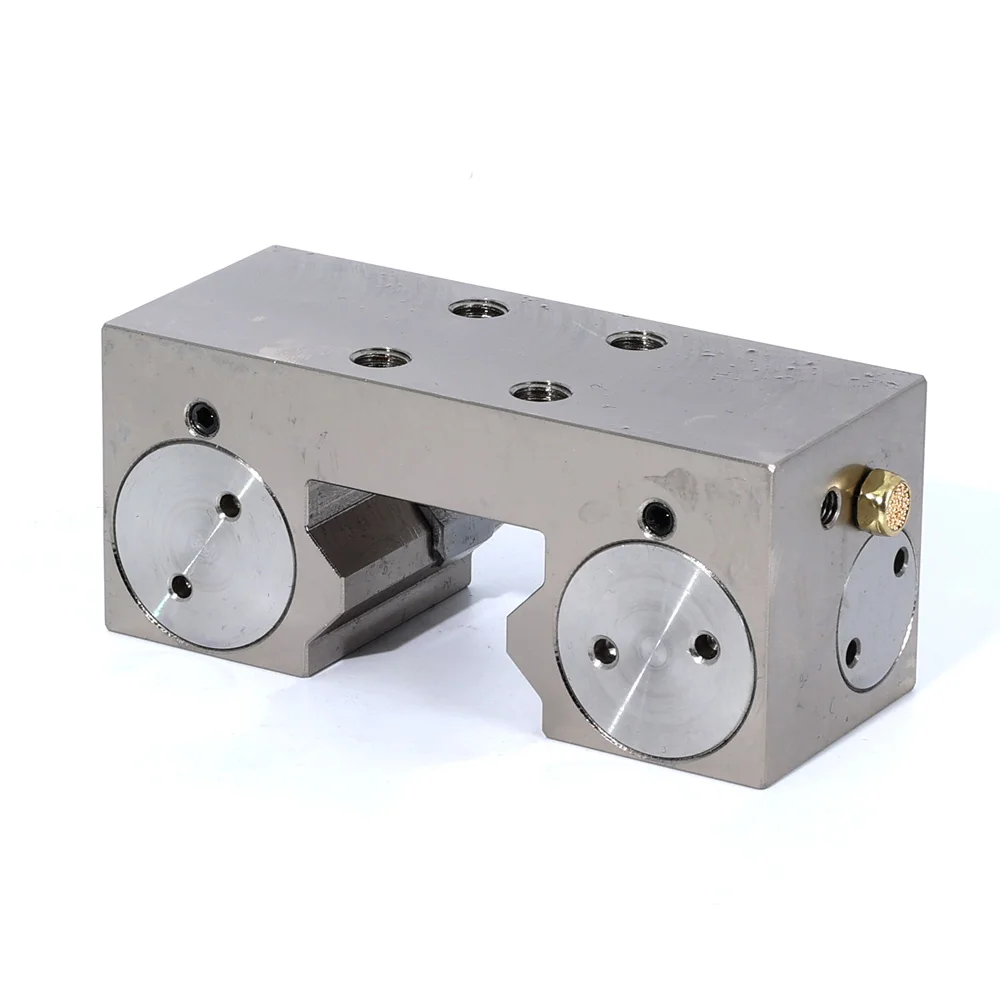

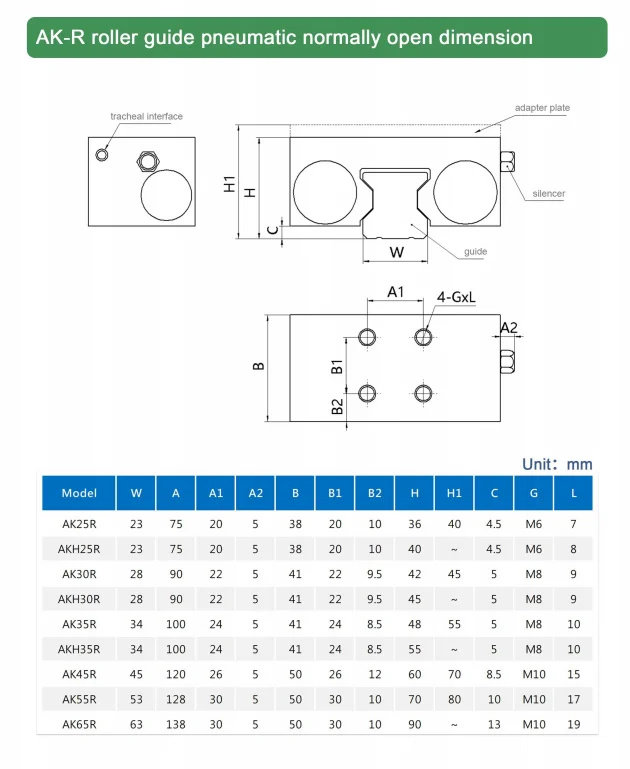

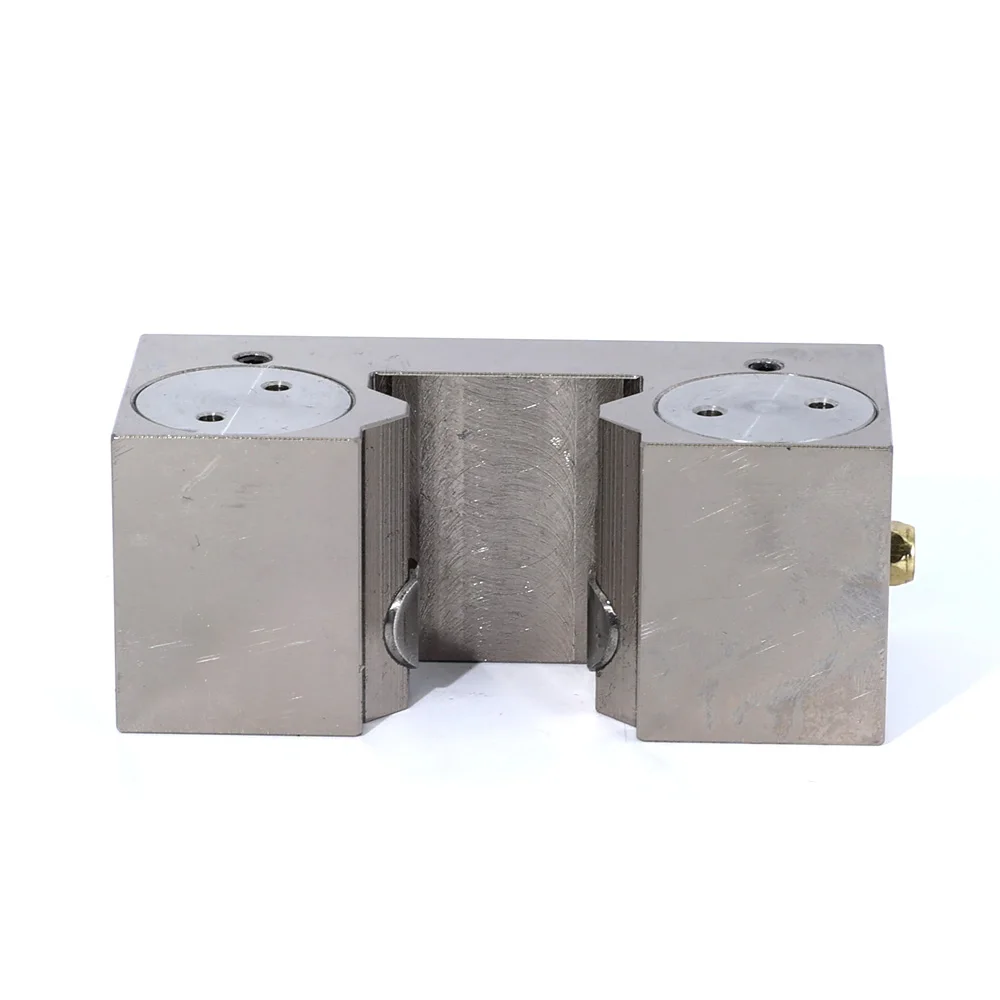

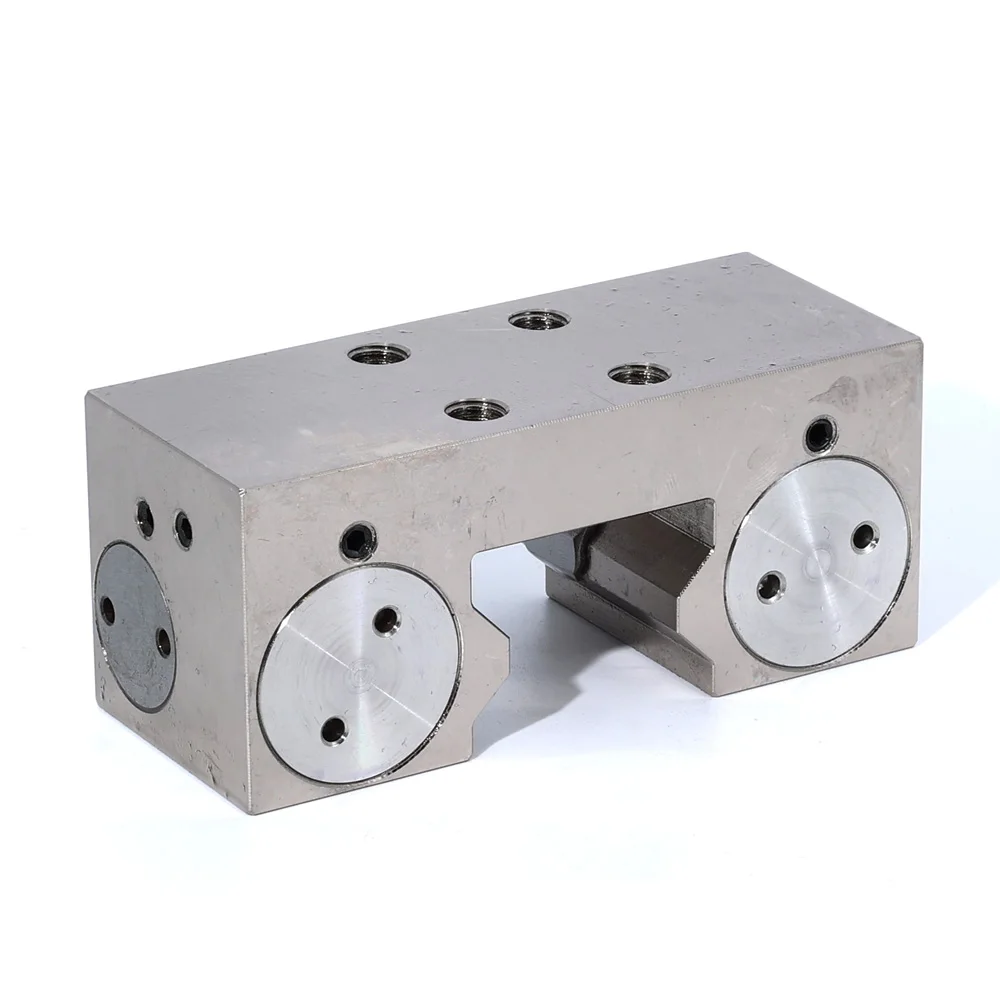

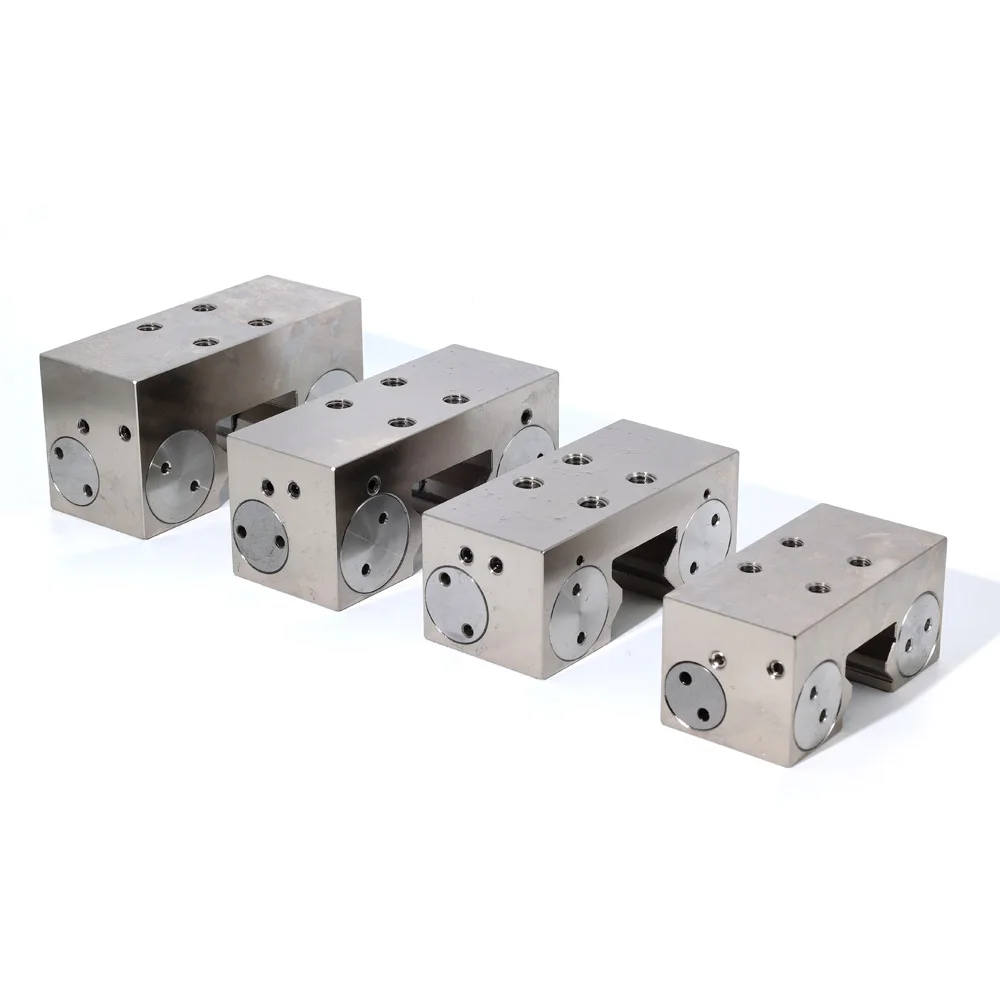

Product Overview AK25R AK30R AK35R Replace CNC MK2501E MK3001E MK3501E Linear Guideway Clamp Running Clamper Stopper Control Block Movement Clamping element is also called the guide rail lock, which is the brake element that directly clamps the linear guide rail or the optical shaft. The utility model comprises a clamping device body, an executing element, a clamping element, a contact element, etc.With the function of preventing vibration and increasing stiffness, the brake type will have the function of emergency braking. ALM clamping element can replace ZIMMER clamping element.The model comparison is as follows Pneumatic normally open ZIMMER model number Suitable for HIWIN rail AK25R MK2501E RGH25/RGW25 AK30R MK3001E RGH30/RGW30 AK35R MK3501E RGH35/RGW35 AK45R MK4501E RGH45/RGW45 AK55R MK5501E RGH55/RGW55 AK65R MK6501E RGH65/RGW65 Clamping Element dimension Clamping Element Applications
Detail images
