TEBAK Manual Tools CA6140 CA6150 Horizontal Ordinary Lathe Universal Lathe Machine with 3 Jaw Chuck Manual Lathe
Request pricing, MOQ and lead time for this product — we reply within 24 hours.
Product parameters
- Max. swing over bed
- mm | 400
- Max. length of workpiece
- mm | 1000
- Max. Swing over carriage
- mm | 210
- Distance from spindle center to bed plane guide rail
- mm | 205
- Spindle Bore
- mm | 52
- Spindle taper
- Mohs 6 / A6
- Kinds of spindle speed
- - | Forward:24; Reverse:12
- Spindle speed (Forward)
- r/min | 10-1400
- Spindle speed (Reverse)
- r/min | 12.5-1400
- No. of longitudinal feed
- kind | 64
- Longitudinal feed range - normal
- mm/rev | 0.08-1.59
- Longitudinal feed range - fine
- mm/rev | 0.028-0.054
- Longitudinal feed rang - coarse
- mm/rev | 1.71-6.33
- No. of cross traverse feed
- kind | 64
- cross traverse feed - normal
- mm/rev | 0.04-0.79
- cross traverse feed - fine
- mm/rev | 0.014-0.027
- cross traverse feed - coarse
- mm/rev | 0.86-3.16
- Longitudinal rapid movement speed of tool post
- m/min | 4
- Rapid traverse speed of tool post
- m/min | 2
- Max. stroke of upper tool holder
- mm | 140
- Max. horizontal stroke of tool holder
- mm | 320
- Turret turntable rotation angle
- - | ±90°
- Size of tool shank
- mm | 25×25
- Vertical distance between center line of spindle and button of tool
- mm | 26
- Tailstock spindle diameter
- mm | 75
- Taper of tailstock spindle center hole
- - | Mohs 5
- Max. stroke of tailstock spindle
- mm | 150
Description
TEBAK manual tools CA6140 CA6150 horizontal ordinary lathe universal lathe machine with 3 jaw chuck manual lathe
Product Description
Product Description
Max. swing over bed
mm
400
Max. length of workpiece
mm
1000
Max. Swing over carriage
mm
210
Distance from spindle center to bed plane guide rail
mm
205
Spindle Bore
mm
52
Spindle taper
Mohs 6 / A6
Kinds of spindle speed
-
Forward:24; Reverse:12
Spindle speed (Forward)
r/min
10-1400
Spindle speed (Reverse)
r/min
12.5-1400
No. of longitudinal feed
kind
64
Longitudinal feed range - normal
mm/rev
0.08-1.59
Longitudinal feed range - fine
mm/rev
0.028-0.054
Longitudinal feed rang - coarse
mm/rev
1.71-6.33
No. of cross traverse feed
kind
64
cross traverse feed - normal
mm/rev
0.04-0.79
cross traverse feed - fine
mm/rev
0.014-0.027
cross traverse feed - coarse
mm/rev
0.86-3.16
Longitudinal rapid movement speed of tool post
m/min
4
Rapid traverse speed of tool post
m/min
2
Max. stroke of upper tool holder
mm
140
Max. horizontal stroke of tool holder
mm
320
Turret turntable rotation angle
-
±90°
Size of tool shank
mm
25×25
Vertical distance between center line of spindle and button of tool
mm
26
Tailstock spindle diameter
mm
75
Taper of tailstock spindle center hole
-
Mohs 5
Max. stroke of tailstock spindle
mm
150
Packing & Delivery
Packing & Delivery
Company Profile
Company Profile
Hengshui Mengshang Trading Co., Ltd. is a main professional supplier in CNC Carbide inserts, Turning tools and Milling tools, Our brand is TEBAK, Design and Sales. We insists the principles of "High quality, Competitive price and Excellent service."We are leading OED&ODM manufacture many years of experience in this filed. TEBAK have various kinds of productc and they are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East Asia and Africa. The quality control standards are based on ISO9001 certifications. TEBAK relies on advanced automatic machining center and complete testing testing method, control all aspects of production and operation according to the standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
FAQ

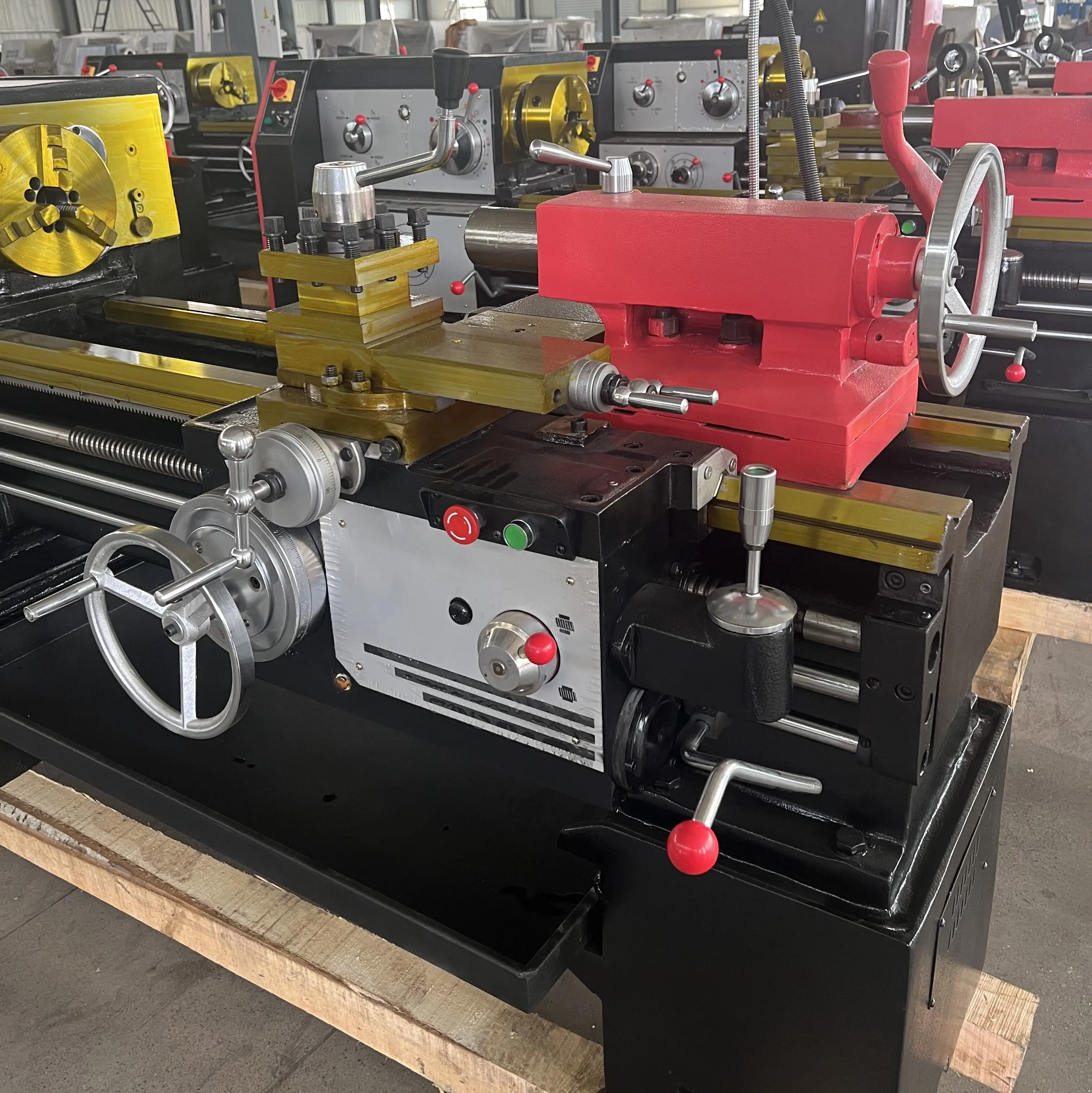

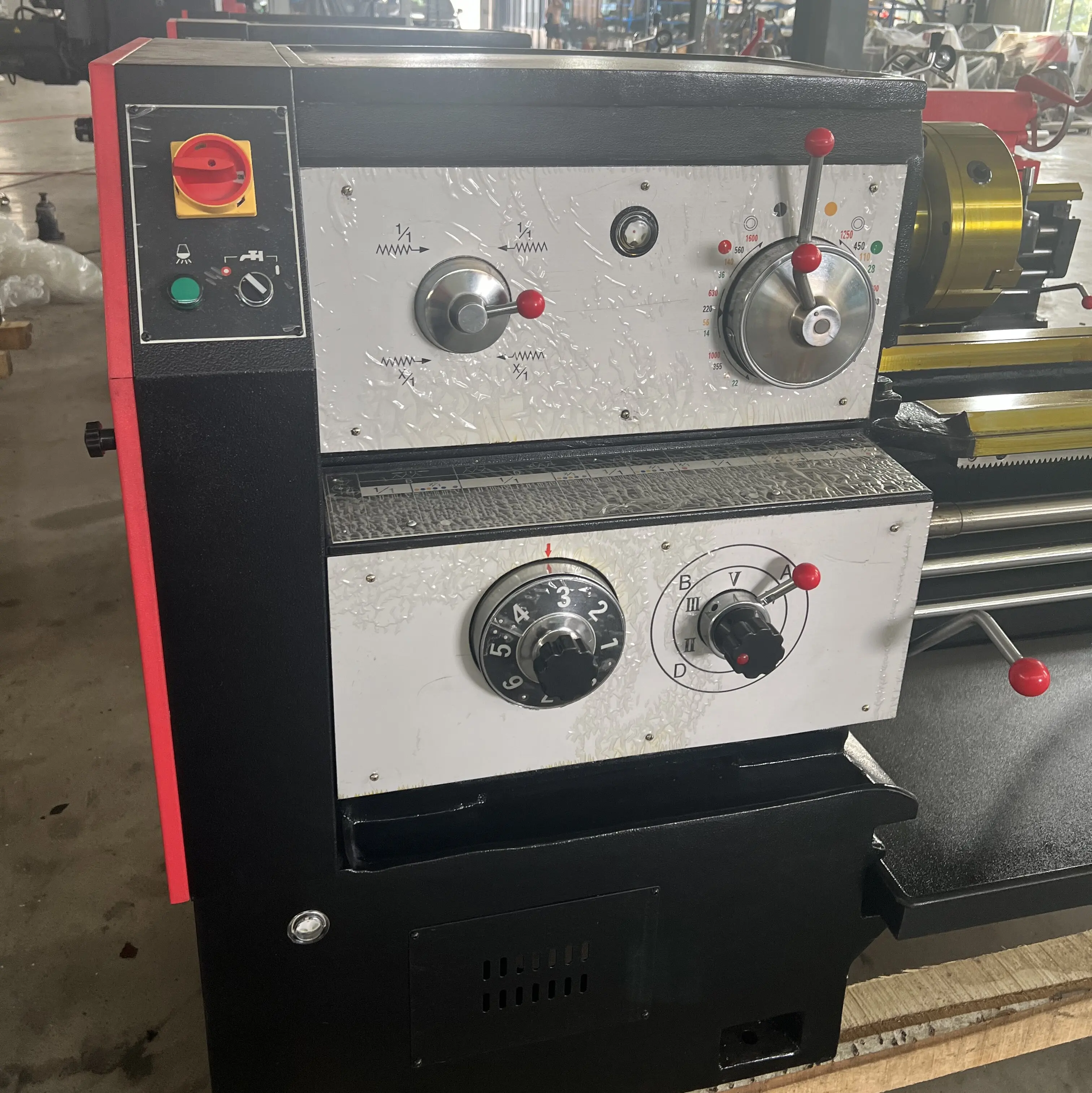

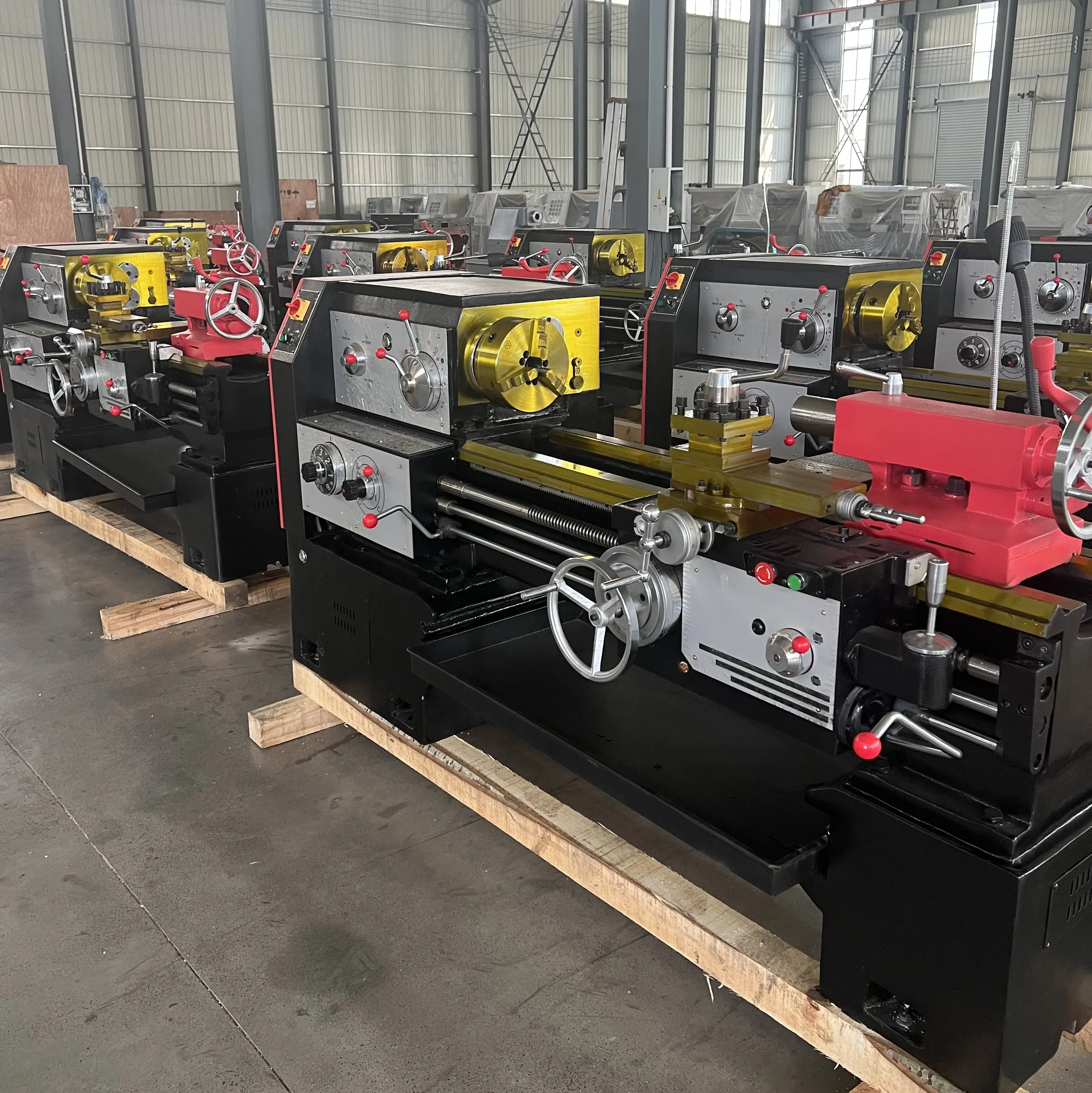

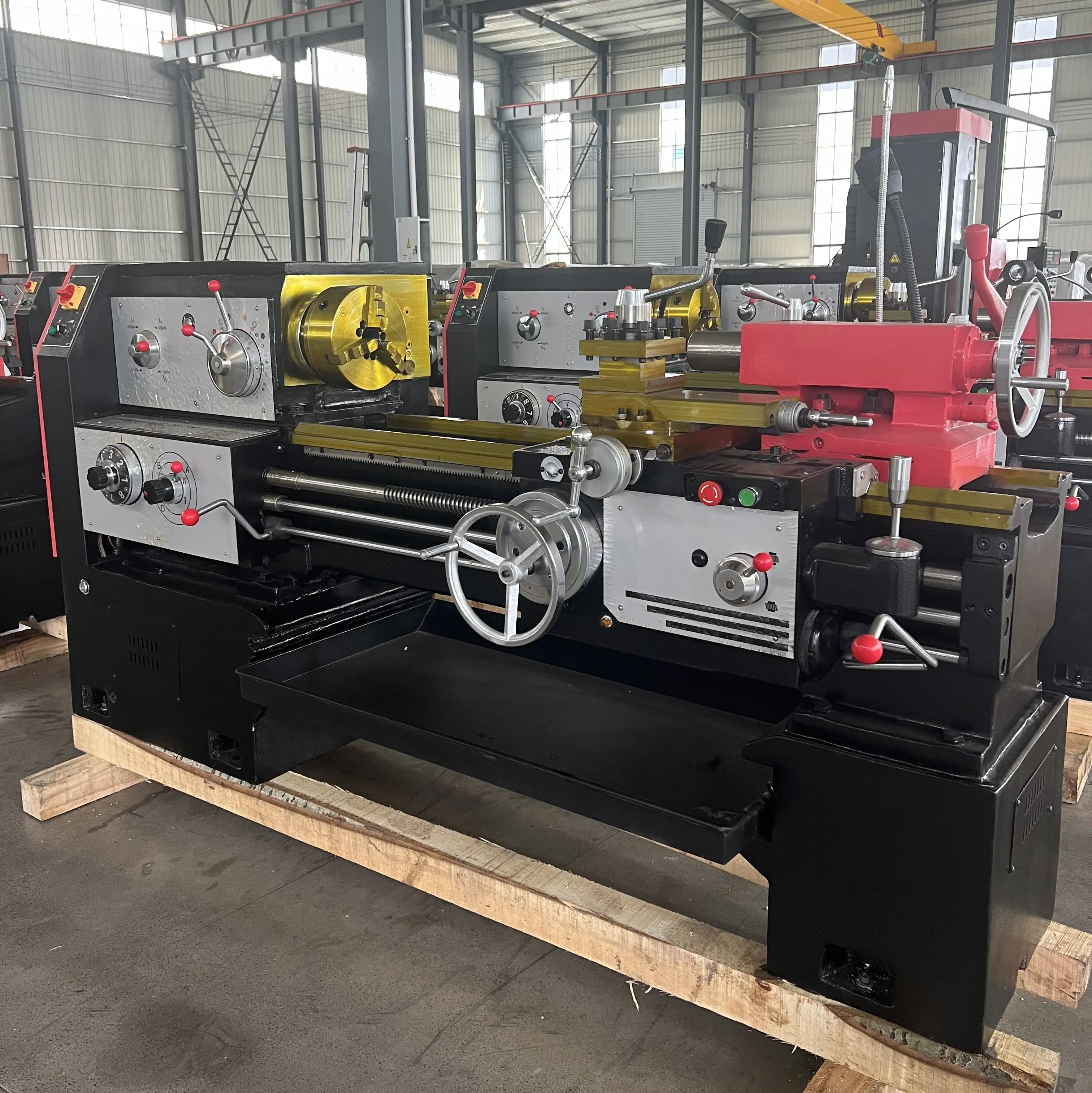

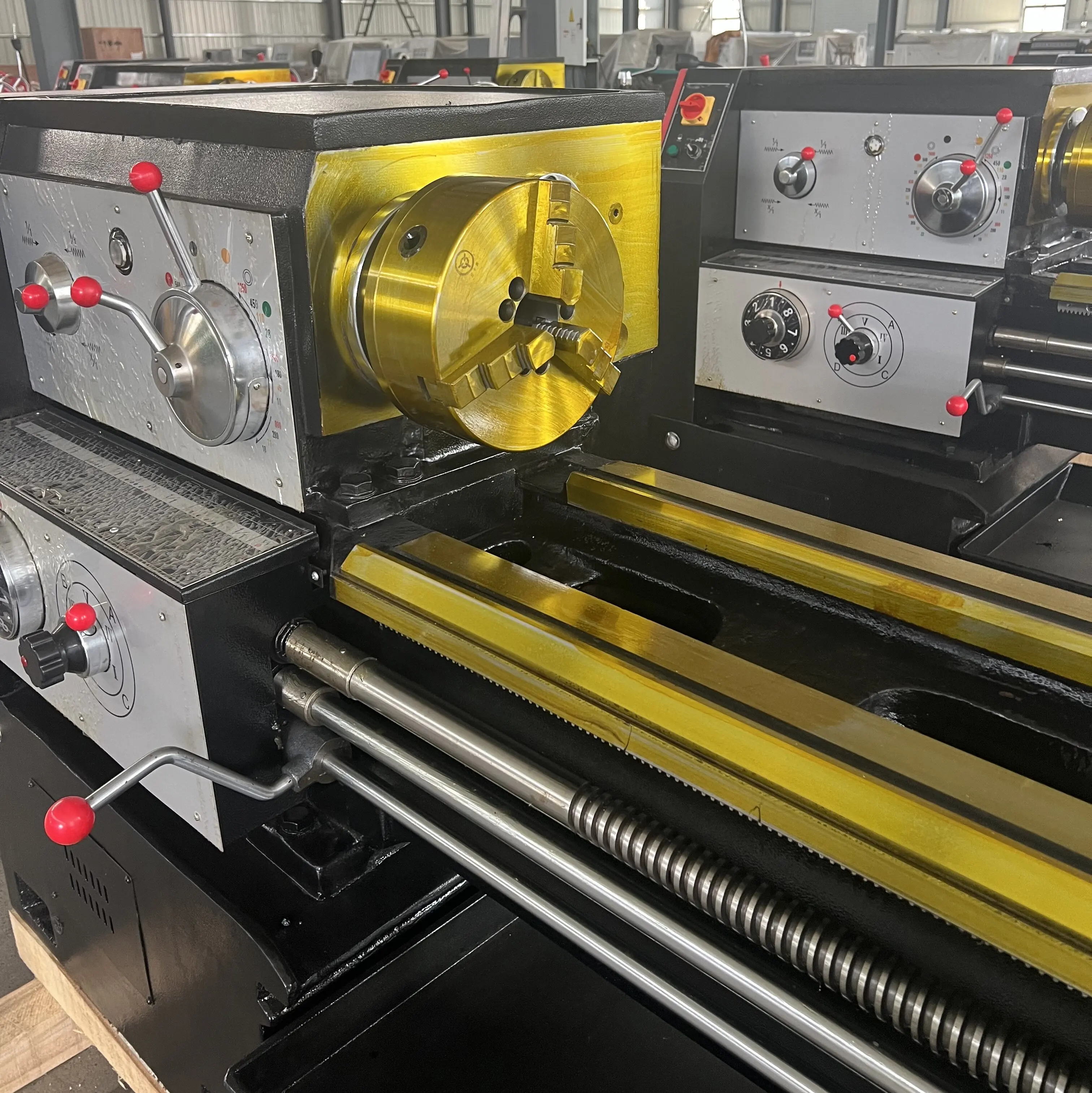

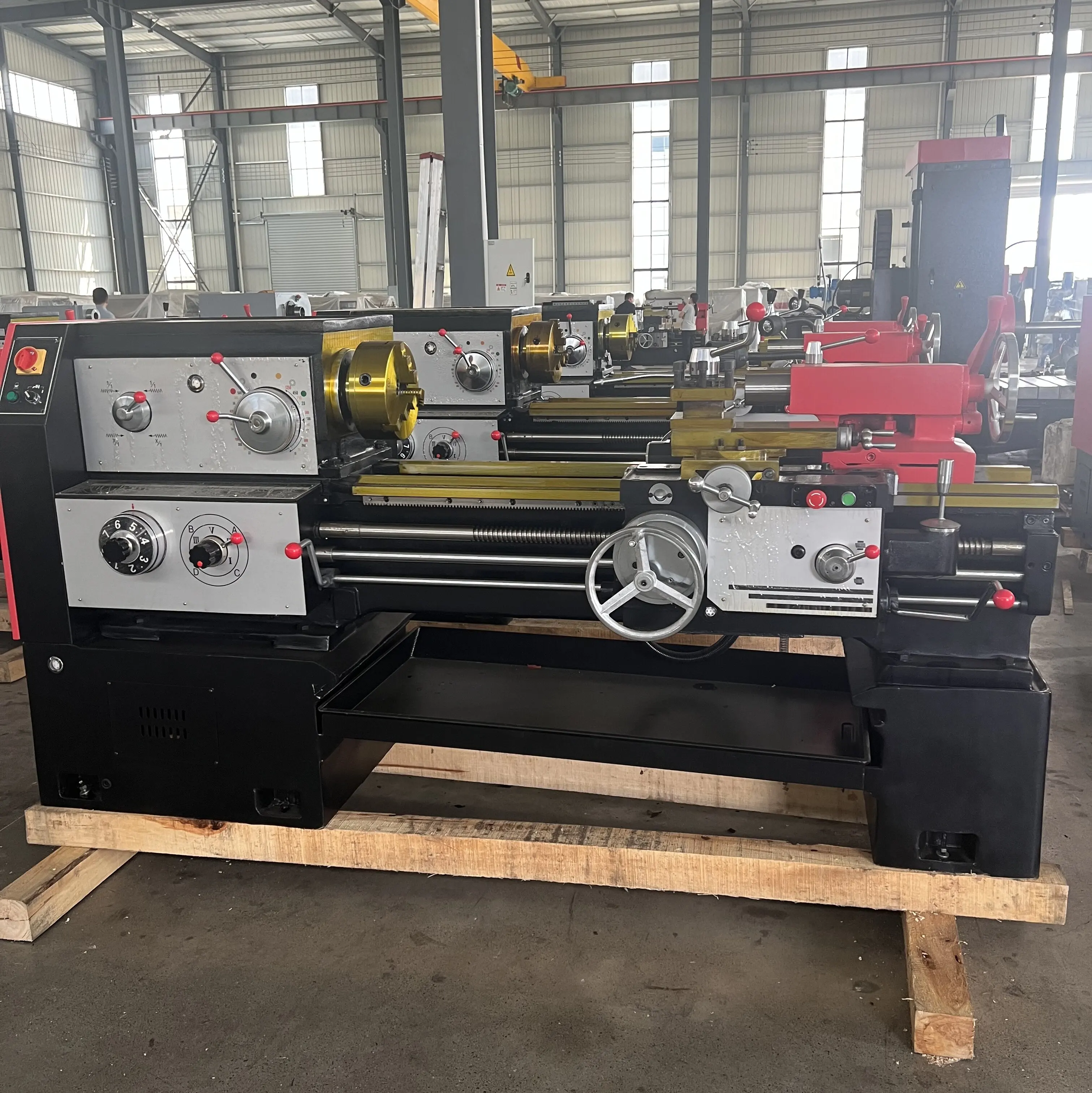

Detail images
