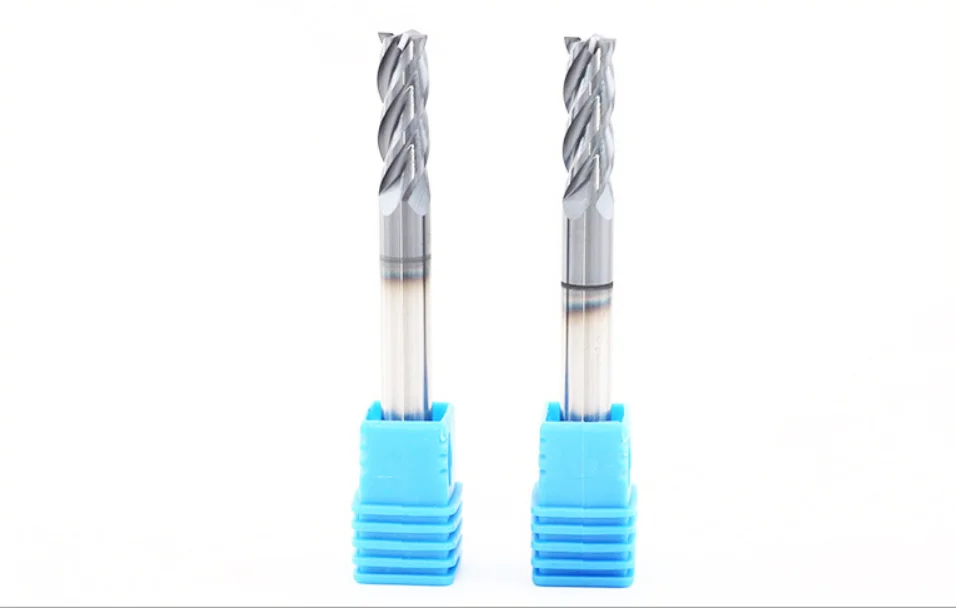

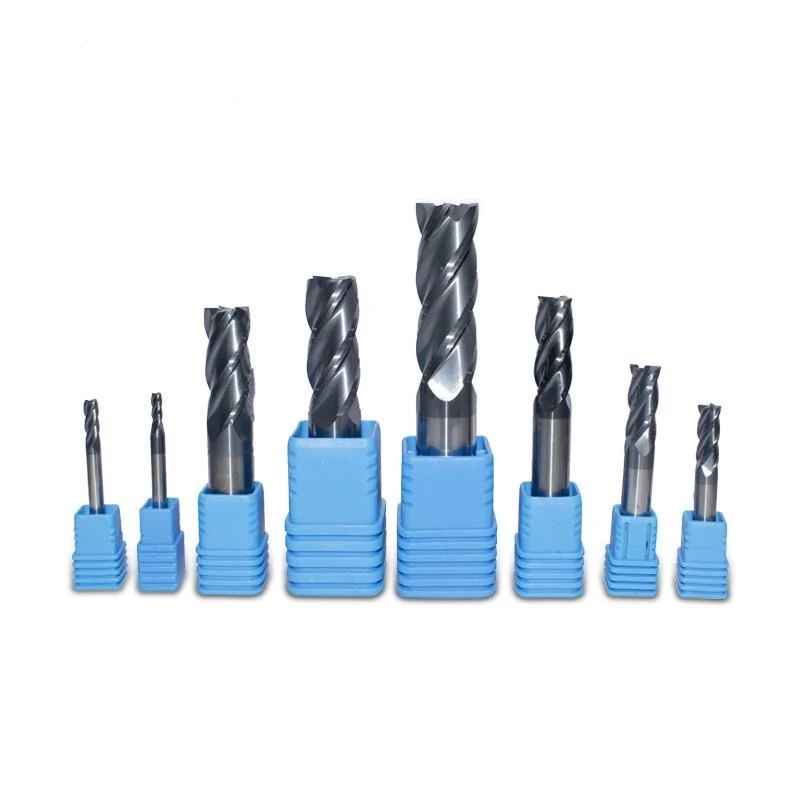

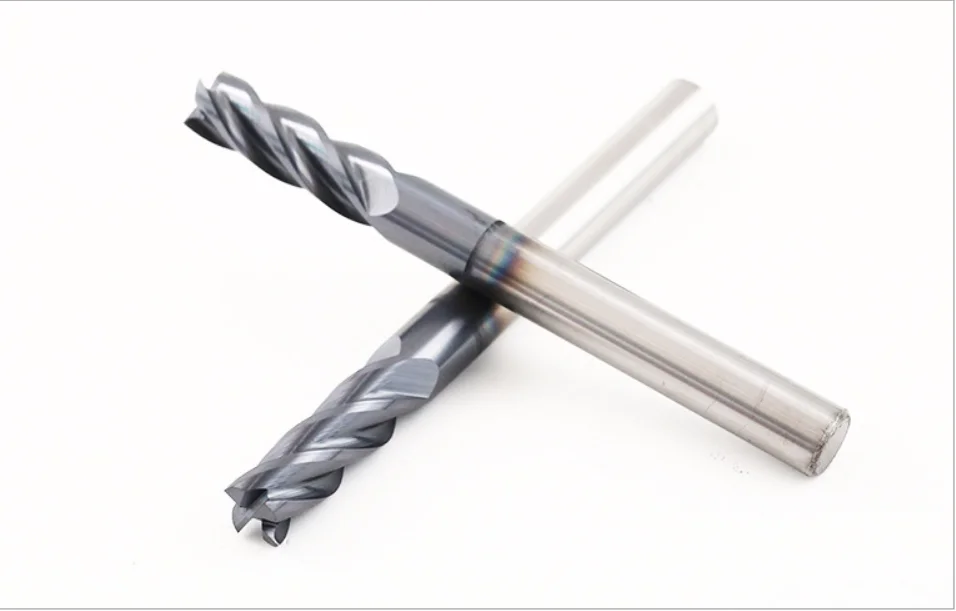

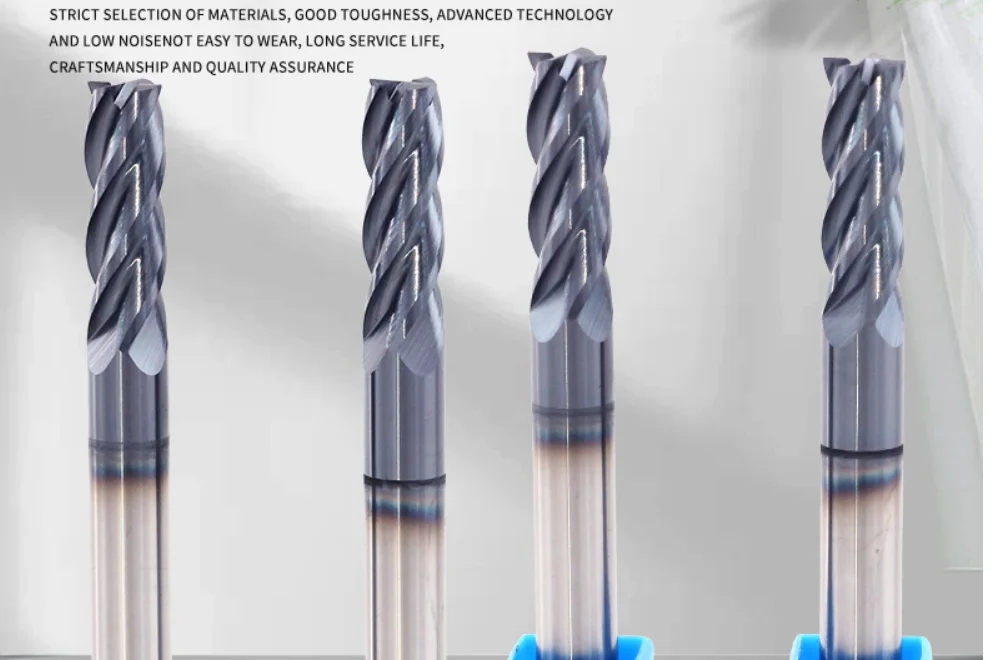

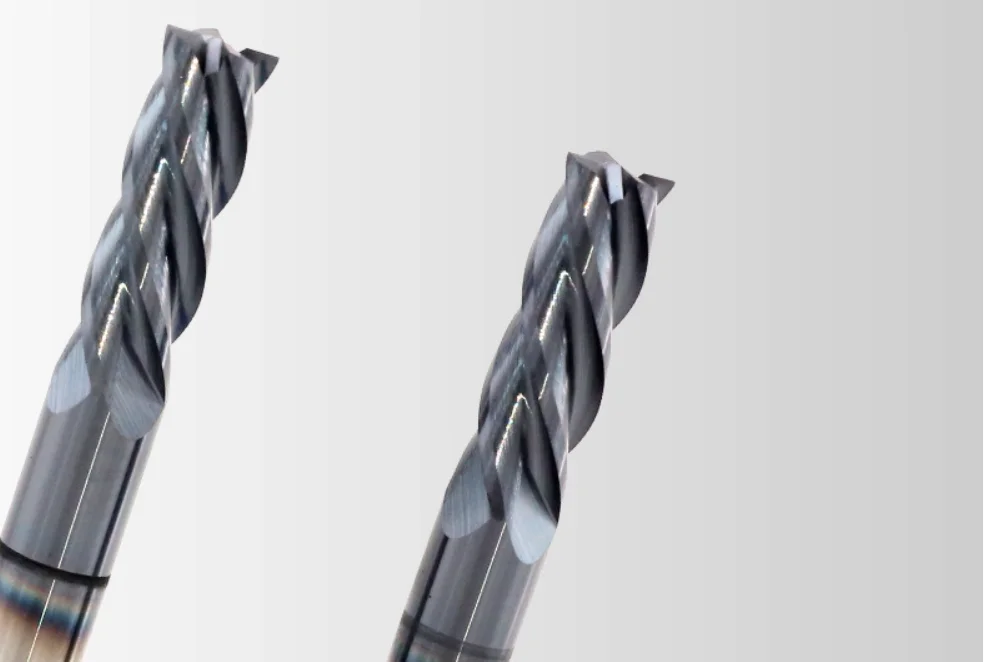

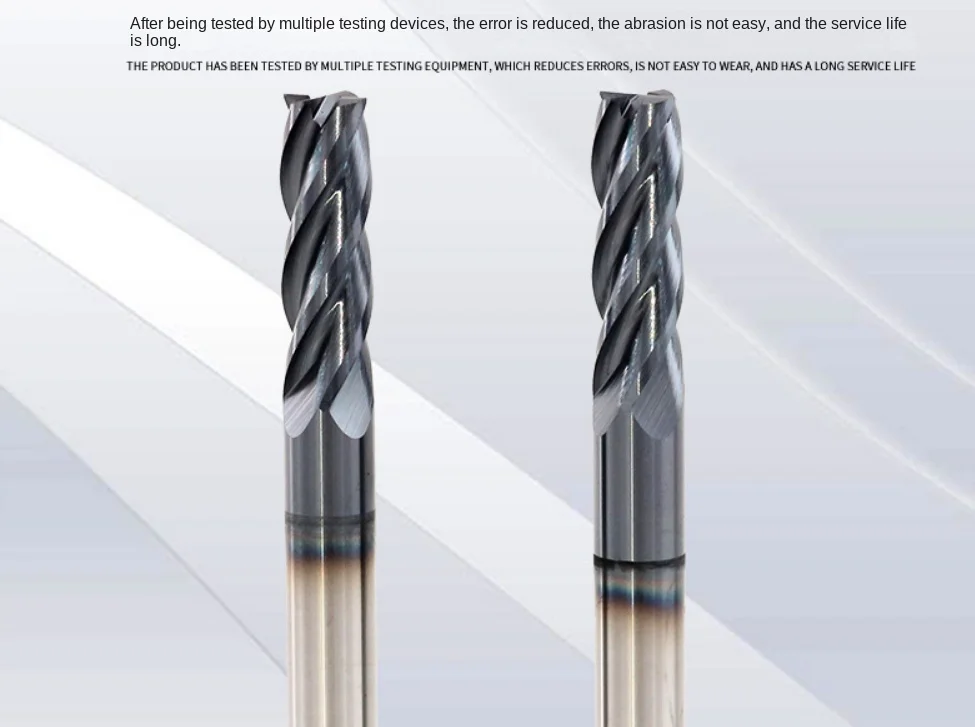

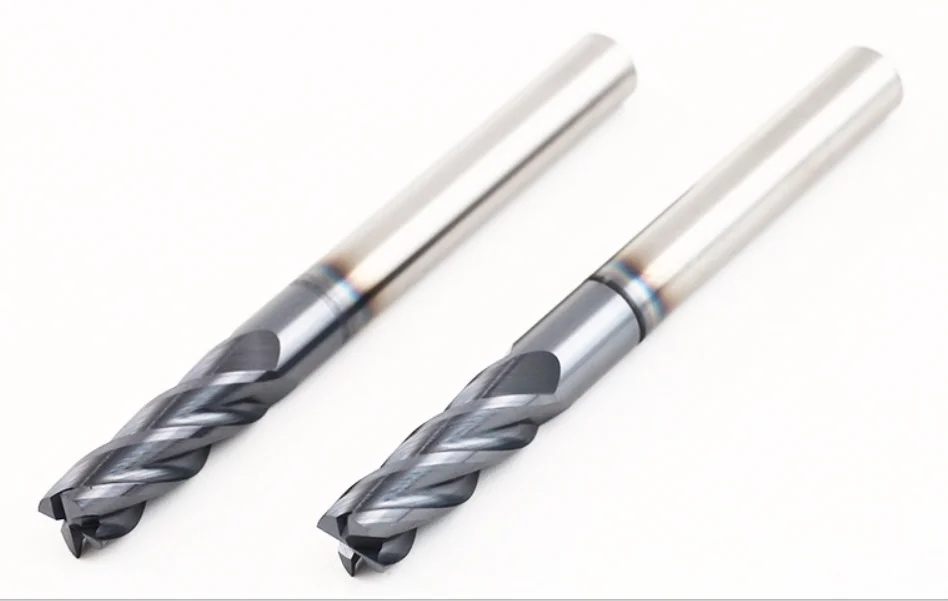

TEBAK Cemented Tungsten Carbide Indexable Cutters Flatten 4 Flute Hrc45/Hrc55/Hrc65 Square Solid End Mill

Product Description

TEBAK Cemented Tungsten Carbide Indexable Cutters Flatten 4 Flute Hrc45/Hrc55/Hrc65 Square Solid End Mill

Specification

Carbide Material Introduction

ENDMILL GRADE

Material Grade

Grain

Introduction

Application

HRC45 carbide material

YL10.2

0.6μm

YL10.2 is tungsten carbide powder with 89.7% WC and 10% cobalt powder, and has high toughness and wear resistance.

Suitable for General Steel

HRC55 carbide material

K30

0.5μm

K30 is ultra fine grain and containes Ni and Cr element, which provides high strength and good toughness.

General Steel, Stainless Steel, cast iron

HRC60 carbide material

WF25

0.4μm

WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance.

High Hard Material, steel, cast iron, etc

HRC65 carbide material

GU25UF

0.4μm

GU25UF is 0.4micron powder with 12% cobalt and has very high toughness and wear resistance.It is the most suitable for hard

cutting.

Titanium Alloy, High-temperature Alloy, Harden material, etc

Stainless Steel material

WF25

0.4μm

WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance.

stainless steel

Coating Introduction

ENDMILL GRADE

Coating Name

Color

Hv

μm

Friction

The Max ℃

HRC45 coating

AlTiN

black

3300

1-4

0.7

850℃

HRC55 coating

TiSiAlN

bronzed

3400

1-4

0.7

900℃

HRC60 coating

AlCrSiN

black

4000

1-7

0.35

1100℃

HRC65 coating

nACo 3 Blue

blue

4500

1-7

0.45

1200℃

Stainless Steel coating

nACo 3 Gold

golden

4500

1-7

0.55

1200℃

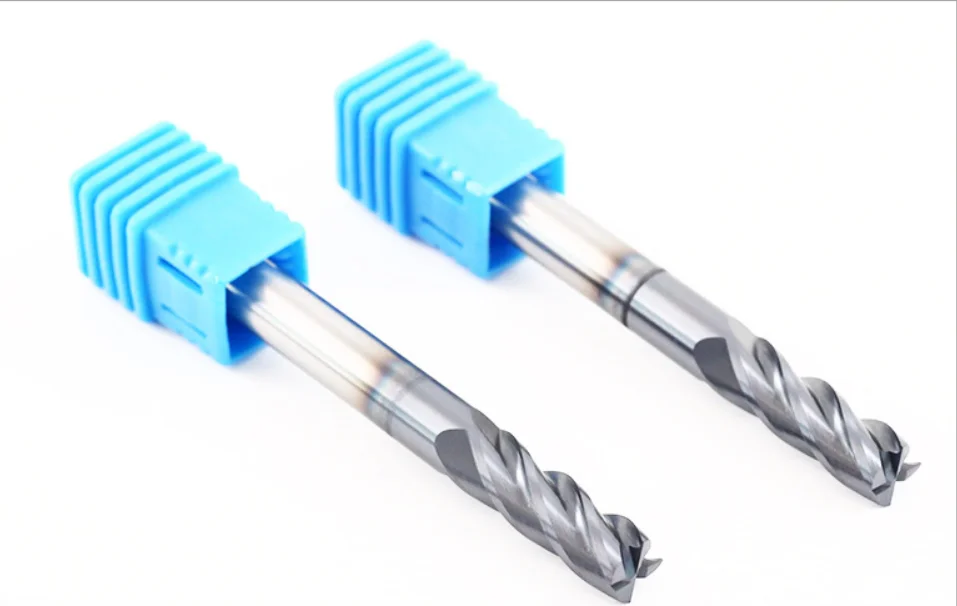

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Hengshui Mengshang Trading Co., Ltd. is a main professional supplier in CNC Carbide inserts, Turning tools and Milling tools, Our brand is TEBAK, Design and Sales. We insists the principles of "High quality, Competitive price and Excellent service."We are leading OED&ODM manufacture many years of experience in this filed. TEBAK have various kinds of productc and they are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East Asia and Africa. The quality control standards are based on ISO9001 certifications. TEBAK relies on advanced automatic machining center and complete testing testing method, control all aspects of production and operation according to the standa
