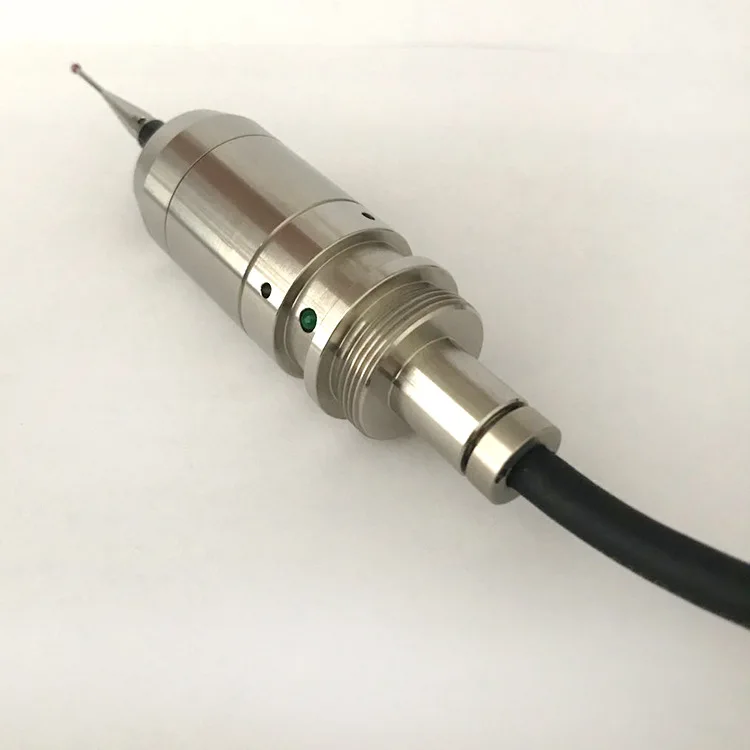

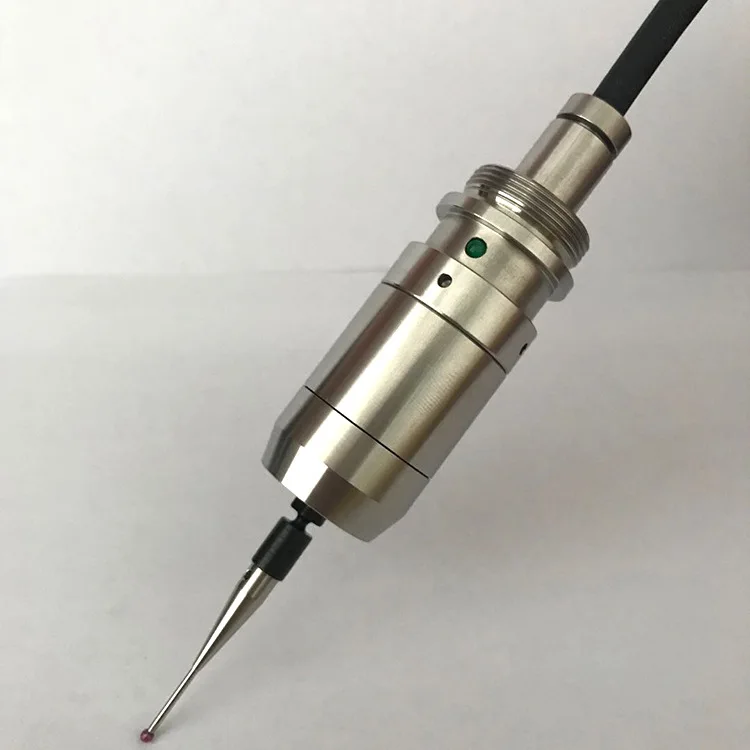

High Precision Machine Probe Equipment Touch Measuring Probe Wiring CNC Lathe Touch Off Probe With Tool Holder and Software

Product Description

High Precision Machine Probe Equipment Touch Measuring Probe Wiring CNC Lathe Touch Off Probe With Tool Holder And Software

Specification

technical parameters

HO-OP25

Unidirectional repeatability

2σ 1μm

Recommended touch speed

30mm/min-120mm/min

Trigger direction

±X,±Y,Z

Maximum pass trip

2.5mm

Power source

24V

Class of protection

IP67

Temperature range

Probe length (without needle)

material

SUS303

Mounting shank diameter

Φ12mm

Probe diameter

Φ25mm

Probe length (without needle)

80mm

Packing & Delivery

Company Profile

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free，But for Shipping will be paid by customer.

Q: What is your terms of payment ?

A:

Payment<=3000USD, 100% in advance.

Payment>=3000USD, 30% T/T in advance ,balance before shippment.

If have any questions , please contact with us directly !
