Product Introduction

3D- Taster

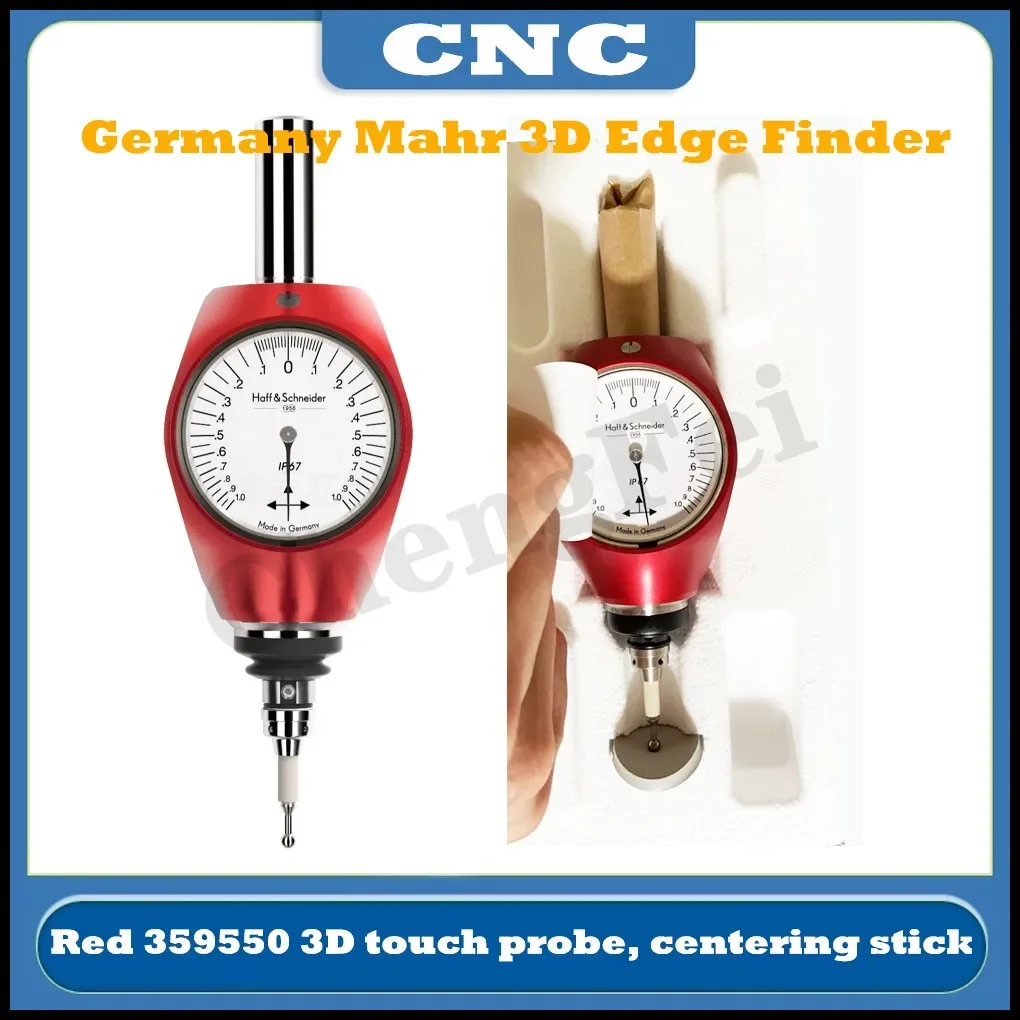

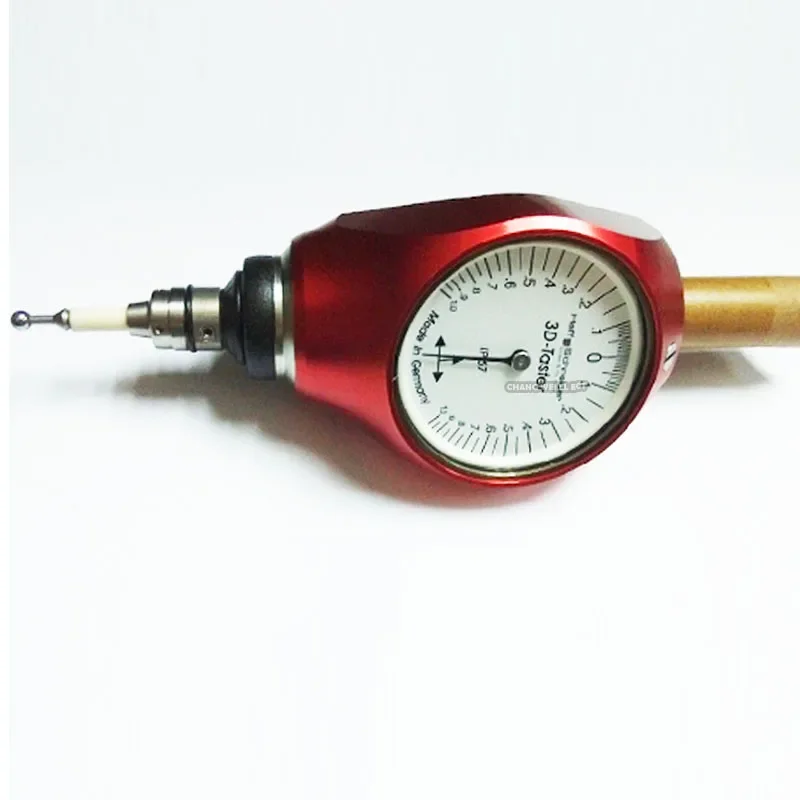

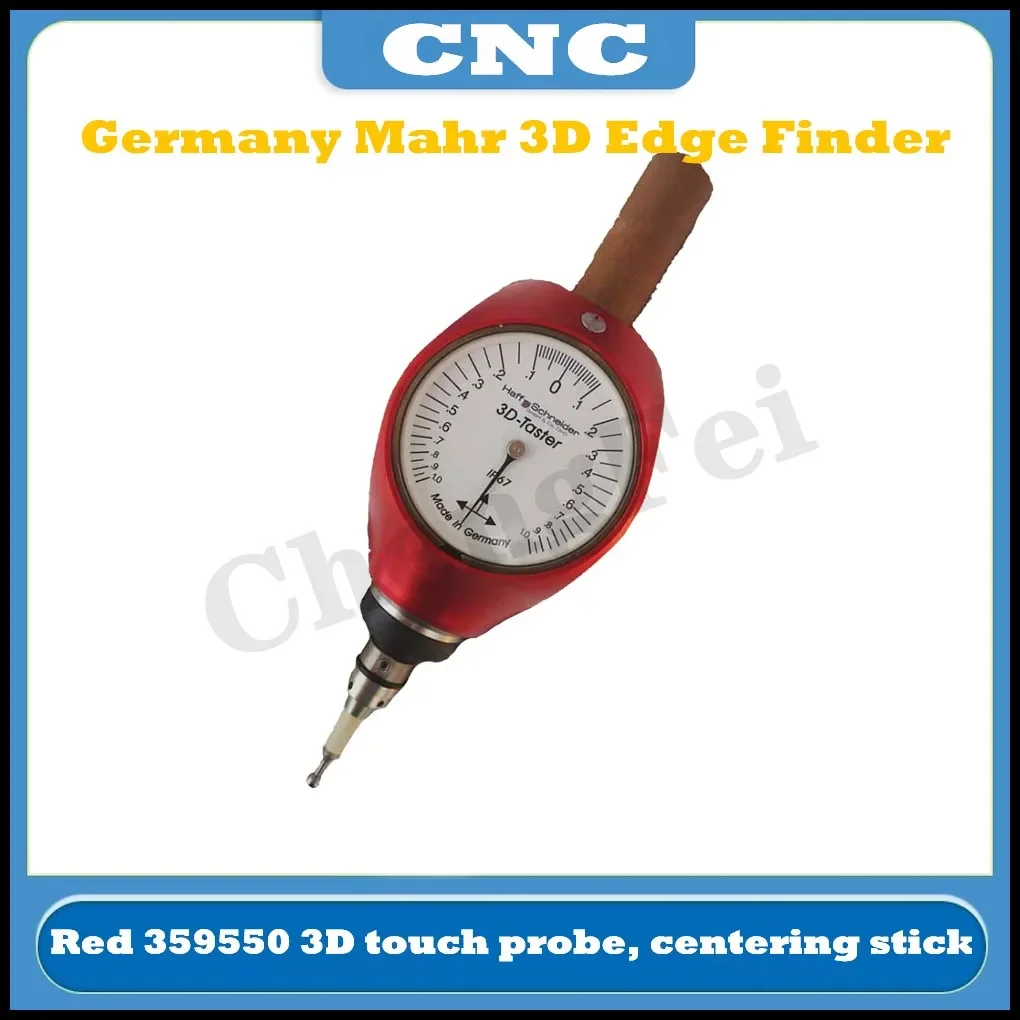

Pointer type three-dimensional coordinate measuring probe

Three-axis measurement function

Workpiece coordinate measurement of CNC integrated processing machine and electric discharge machine

The length of the workpiece and the coordinates of the center of the circle can be measured.

Shorten workpiece setting time

Reduce costs

A weapon to enhance productivity!

Measurement accuracy: 0.01 mm

Exquisite design, small size

Vibration resistant, sturdy and durable

Waterproof (IP67 grade, water depth 3m)

The operation is simple, and the measurement accuracy can be corrected

Features:

Probe and body probe are connected with screws

Prevent falling when shaken

Easy adjustment of probe deflection

Adjust directly at the probe handle

1:1 scale display, X/Y/Z three-axis movement

Equal to the scale

As long as a single pointer and scale ring

Accurate scale display

The difference value can be read directly

Small size

Reduce the chance of collision with the workpiece!

The probe head is connected with ceramic

Protect the measuring body

When the probe starts to contact the workpiece, the distance between the center of the spindle and the edge of the workpiece can be continued.

When the pointer returns to the zero point, the spindle center just passes the edge of the workpiece to set the workpiece coordinates.

When the center of the spindle exceeds the edge of the workpiece, errors can be clearly seen to prevent operation loss.

Technical data:

Shank diameter 16mm

Measurement accuracy <0.01mm

Repeat accuracy 0.005mm

Three-axis travel (X, Y, Z) 7mm

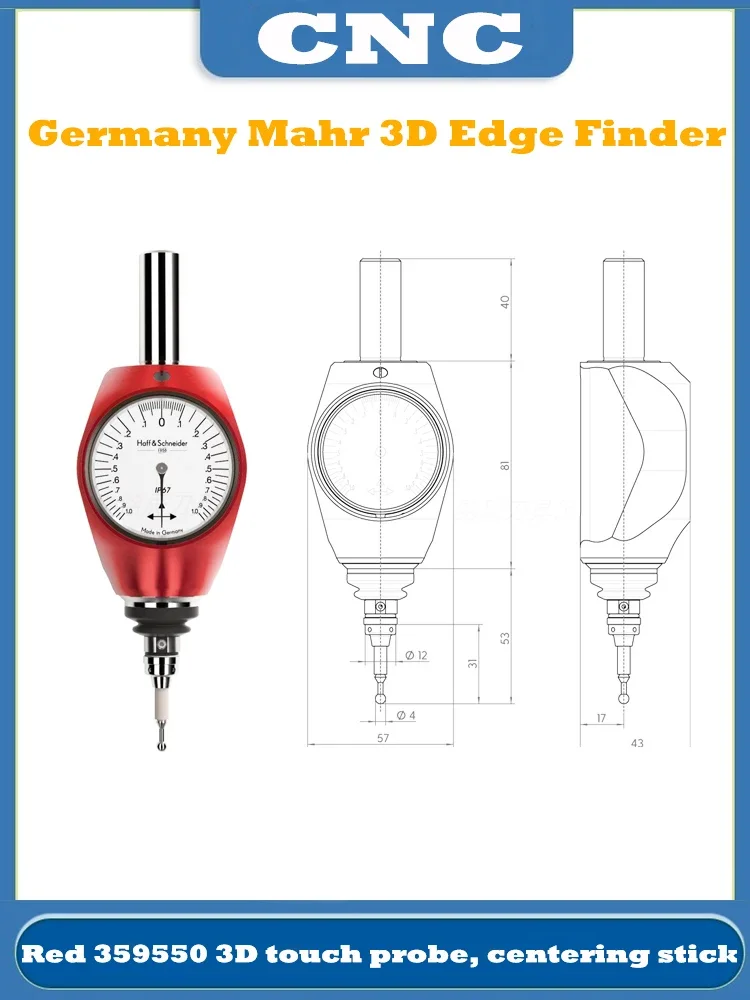

Body size (length/width/thickness) 81/57/43mm

The active length of the probe is 53mm

Probe head adjustment range +/-0.4mm

Weight 520g

Accessories:

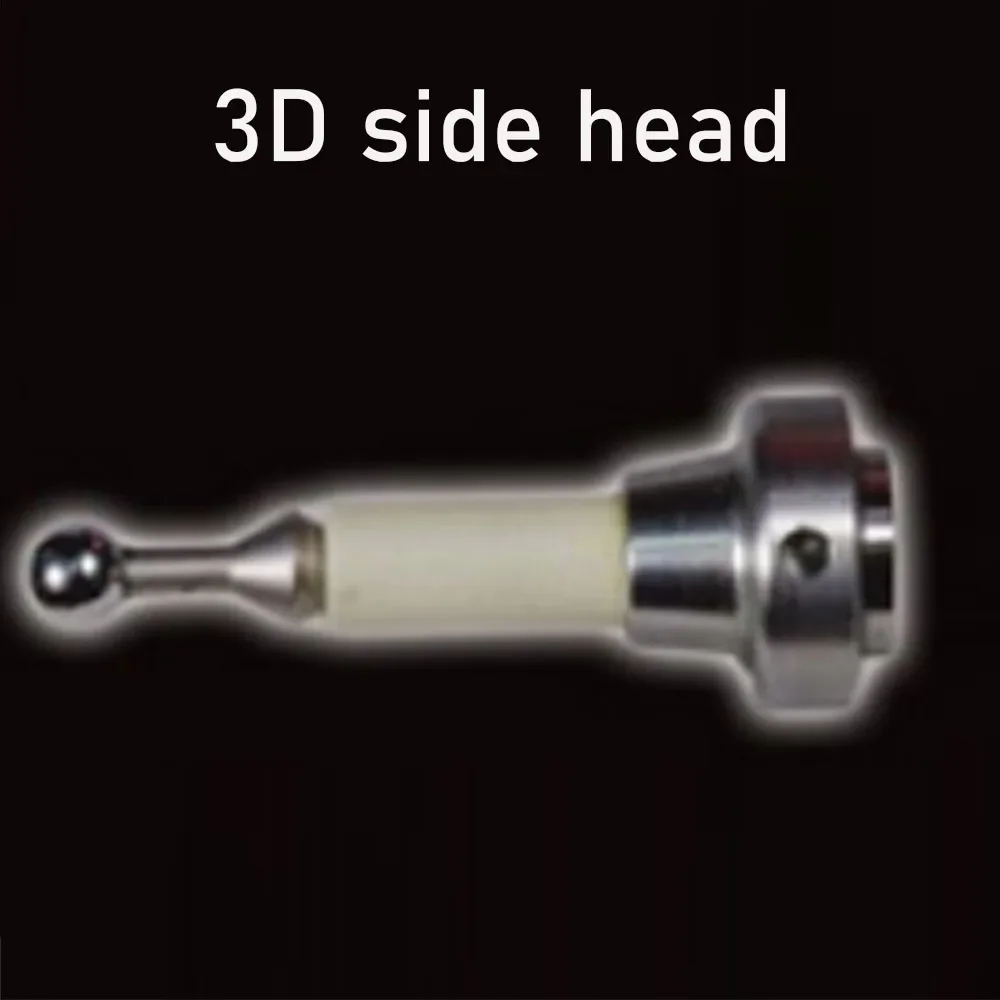

Replaceable probe head: order number 359505

Probe diameter: 4mm

Length: 31mm

Quick probe exchange

No need to use snail essence or special tools

Single and precise taper design, easy to replace

Order pivot number 359505

High precision

Considerable probe safety distance carving

Rush list and precise method of Heliang net adjustment

Ceramic probe body with bright gauge

Can be used for processing

The overall structure is compact and installed in

The solid aluminum alloy body

Anti-shock function

IP67 gingival waterproof design, can withstand water depth of 3 meters

The probe has a ceramic broken strand counter to prevent the body from being broken
