CNC Universal 3D Edge Finder, Center Finder, Milling Tool, Universal Three-dimensional Detection Tool Setter 80.360.00FHN

introduce:

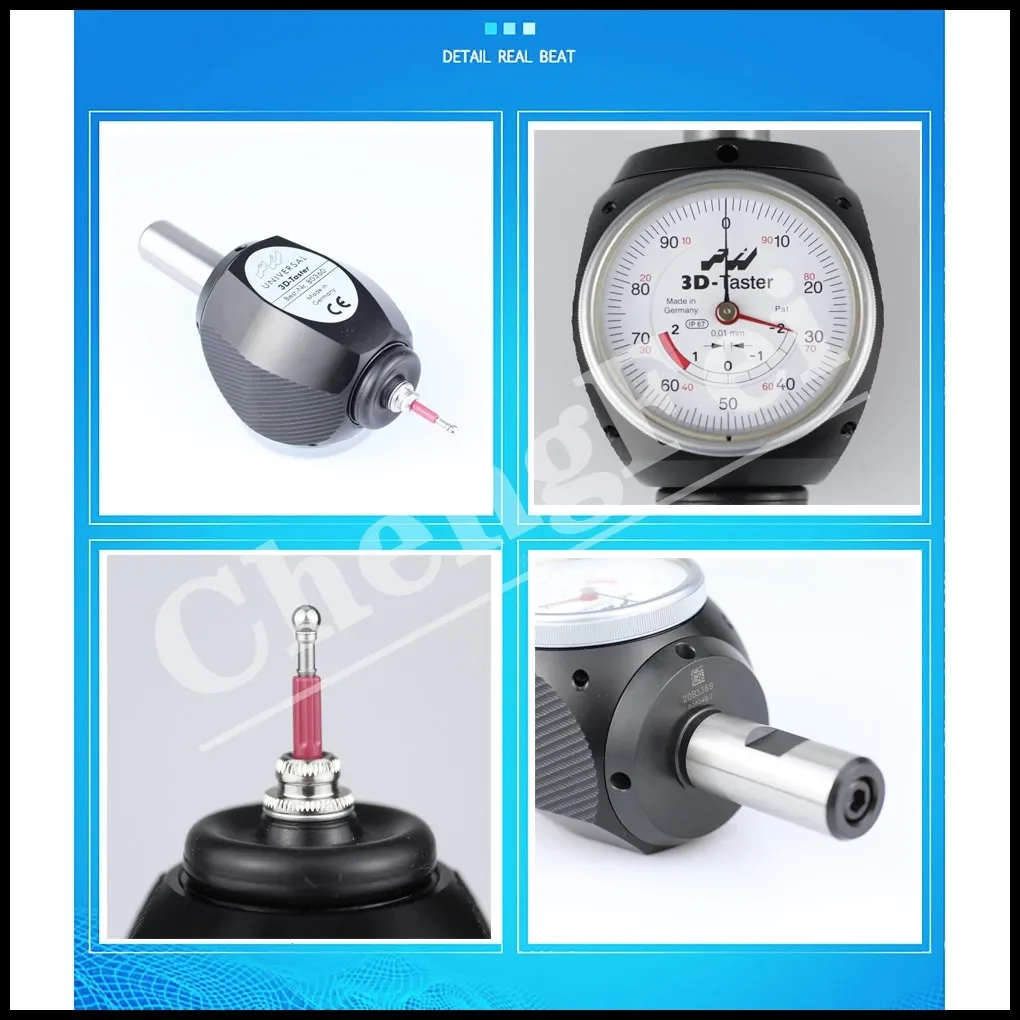

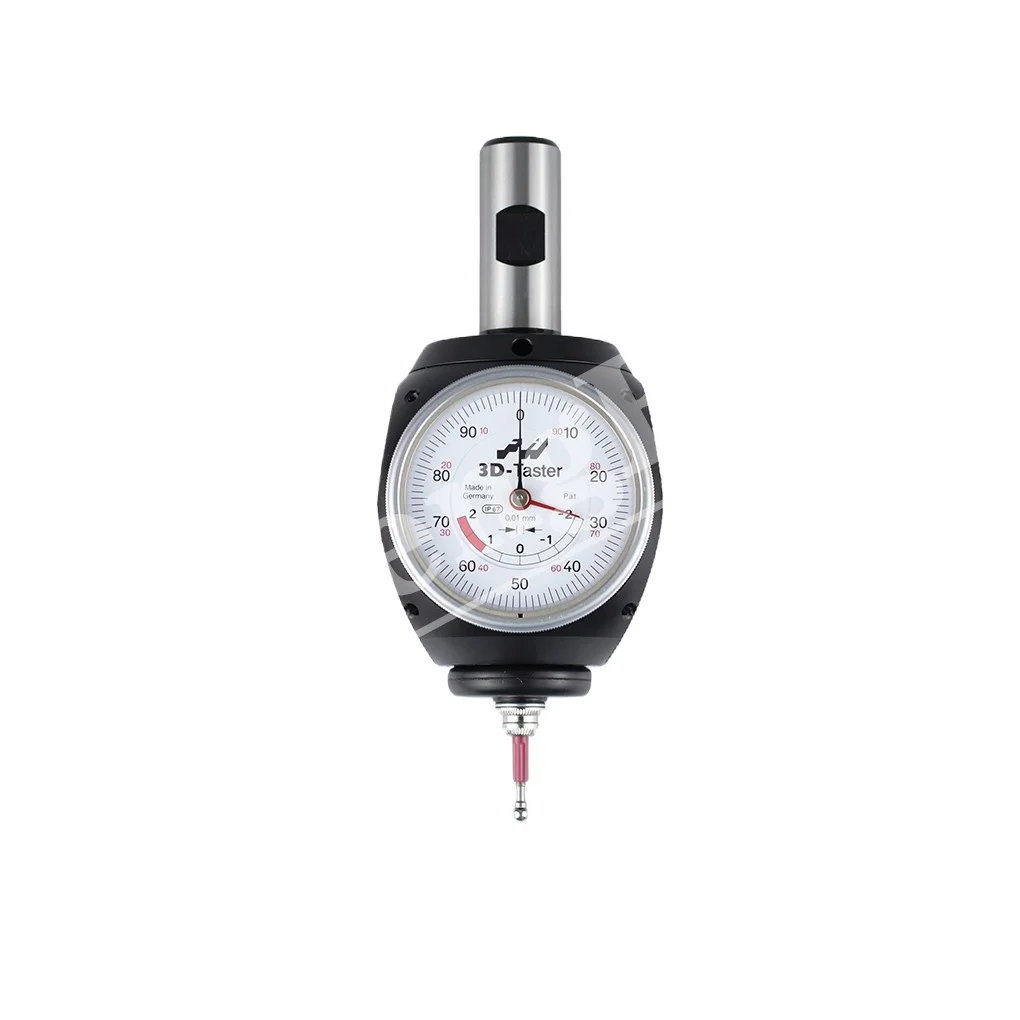

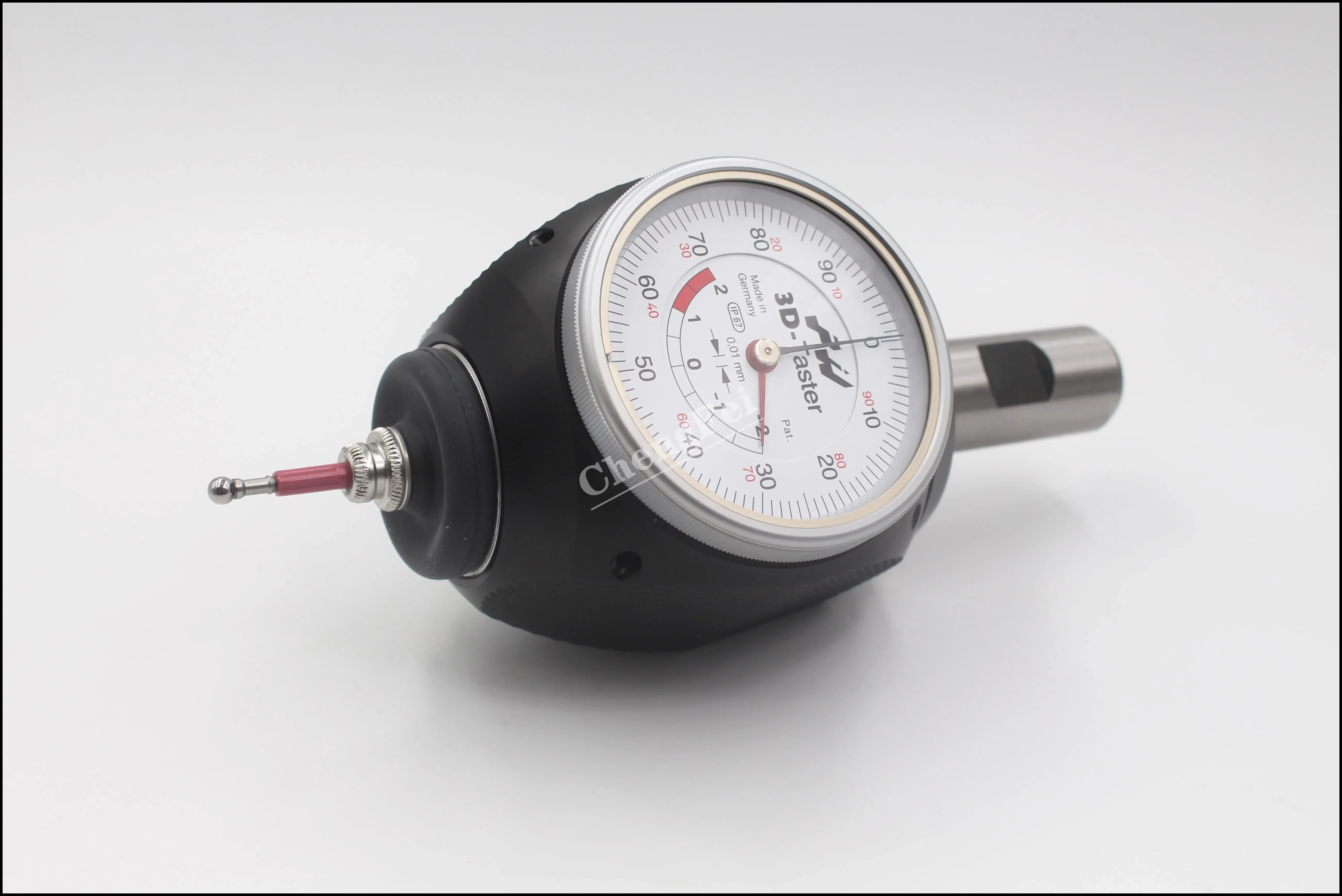

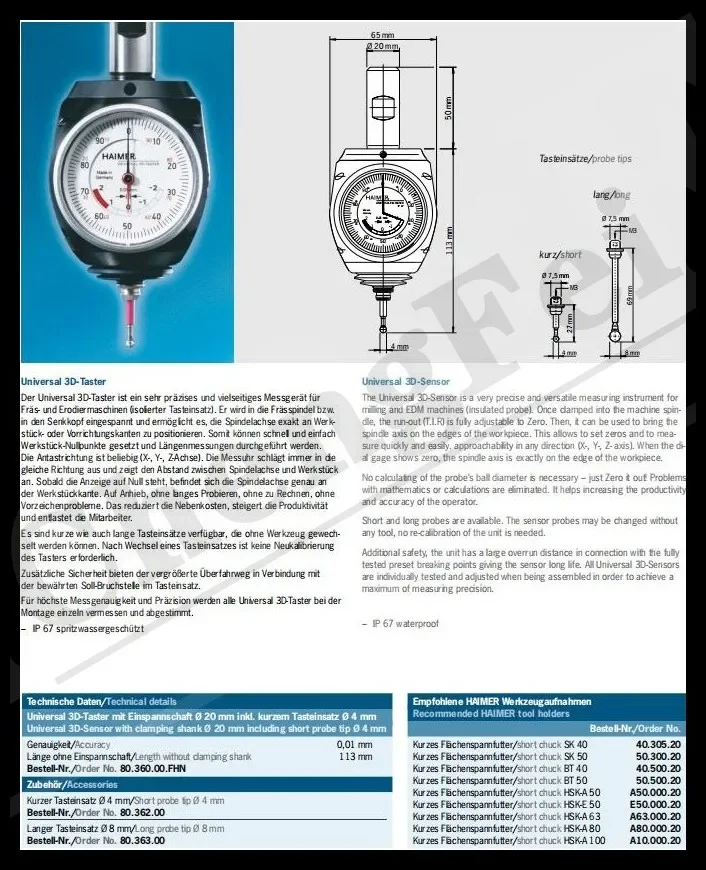

The 3D edge finder is clamped in the tool holder and installed on the spindle of the machine tool. When installed on the machine spindle, the runout (T..R) points to zero degrees completely. At this time, the coordinates of the machine spindle are positioned on the edge of the workpiece. At the same time, the zero point and measuring length can be set simply and quickly. You can approach the workpiece from any direction (X-Y-Z-axis) (hence the name "3D edge finder"). When the dial points to zero, the coordinates of the machine spindle and the surface of the workpiece coincide.

Only the 3D edge finder of HAIMER can find the edge of the workpiece in the first operation. No need to calculate the diameter of the probe sphere, just reset it to zero! Trivial mathematical formulas and calculations are omitted, and operating errors are reduced. Our 3D edge finder is simple and fast, which shortens the extra time required by most edge finder and improves production efficiency and operation accuracy.

Simply zero the pointer and that is the edge you are looking for. Such high accuracy allows you to inspect the parts on the machine. Move the guide rail, find the center of the hole, find the edge and inspect the part-HAIMER's 3D edge finder can do it all. It has a long stroke before reaching the preset measurement critical point, which can ensure a longer life of the edge finder.

The waterproof rating of the edge finder is IP67.

Note: The measurement accuracy of 0.01mm can be achieved by using HAIMER's original probe.

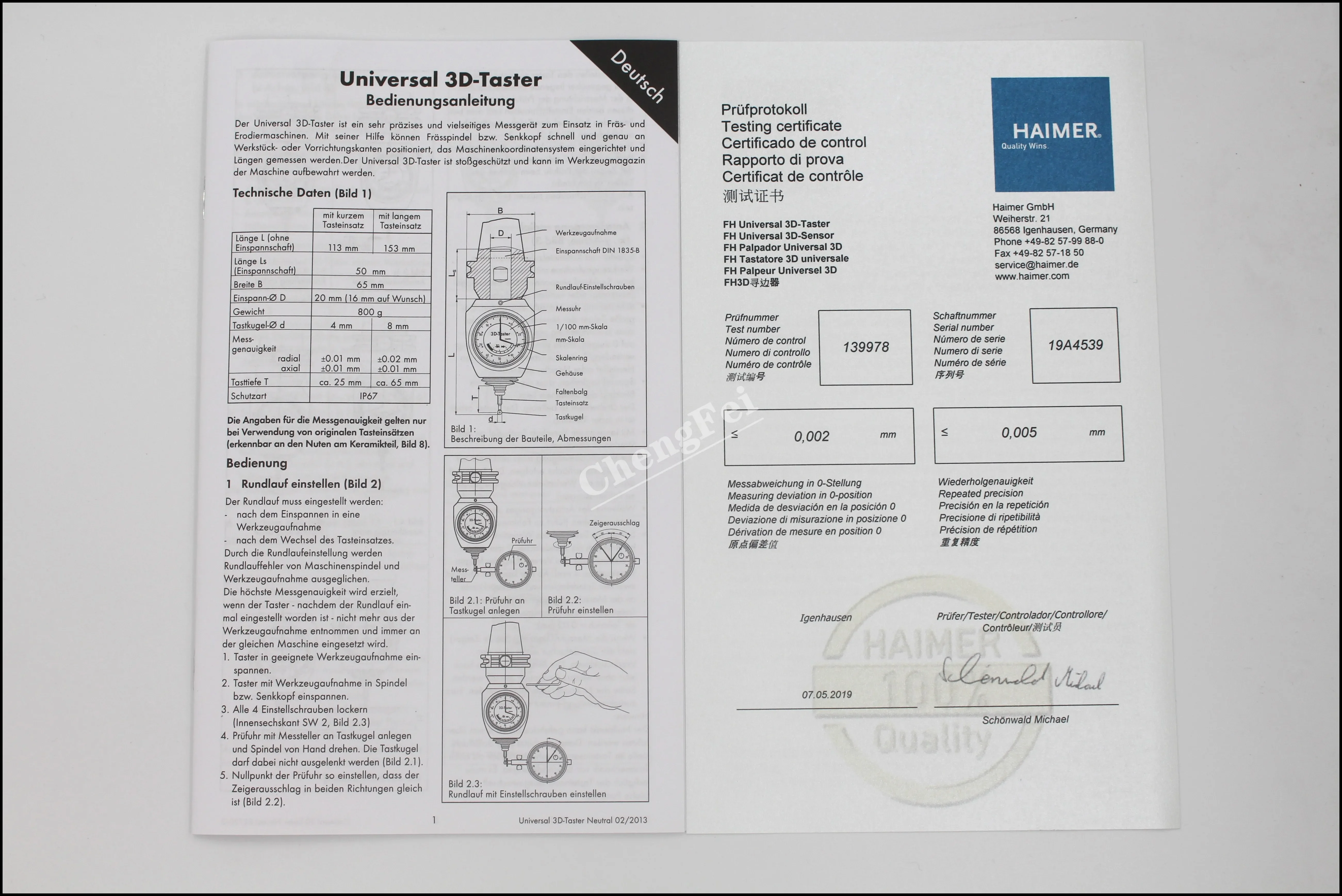

Technical parameter:

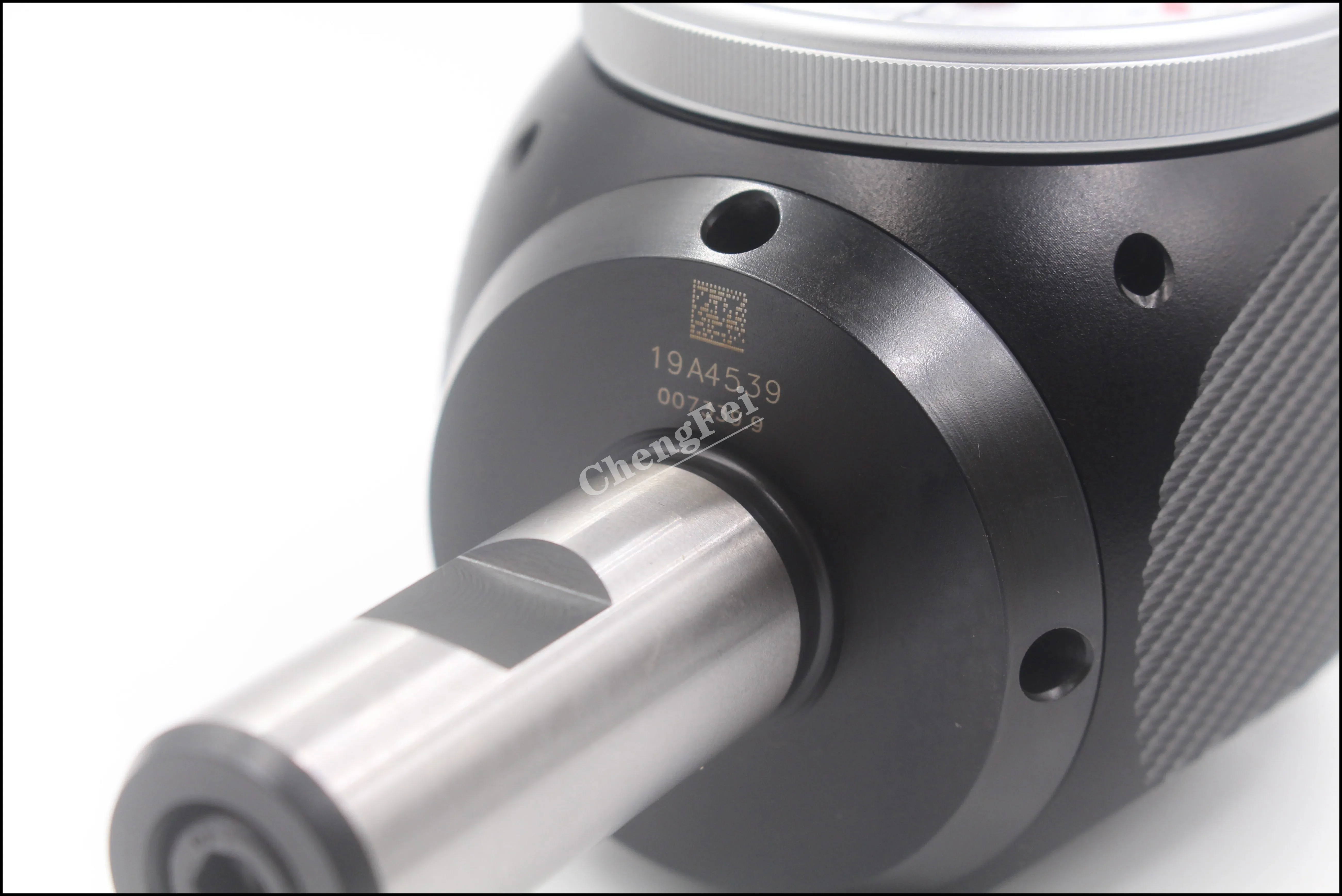

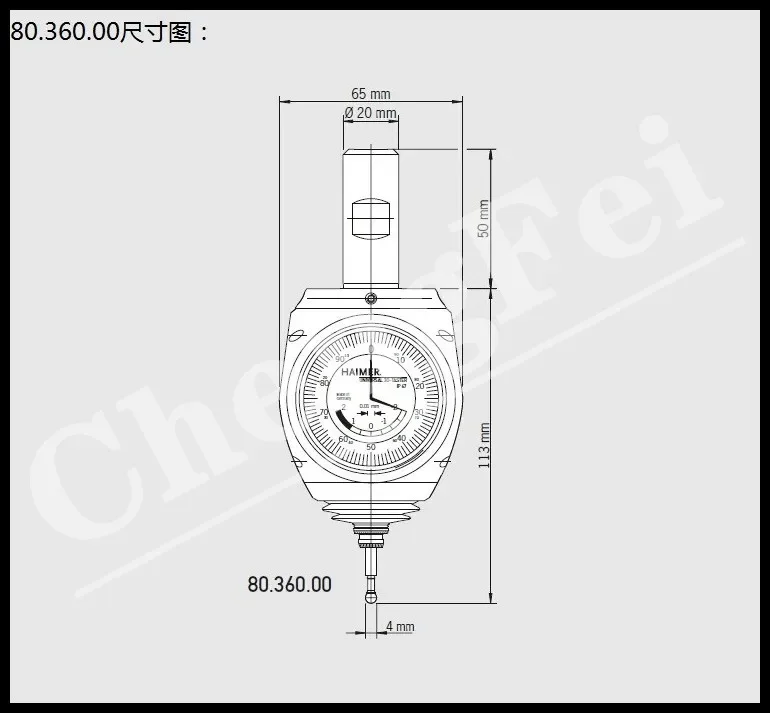

Shank diameter: Φ20 mm

Accuracy: 0.01 mm

Total length without chuck: 113 mm

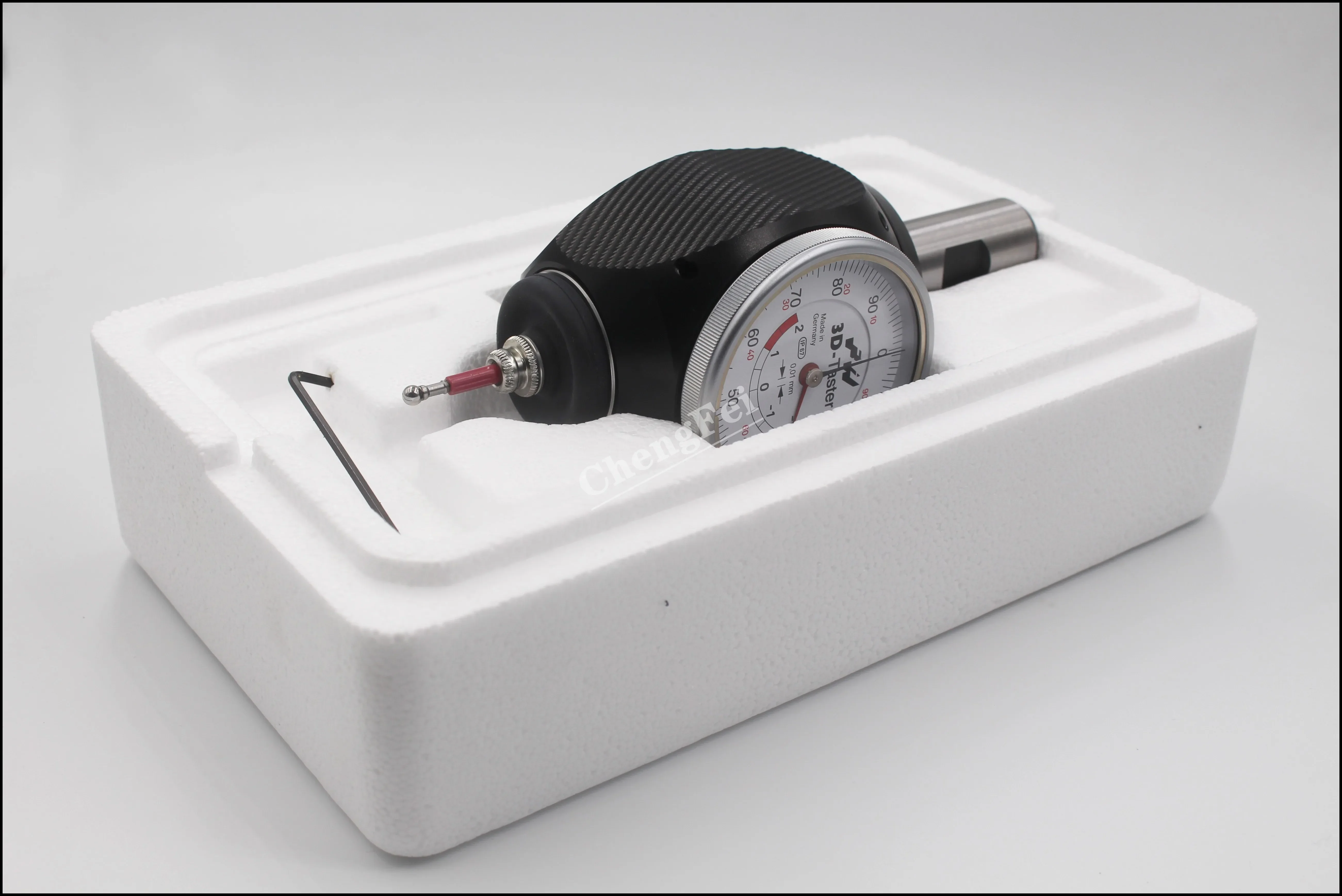

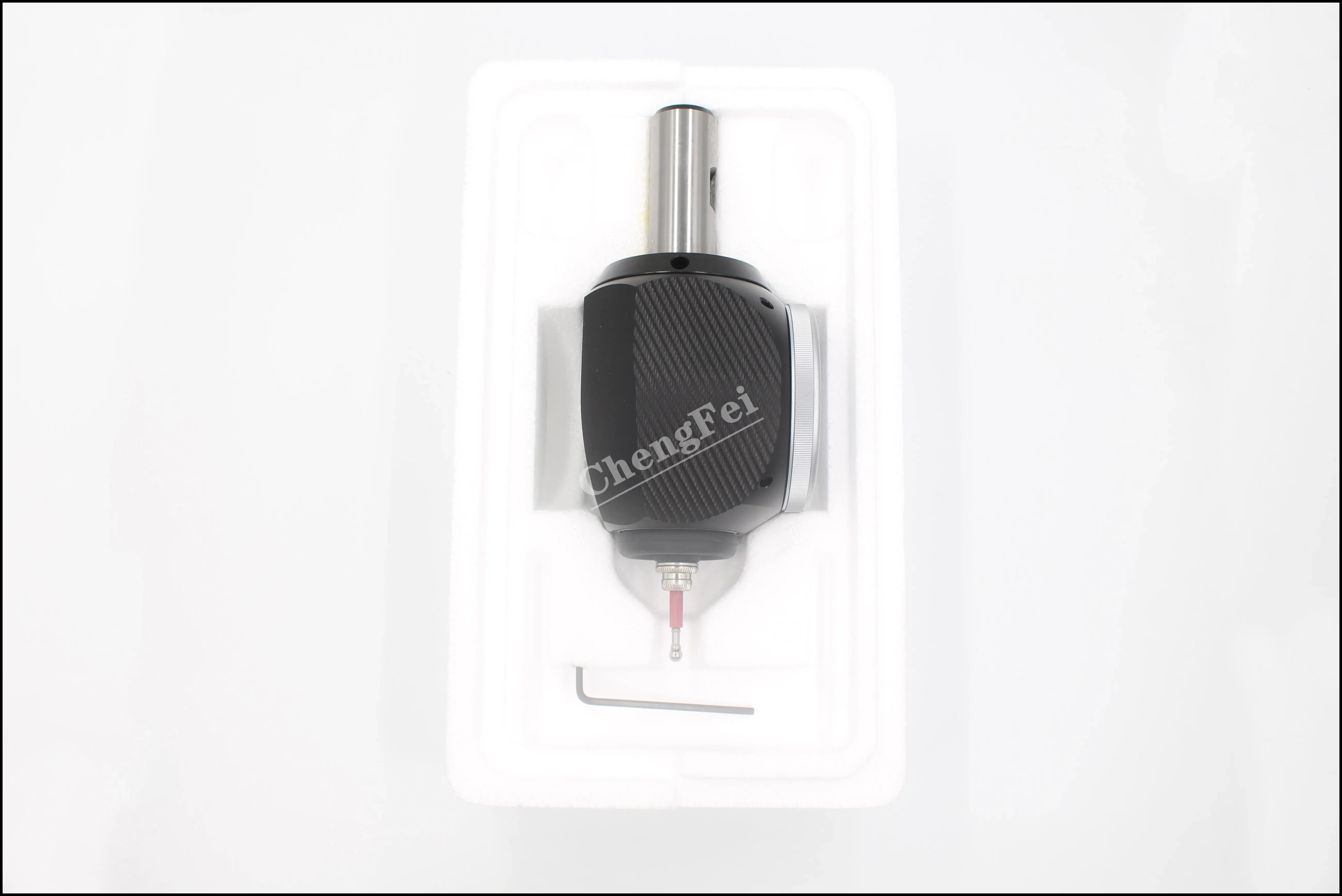

Accessories (includes 1 short probe)

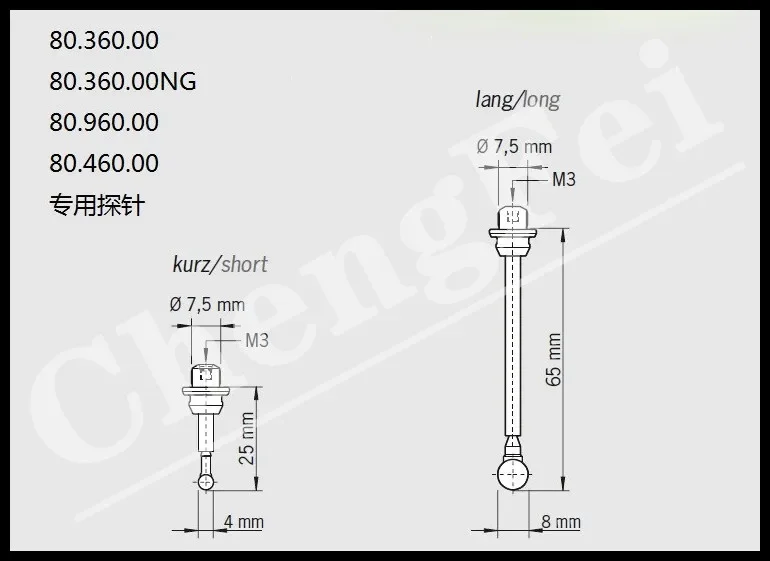

Probe specifications:

Short probe tip: Φ4 mm, length 25mm

Long probe tip: Φ8 mm, length 65mm (need to be equipped separately)

Features:

For machining centers (including milling machines) and electrical processing machine tools, the three-dimensional workpiece edge finder is a high-precision, multi-functional measuring instrument (for electrical processing machine tools, the probe tip is an insulated induction probe tip). Fix the 3D table on the machine tool spindle or electrode head, and the spindle center can be accurately positioned on each side of the fixture or workpiece. Therefore, the zero point and length of the workpiece can be quickly measured and set.

The advantage of the 3D edge finder is that it can approach the part from any direction (X-axis, Y-axis or Z-ax
