TEBAK CNC Universal 3D Edge Finder Universal Three-dimensional Detection Tool Setting Instrument

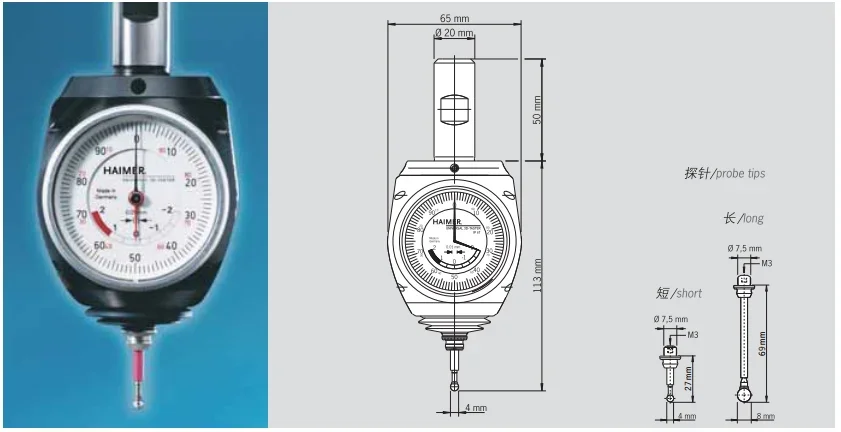

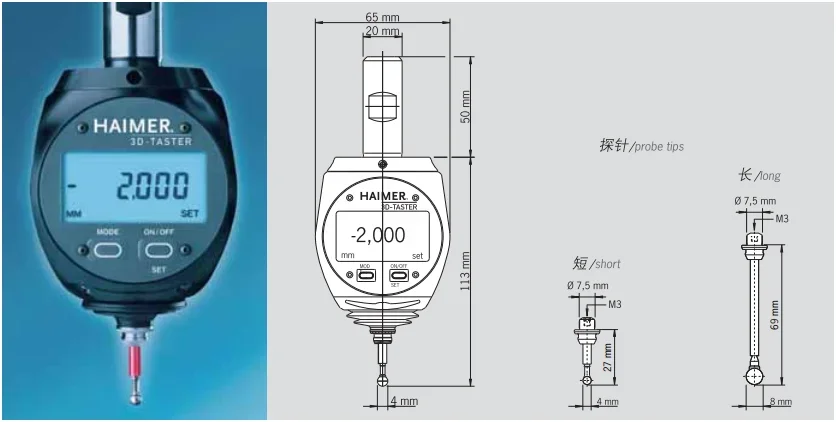

Universal 3D-Sensor

The Universal 3D-Sensor is a very precise and versatile measuring instrument formilling and EDM machines (insulated probe). Once clamped into the machine spin-dle, the run-out (T.l.R) is fully adjustable to Zero. Then, it can be used to bring thespindle axis on the edges of the workpiece. This allows to set zeros and to mea-sure quickly and easily. approachability in any direction (X- Y- Z- axis). When the dial gage shows zero, the spindle axis is exactly on the edge of the workpiece.

No calculating of the probe's ball diameter is necessary - just Zero it out! Problemswith mathematics or calculations are eliminated. lt helps increasing the productivityand accuracy of the operator.

Short and long probes are available. The sensor probes may be changed withoutany tool, no re-calibration of the unit is needed.

Additional safety, the unit has a large overrun distance in connection with the fullytested preset breaking points giving the sensor long life. All Universal 3D-Sensorsare individually tested and adjusted when being assembled in order to achieve amaximnum of measuring precision.

-IP 67 waterproof

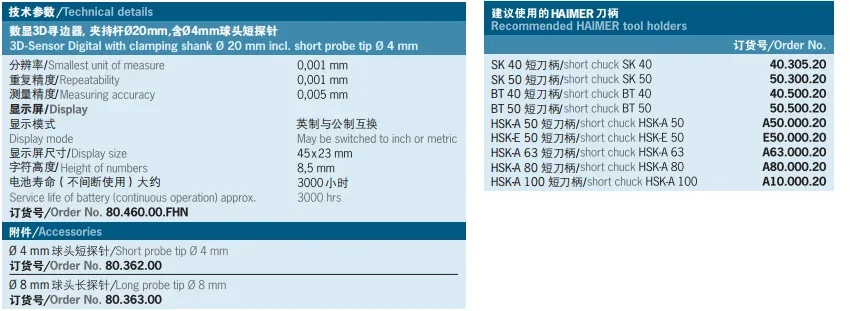

Technical details：

Universal 3D-Sensor with clamping shank 20mm including short probe tip 4mm

Accuracy：0.01mm

Length without clamping shank：113mm

Order No：80.360.00.FHN

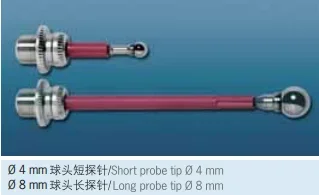

Short probe tip 4mm

Long probe tip 8mm

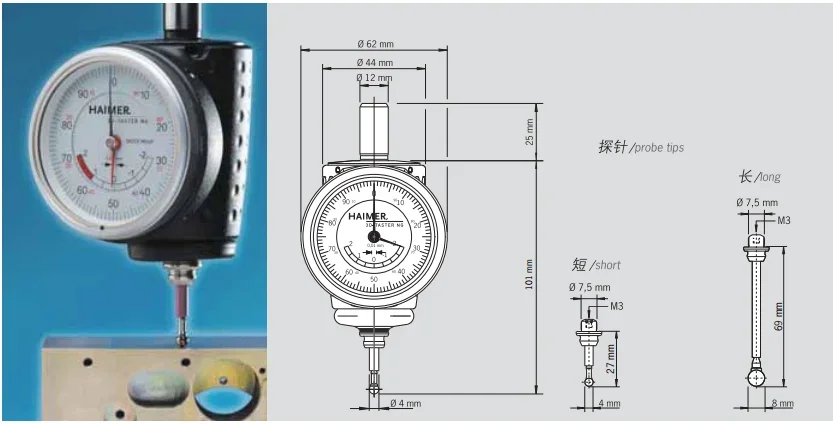

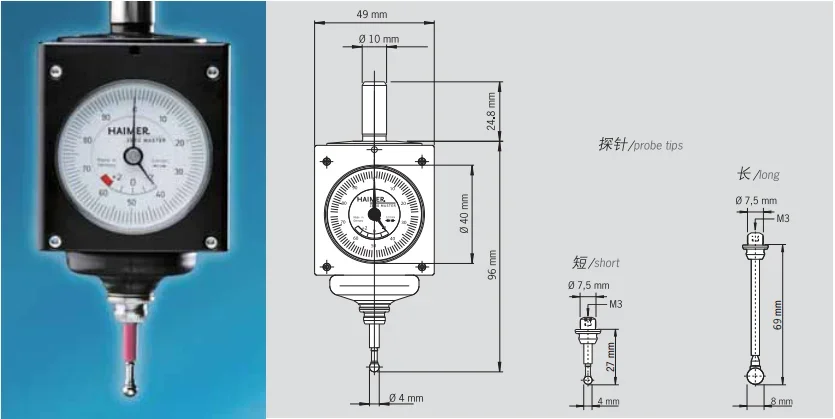

3D Sensor New Generation

The 3D-Sensor NG is a further development of our worldwide accepted and provenUniversal 3D-Sensor. lts distinguishing features are improved mechanics and a newand compact design.

Advantages:

-Compact and easy to grip casing, no restriction to working area

-Precise display of spindle position with large 1/100 mm dial gauge (2 hands)

-Utmost precision of 0.01 mm (when using original HAlMER probe tips)

-Marked overrun distance (safety distance)

-IP 67 waterproof

Functions:

- Aligning machine spindles to work piece edges and reference edges(x，y,Z-axis)

-Set zeros

-Centre borings and shafts

-Measuring lengths and depths

-Checking straightness and levelness of surfaces

-Aligning work pieces and vices

-Quick, without calculations, no mistakes with algebraic signs

Technical details：

Universal 3D-Sensor with clamping shank 12mm including short probe tip 4mm

Accuracy：0.01mm

Length without clamping shank：100mm

Order No：80.360.00.NG

Short probe tip 4mm

Long probe tip 8mm

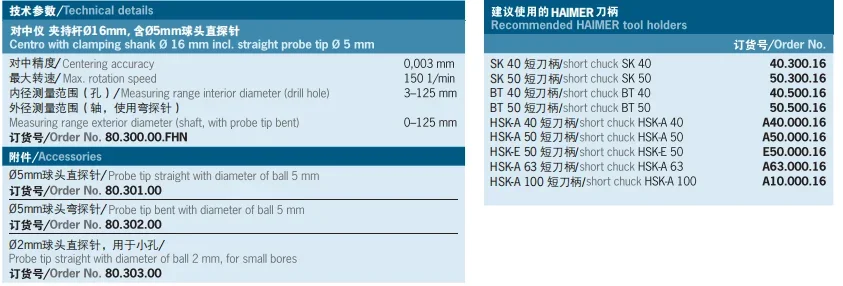

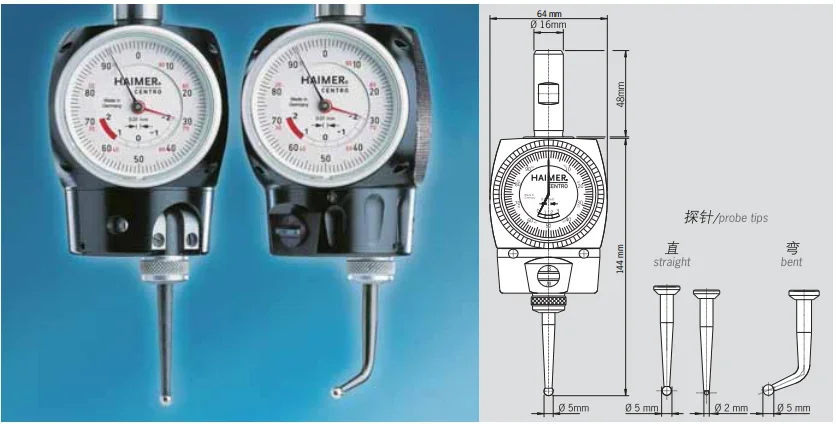

Centro

Center bores and arbors quick and precise

The Centro is clamped in a tool
