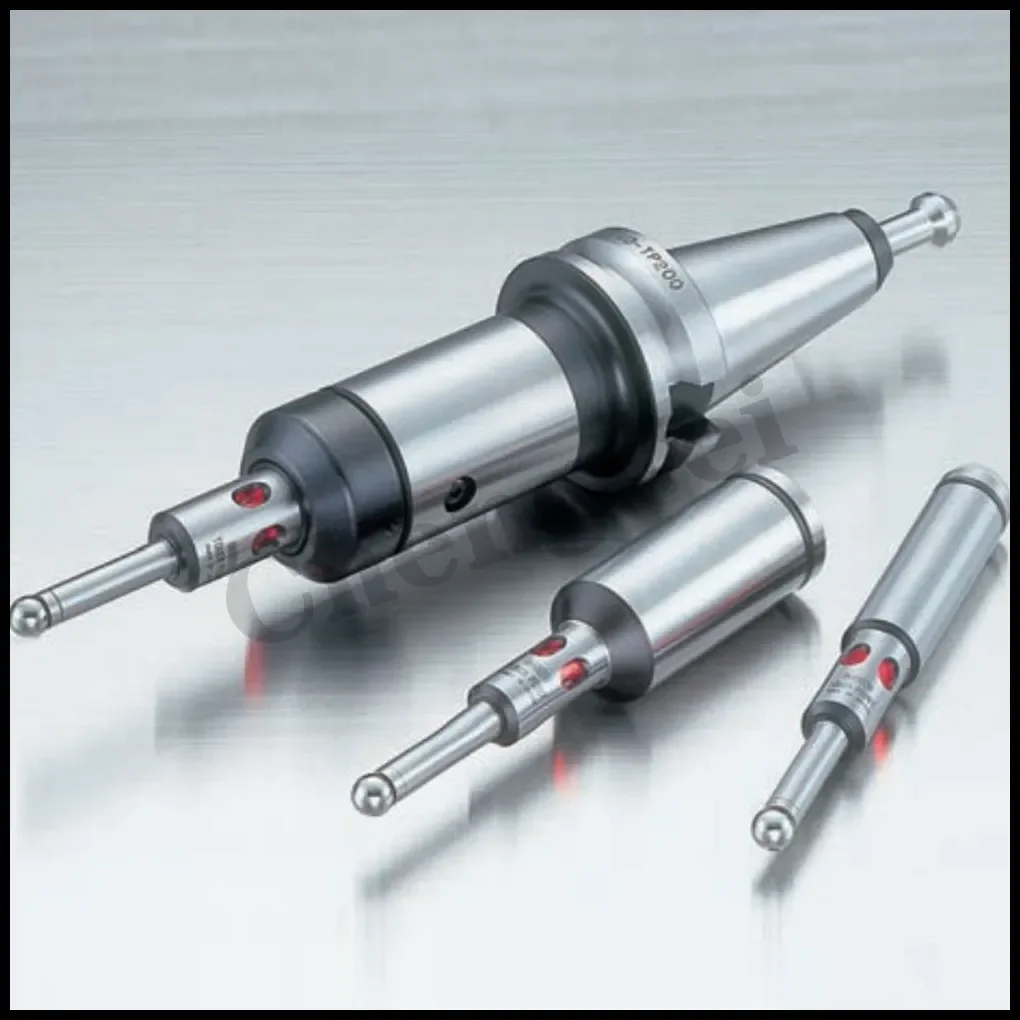

NIKKEN Cnc Machining Center 3D Edge Finder Photoelectric Universal Centring Rod S20-umt/s32-umt/mt2-umt Detector Centering Tool

1 × 3D photoelectric universal edge finder (three models available: S32-UMT/MT2-UMT/S20-UMT)

Note: This product needs to be ordered, please contact me about the model you want to customize before placing the order.

Omnidirectional micro sensor

3D Electronic Contact Reference Point Detector

■It is a swing-type detection repeatability +2μm

■Large swing range

X, Y=±7mm Z=3mm

■When in contact, it will be prompted by red light and sound signal. At the moment of contact, the surrounding red lights are lit. The products used in the machining center can also emit a "beep" sound and can be used with peace of mind. However, it is not a conductor that cannot be used.

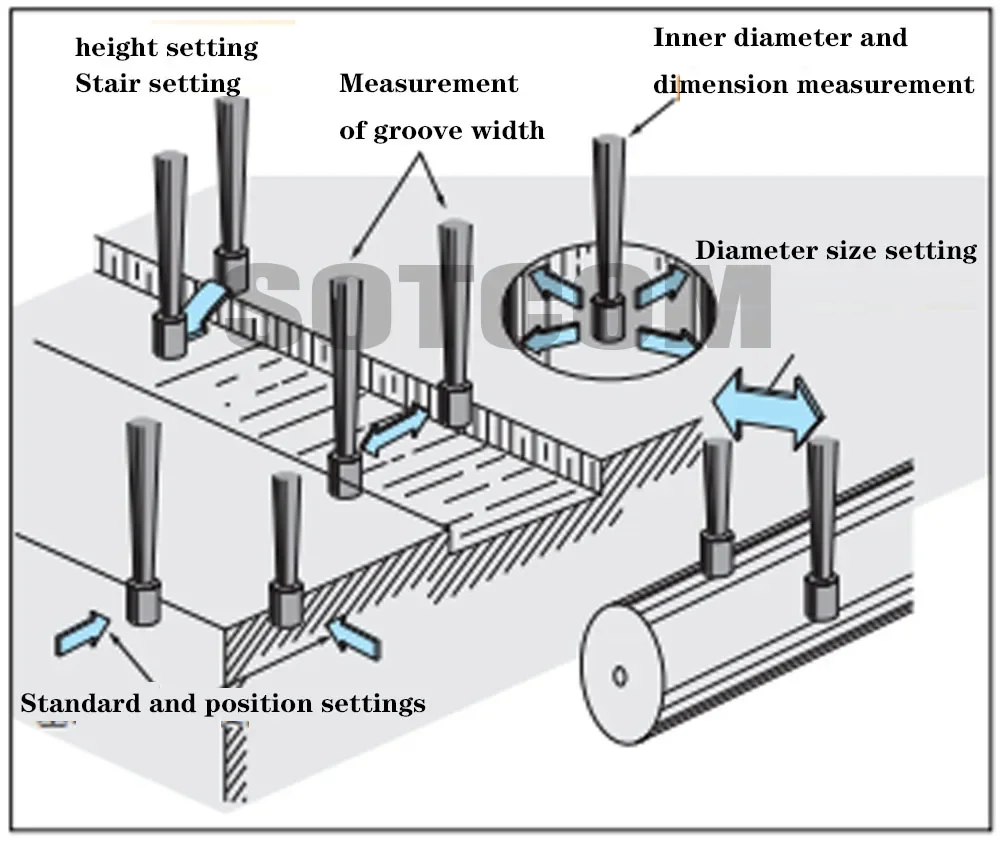

How to locate the contact position

When the detection head is working and measuring, it touches the workpiece surface lightly and slowly, and the red light lights up instantly. From this position, the detection point is the detection point outside the correction of 1/2 of the diameter of the detection head (6+2=3mm).
