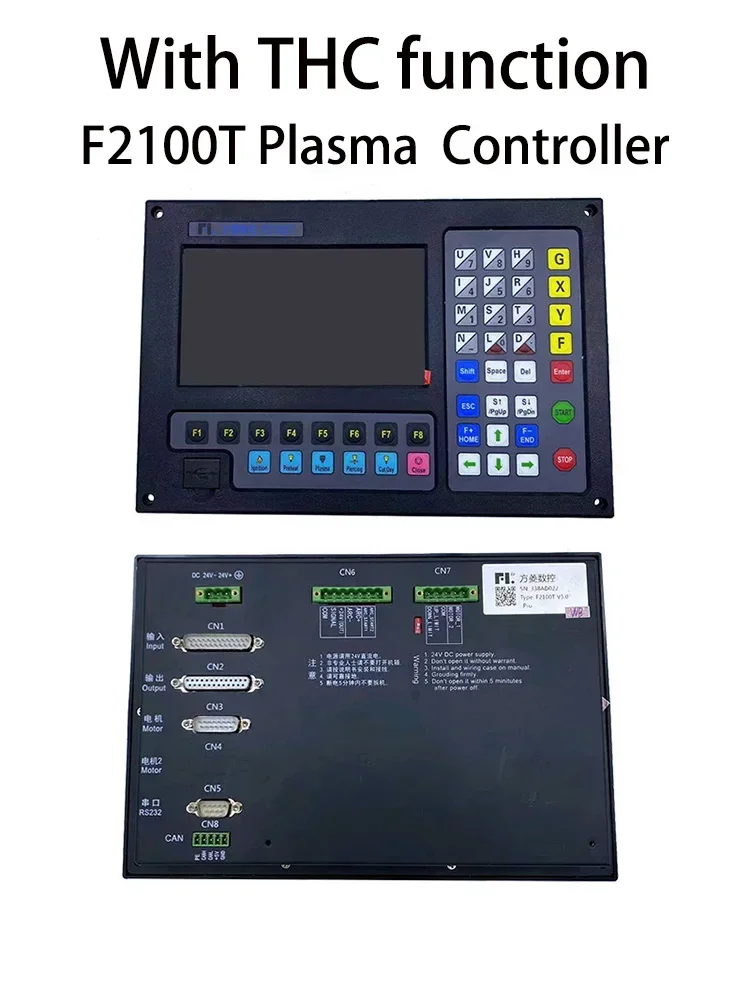

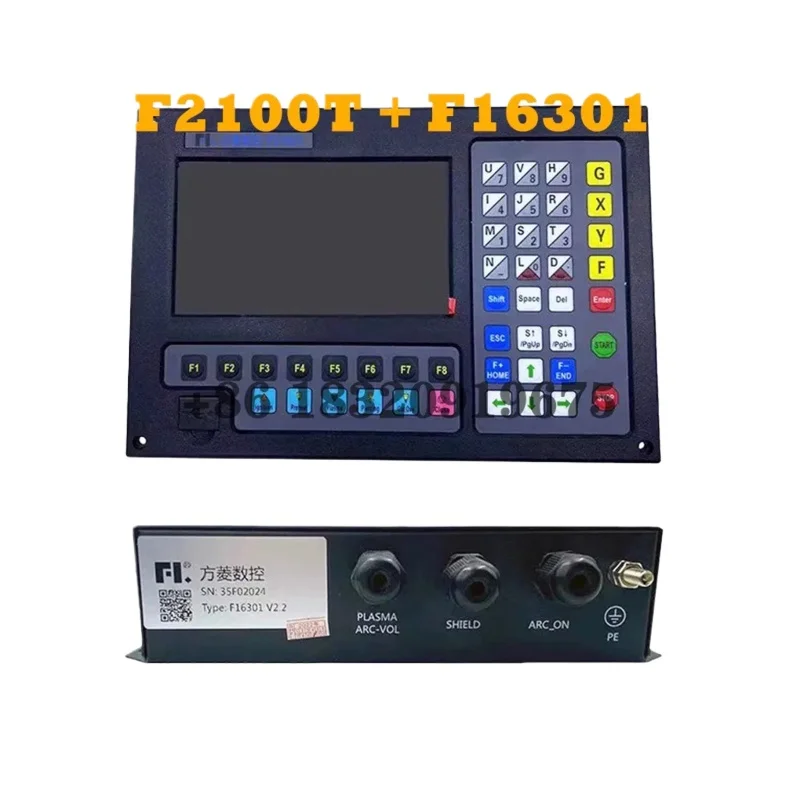

TEBAK F2100T Plasma Flame Plane Cutting Machine Controller 2-Axis CNC System F16301 Voltage Divider

F2100T internal integrated THC plasma arc pressure high function

product content:

1 xF2100T plane cutting controller V5.0 (including some small accessories)

1 xF16301 Voltage Divider V2.2

System Features:

1)Chinese/English/French/Portuguese/Russian/Denmark/Korean menu, the menu can only be switched with one key.

2) 47 types of different graphics (including grid patterns), chip part and hole part are substitutes.

3) Support EIA code (G code) and various FastCAM, FreeNest, SmartNest, IBE

software.

4) Compact keyboard design, easy to input files.

5) Graphics have scale, rotation, mirroring and other operations.

6) Graphics can be arranged in matrix, interactive and stacked modes.

7) The steel plate can be adjusted according to any steel edge.

8) The coordinate system can be customized, supporting all eight kinds of two-dimensional coordinates.

9) All input and output port types and quantities can be customized (usually open or normally closed).

10) Self-diagnosis function, diagnosing key state and all I0 states, easy to check and debug.

11) Provides a front USB interface for copying files.

12) The system can be easily upgraded through the USB interface

13) Import and export files by single or all files.

14) Display time, day of the week and clock.

15) Parameter backup and online upgrade.

16) Support four modes of flame, plasma, dusting and demo.

17) Including various processing parameters to meet different demands.

19) Flame and plasma are separate in control I0 port.

20) The flame mode supports THC, secondary preheating, and tertiary perforation.

21) Plasma arc feedback, positioning feedback, automatic arc corner closing.

22) Built-in plasma arc automatic/manual turning height function: display the actual arc voltage and set the arc voltage, set the THC parameters, check the collision/positioning success signal, control the arc signal, and check the position.

23) Plasma arc control supports two short-arc THC methods of speed and distance to make the machine more stable and safer.

24) Support trimming. It can save the preheating time of thick steel plate.

25) The movement speed can be accelerated and decelerated in real time.

26) According to the thickness of the plate, the cutting speed automatically limits the speed limit of the curve, effectively preventing over-burning.

27) Manually select rows and columns.

28) Process dynamic/static display, graph zoom in/out, dynamic tracking cutoff point in zoom state.

29) With DSP as the core, it can accurately
