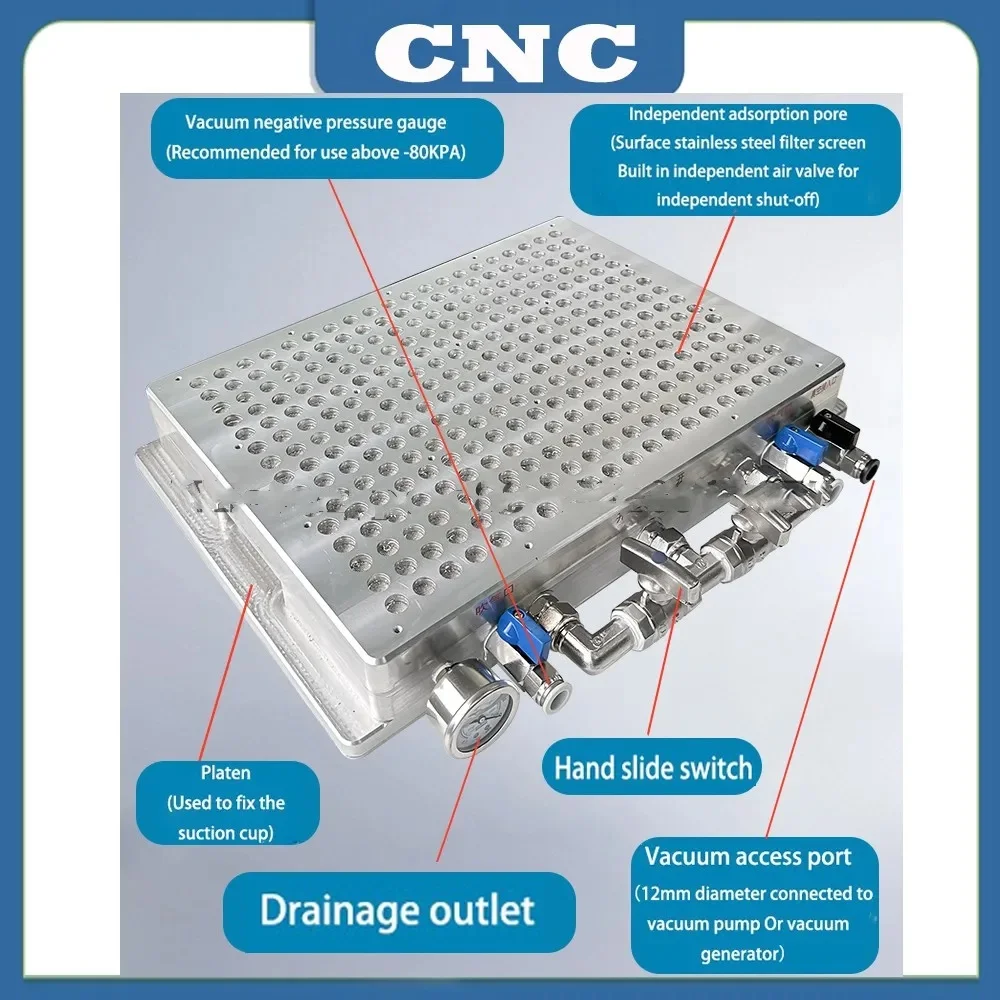

CNC Machining Center Vacuum Suction Cup Industrial Seal-less Vacuum Pump Porous Strong Adsorption Platform Milling Machine

Notes:

1. For new users, please read the instructions for use of the product carefully before use and use the product correctly;

2. It is recommended to use water-soluble emulsion (water or cutting fluid) during the use of this product. It is strictly forbidden to use viscous insoluble liquids such as cutting oil;

3. Remember to clean the vacuum suction cup before closing the vacuum and hand valve (ball valve) after completing the workpiece processing. Do not reverse the order, otherwise the remaining chips and dust from the processing may be sucked into the suction cup, resulting in the suction cup being blocked, leaking, etc.;

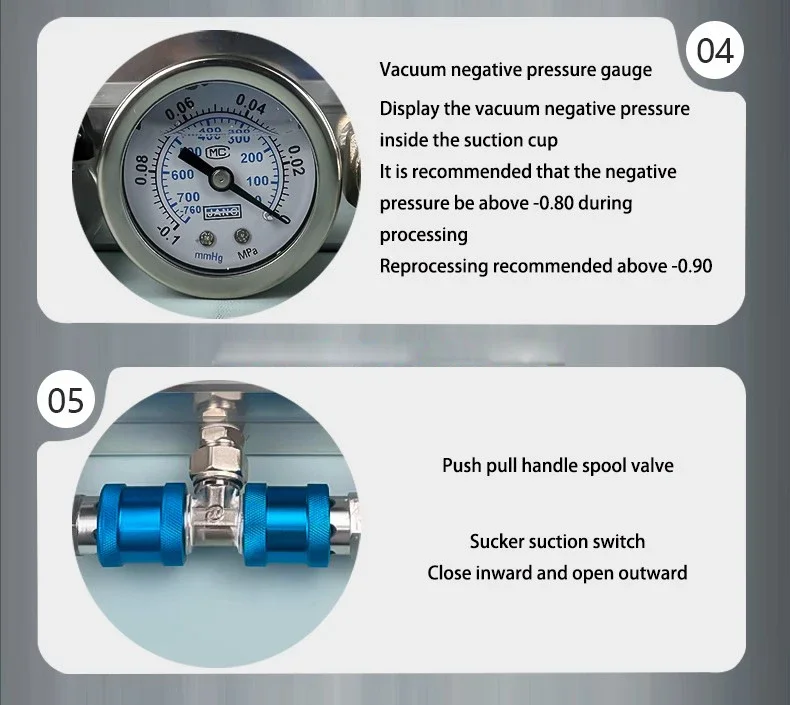

4. During use, ensure that the vacuum pressure value of the vacuum pump sucked is stable and negative 7 5 or above

(If the knife is heavier, it is recommended to use negative 85 or above). If the negative pressure of the air compressor or vacuum generator is unstable, be sure to replace it with a vacuum pump with appropriate power as soon as possible, otherwise it may cause unstable adsorption and the result of flying during the processing process;

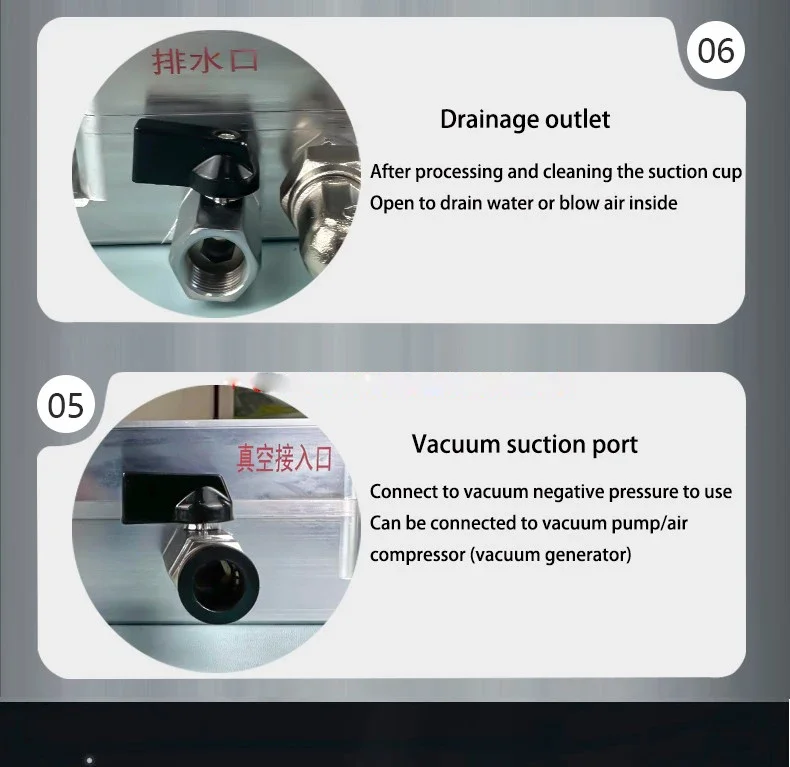

5. It is recommended to use a blow gun to blow and clear the adsorption hole of the suction cup before each use, and clean and dry it in time after use; Note that when blowing air inside the air hole (drain hole), be sure to open all the air holes and switches to keep the internal air circulation to prevent explosion;

6. At any time, do not directly insert the blow gun into the negative pressure air source interface through the quick connector to blow directly;

Frequently Asked Questions:

1. How big a suction cup should I buy?

How big a suction cup should I buy depends on two factors. One is the size of the workbench, and the other is the size of the workpiece that is frequently processed. It is generally recommended that the suction cup purchased is less than or equal to the size of the workbench; the suction cup size is larger than the workpiece size;

2. How strong is the suction of the Zhongxiang vacuum suction cup? How stable is it?

The Zhongxiang vacuum suction cup is the same as all other CNC vacuum suction cups: the suction cup itself is mechanical and has no suction. The suction of the suction cup comes from the strength and stability of the negative pressure source (the negative value and stability of the negative pressure converted by the vacuum pump or vacuum generator to the air compressor). In addition, whether the workpiece is level enough will also affe
