The Latest Cnc Centering Instrument Haimer Centering Instrument 80.300.00Fhn 3d Edge Finder Mechanical Controller

Note: The probe on the edge finder of the alignment instrument is

originally shipped with a 80.301.00-5mm needle by default

Main features:

Quick and exact centering of borings and shafts

Centering accuracy of 0,003 mm

Replaceable probes for maximum flexibility

The HAIMER Centro is a very precise and versatile coaxial indicator to center bores and arbors.

Center bores and arbores quick and precise

The Centro is clamped in a tool holder and positioned close the sought axis. The probe tip is adjusted and touches the bore or arbor all the way around.

Dial gauge always in field of vision

With low rpm the probe slides along the bore or arbor. Its movement is transferred to the dial gauge. By using an antenna the Centro does not spin around and stays in field of vision.

By using the Centro you find the axis of bores or arbors - reliably

As long as the spindle is out of the center of the bore or arbor the hands of the dial gauge stay in movement. By changing the position of x- and y- axis at the machine you can jibe the axis of the spindle and the work piece.

Further advantages:

Check the axial run-out of the work piece to the spindle

Compensation of the run-out errors of the spindle and tool holder >> No adjustment necessary

Even in bigger distance the unusual size of the dial gauge is helpful to finish the job

Replaceable probes

Please take note: The given measuring precision of 0.01 mm only applies, if the original HAIMER probe tips are used.

Technical parameter:

Centering device (centering device): 80.300.00FHN

Probe: Ø 5 mm

/2 mm

Clamping shank: Ø 16 mm

Alignment accuracy: 0,003 mm

Maximum speed: 150 1/min

Measuring inner diameter range (hole): Ø 3-125 mm

Measuring outer diameter range (shaft, with curved probe): Ø 0-125 mm

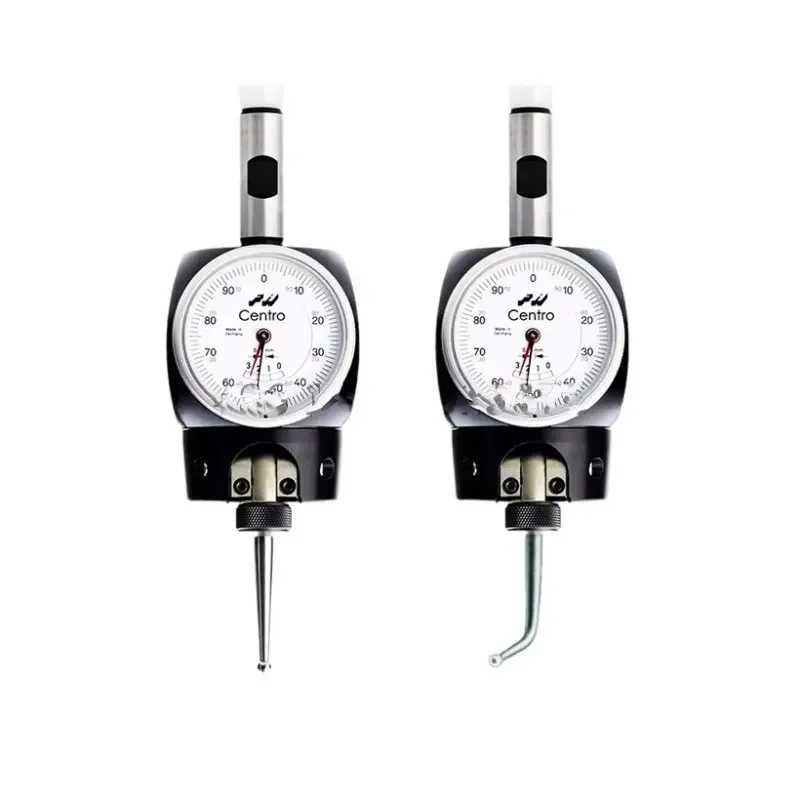

Probe tips for Centro:

The Centro can be equipped with a straight (ball Ø 2 mm / 5 mm) and a bent (ball Ø 5 mm) probe tip. The probe tips may be changed without any tool, no re-calibration of the unit is needed.

Technical drawing:

SIZE:
