High Precision 8stations HAK31080 NC TURRET CNC Tool Lathe Power Turret
Request pricing, MOQ and lead time for this product — we reply within 24 hours.
Product parameters
- Model/Data
- Center height (mm) | Station number | Max.tangential torque (N·m) | Repeatability accuracy(") | Time of changing tool and lock(s)
- 45º
- 60º
- HAK31063
- 63 | 6 | 8 | 600 | ±2 | 2.6 | 2.8
- HAK31080
- 80 | 6 | 8 | 1000 | ±2 | 2.8 | 3
- HAK31100
- 100 | 6 | 8 | 1500 | ±2 | 3.6 | 3.8
- HAK31125
- 125 | 6 | 8 | 2500 | ±2 | 4 | 4.2
- HAK31160
- 160 | 6 | 8 | 4000 | ±2 | 4.3 | 4.5
- Model/Dim
- A | B | C | D | H1 | H2 | b1 | b | h
- HAK31063
- 230 | 205 | 185 | 165 | 63 | 210 | 11 | 20 | 20
- HAK31080
- 260 | 210 | 190 | 180 | 80 | 230 | 11 | 25 | 25
- HAK31100
- 300 | 240 | 220 | 200 | 100 | 260 | 13 | 25 | 25
- HAK31125
- 340 | 288 | 260 | 230 | 125 | 300 | 18 | 32 | 32
- HAK31160
- 460 | 380 | 345 | 306 | 160 | 380 | 22 | 40 | 40
- Model/Dim
- L | L1 | L2 | L3 | J | K | M | N | φ | φ1 | φ2 | φ3
- HAK31063
- 329 | 55 | 138 | 130 | 25 | 30 | 30 | 30 | φ8 | φ274 | φ318 | φ25
- HAK31080
- 350 | 60 | 147 | 130 | 32 | 32 | 32 | 32 | φ8 | φ310 | φ366 | φ25
- HAK31100
- 384 | 72 | 164 | 140 | 25 | 40 | 30 | 30 | φ10 | φ360 | φ420 | φ32
- HAK31125
- 459 | 85 | 204 | 150 | 32 | 44 | 43 | 43 | φ12 | φ420 | φ492 | φ40
- HAK31160
- 564 | 115 | 265 | 160 | 40 | 48 | 56 | 48 | φ22 | φ560 | φ640 | φ50
Description

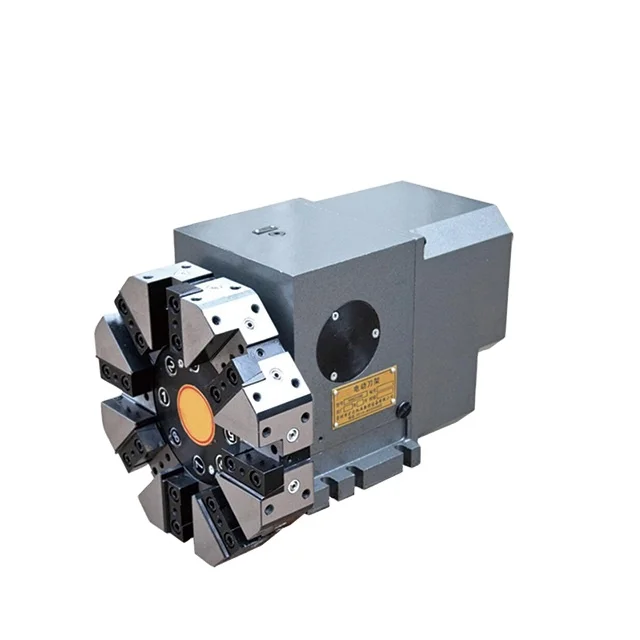

High precision 8stations HAK31080 NC TURRET CNC tool lathe power turret
Product Description
Technical features:
HAK31 series horizontal NC turret adopts the working principle of worm for driving, 3 face gear coupling as fine indexing mechanism, big screw for clamping, sending signal with Hall unit. It features indexing without tool-holder disk lifting, steady rotating, low noise, high stiffness, multi stations, build-in cooling. It is the best choice for processing complex parts.
1. Confirm various parameters when choosing models of turret. Choose the number of stations according to quantity of part procedure and complicacy.
2. Choose tool specifications according to model of machine tool and cutting force. Choose the front type or rear type tool turret according to the cutting di
