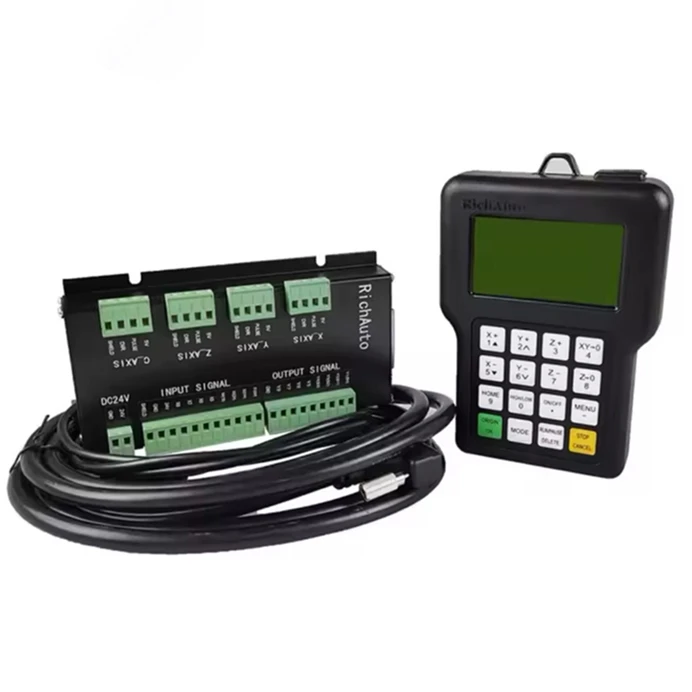

TEBAK CNC Engraving Machine Motion Control System NCH02 Upgraded Version DM100 3axis/4axis/5axis Handheld Offline Controller
Request pricing, MOQ and lead time for this product — we reply within 24 hours.
Product parameters
- Controlled Axis Number
- 3 axis/4 axis /5 axis
- Control Signal
- differential signal
- Drive System
- step motor/servo motor
- No Volt Protection
- support
- Breakpoint Processing Function
- 8
- External Power Supply Voltage
- 24V DC
- Manual Mode
- Continuous/point move/distance
- Interpolation Way
- line/arc
- Soft/Hard Limit
- support
- Max. Pulse Frequency
- 1M/S
- Support Language
- Power (kW): | other language
Description
TEBAK CNC engraving machine motion control system NCH02 upgraded version DM100 3axis/4axis/5axis handheld offline controller
1) 8-channel optocoupler isolated ordinary digital input interface; 2) 5-way optocoupler isolated ordinary digital output interface;LOre 3) 1 0-10V spindle speed control analog output interface (can be modified to PWM output); 4) Supports up to 5 channels of stepper motor control, and a single channel can control pulse output up to 150kHz. 5) Arm main control chip; 6) 3.5-inch TFT screen, resolution 480*320; 7) 19 operation keys; 8) The main control device is a 24V power input with a current capacity of not less than 0.5A; 9) (Supports U disk reading of G commands, and there is no requirement for the size of the G command file; 10) Equipped with a hand vein interfa
Detail images
