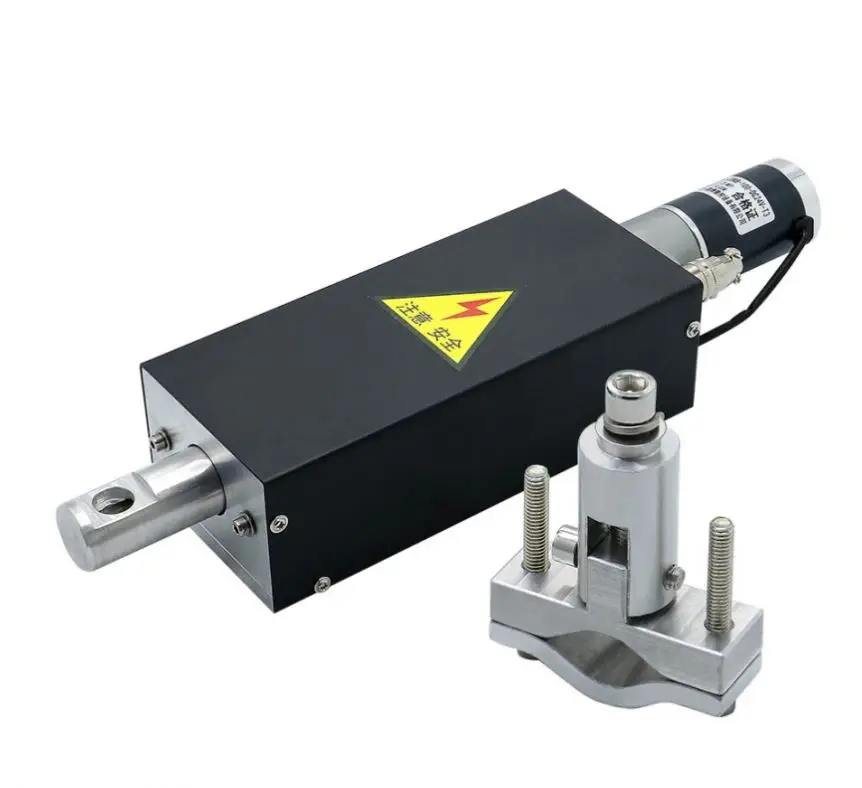

TEBAK 100mm DC24V Plasma Flame CNC Cutting Machine Cutting Torch Holder Z-axis Lifter
Request pricing, MOQ and lead time for this product — we reply within 24 hours.
Product parameters
- Dimensions
- 32*80*60
- Voltage
- DC24V
- Dimension(L*W*H)
- 320*80*60
- Weight (KG)
- 1.8KG
- Key Selling Points
- High precission
- Applicable Industries
- Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Shops
- Marketing Type
- Ordinary Product
- Machinery Test Report
- Provided
- Core Components
- Bearing, Gear
- Product name
- Lifting control device of Plasma cutting machine
- Lead screw
- 304 Stainless steel T-screw
- PLUG
- Four-pin aviation plug
- Clamp(Torch range)
- 12mm-38mm
- Application(assorting)
- CNC flame and plasma anti-collision gun features
- Color
- black
- Mounting hole size
- The center distance between the left and right holes is 40m
- Work trip
- 100mm
Description
TEBAK Flame And Plasma Cutting Lifter 100mm Range DC24V 4 Core Aviation Plug 1600mm/min 2400mm/min Suitable
Product Description
VR
Lift adjustment device: Our company uses a deceleration DC motor to control the lifting body, driving the cutting torch to lift. The key parts that affect the cutting accuracy of the entire machine support CNC plasma cutting positioning function. The internal lifting transmission of the elevator adopts 304 stainless steel T-shaped lead screws, with optical axes and linear sliders at both ends to ensure smooth and reliable vertical operation in the up and down directions;
Definition of flight control plug:
one
Foot - D+; (Positive pole of motor)
two
Foot - D -; (Negative pole of motor)
three
Foot - Zero; (Positioning normally open signal output)
four
Detail images
