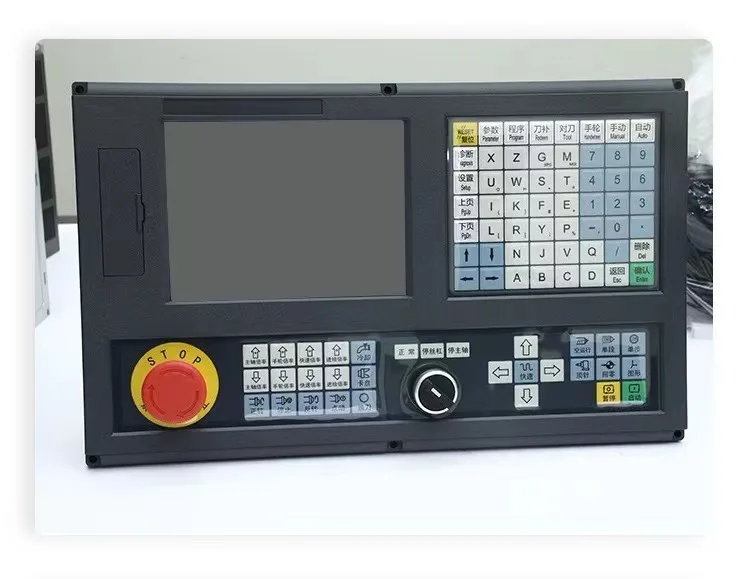

TEBAK Cnc Controller 3-5axis CNC Lathe Controller Instead of GSK/Fanuc Cnc Controller

Product parameters

number of control axis

3~4 (X,Y,Z,A) | Locate rapidly: | G00

The smallest programming:

0.001mm | Straight line interpolation | G01

The most programming:

Thread cut:±99999.999mm | Thread cut: | G02/03

Feed speed:

0.001~15m/min | high speed deep drilling loop | G73

Continuous manual:

one axis or two axis at the same time | point drilling loop | G81, G82

Line interpolation:

Straight line, arc, screw thread interpolation | Line cutting drilling loop | G73

Cutter compensation:

Length of the compansation,nose of tool compensation | Boring loop | G85, G86, G89

Spindle function:

gear,Double analog control,Rigid tapping | Tapping loop | G74, G84

Handwheel function:

panel,handheld | program loop | G22, G800

handwheel processing:

The handwheel processing function | local coordinate system: | G52

Screen protection:

The screen protection function | check skip | G31, G311

Communication function:

RS232,USB interface | polar programming | G15/16

Compensation function:

cutter, clearance, screw, radius compensation | metric and inch programming | G20/21

Edit program:

relative/absolute programming, hybird programming | program mode | G90/91

Preread function:

Preread 10,000 short straight lines | processing plane | G17, G18, G19

limit position function

hard limit, soft limit | workpiece coordinate system: | G54~G59

Password protection:

Multilevel password protection | tool length compensation | G43, G44, G49

Input/output:

I/O 24*24 | tool radius compensation | G45~G48

PLC programme:

All open PLC design | C tool radius compensation | G40, G41, G42

Acceleration and deceleration control:

Straight line,Index | Accurate positioning/continuous path processing | G60/G64

Description

Detail images
