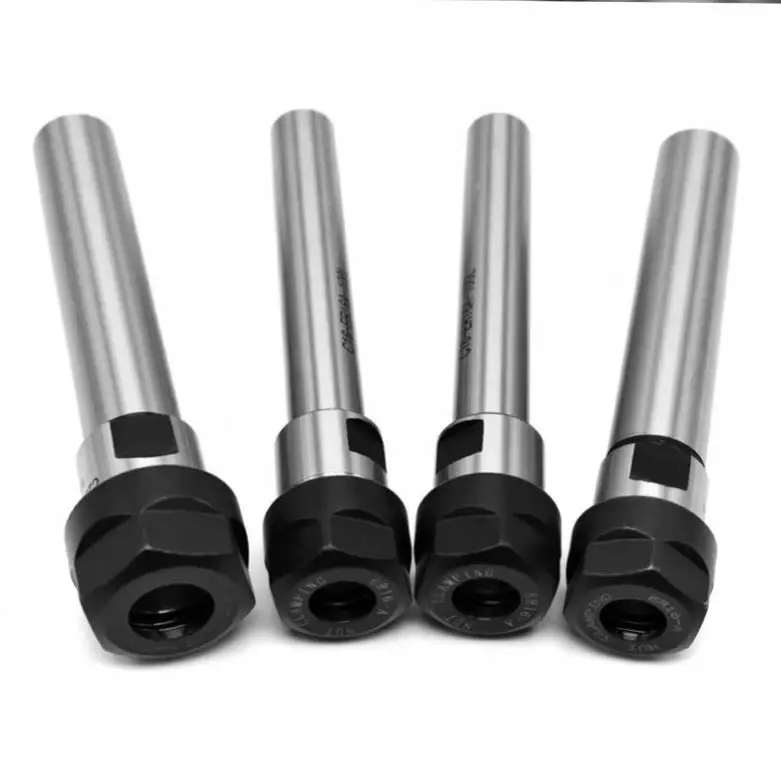

TEBAK Milling Machine Tool Straight Shank C8 C10 C12 C16 C20 C25 for ER8 ER11 ER16 ER20 Mini Nut Straight Shank Collet Chuck

Product parameters

Order No.

d | D | D1 | L | L1

ER8M-10×95-17

1-5 | 10 | 12 | 95 | 17

ER8M-10×120-7

1-5 | 10 | 12 | 120 | 17

ER8M-16×100-17

1-5 | 16 | 12 | 100 | 17

ER11M-12×95-28

1-7 | 12 | 16 | 95 | 28

ER11M-12×150-30

1-7 | 12 | 16 | 150 | 30

ER11M-16×100-19

1-7 | 16 | 16 | 100 | 19

ER11M-16×150-19

1-7 | 16 | 16 | 150 | 19

ER16M-12×50-36

1-10 | 12 | 22 | 50 | 36

ER16M-12×100-40

1-10 | 12 | 22 | 100 | 40

ER16M-16×80-37

1-10 | 16 | 22 | 80 | 37

ER16M-16×150-40

1-10 | 16 | 22 | 150 | 40

ER16M-20×50-35

1-10 | 20 | 22 | 50 | 35

ER16M-20×100-25

1-10 | 20 | 22 | 100 | 25

ER16M-20×150-25

1-10 | 20 | 22 | 150 | 25

ER20M-16×60-40

1-13 | 16 | 28 | 60 | 40

ER20M-16×100-40

1-13 | 16 | 28 | 100 | 40

ER20M-16×150-40

1-13 | 16 | 28 | 150 | 40

ER20M-20×80-40

1-13 | 20 | 28 | 80 | 40

ER20M-20×100-40

1-13 | 20 | 28 | 100 | 40
