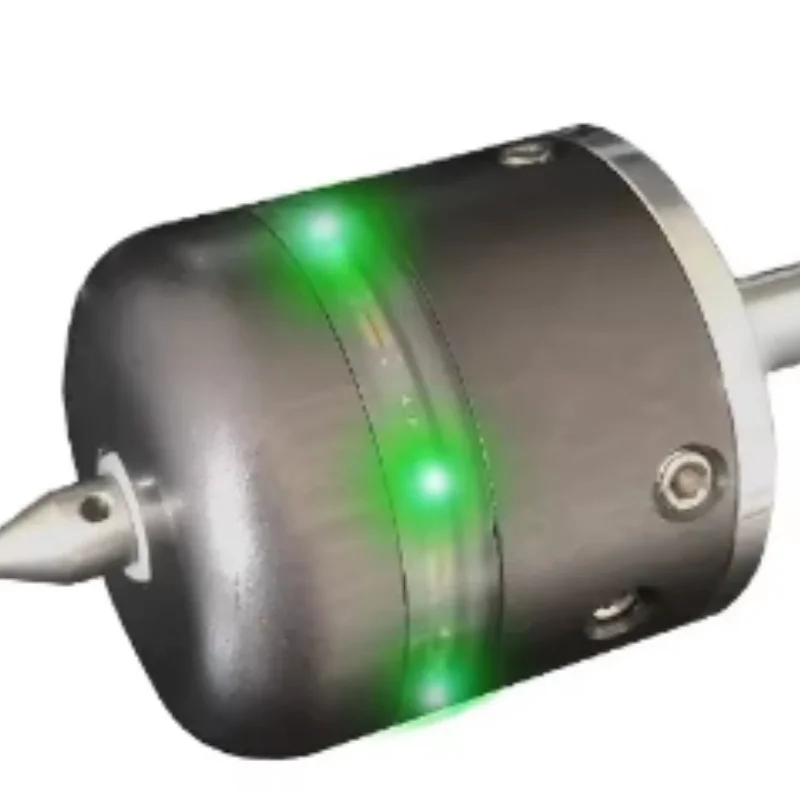

3D Edge Finder CNC Machining Center CNC Milling Machine Three-coordinate Precision Centering Rod Accuracy 0.01mm

Notice:

This 3D edge finder is only suitable for detecting metal

Packing:

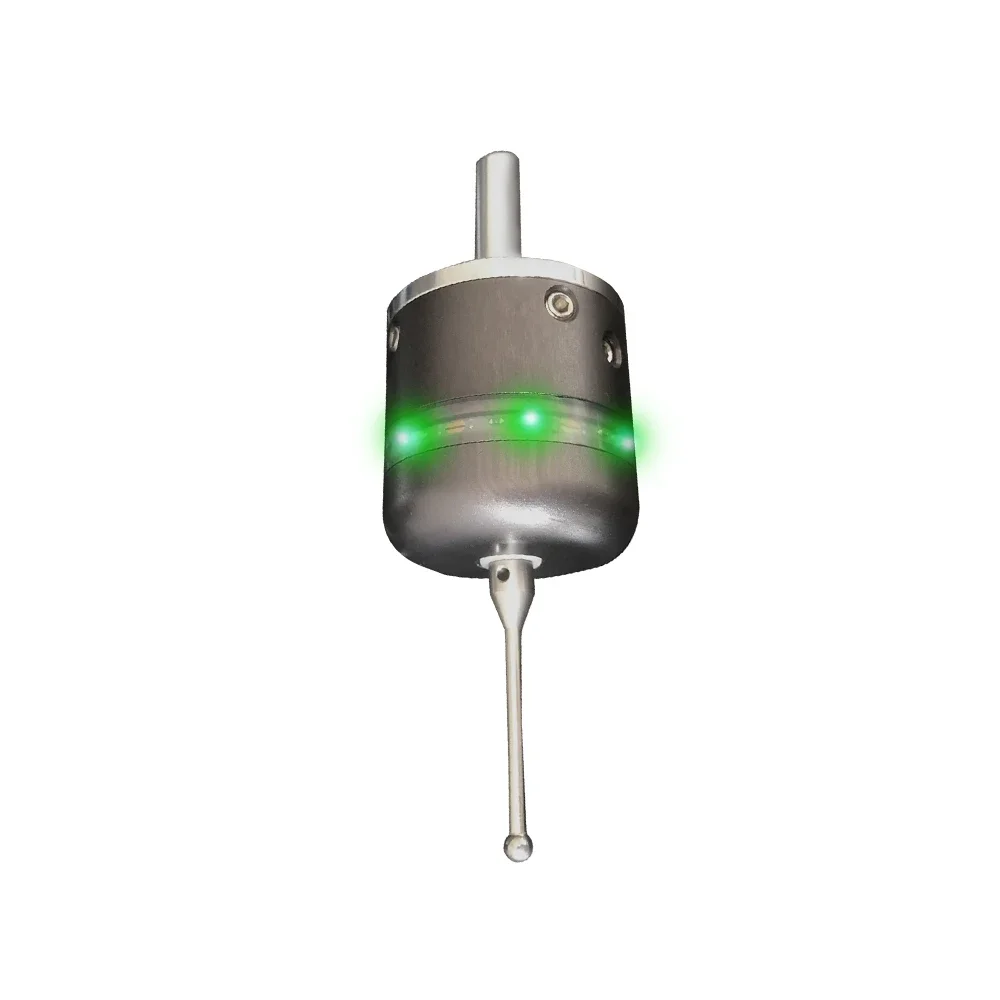

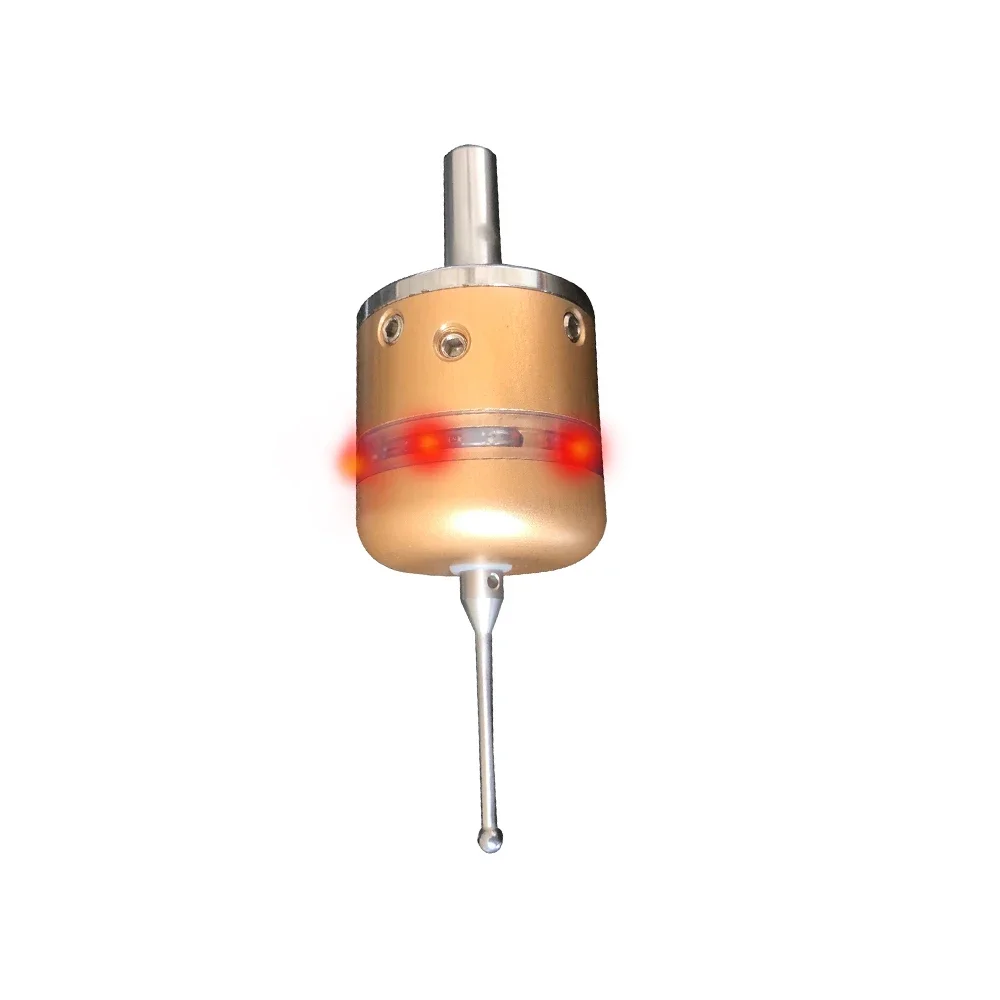

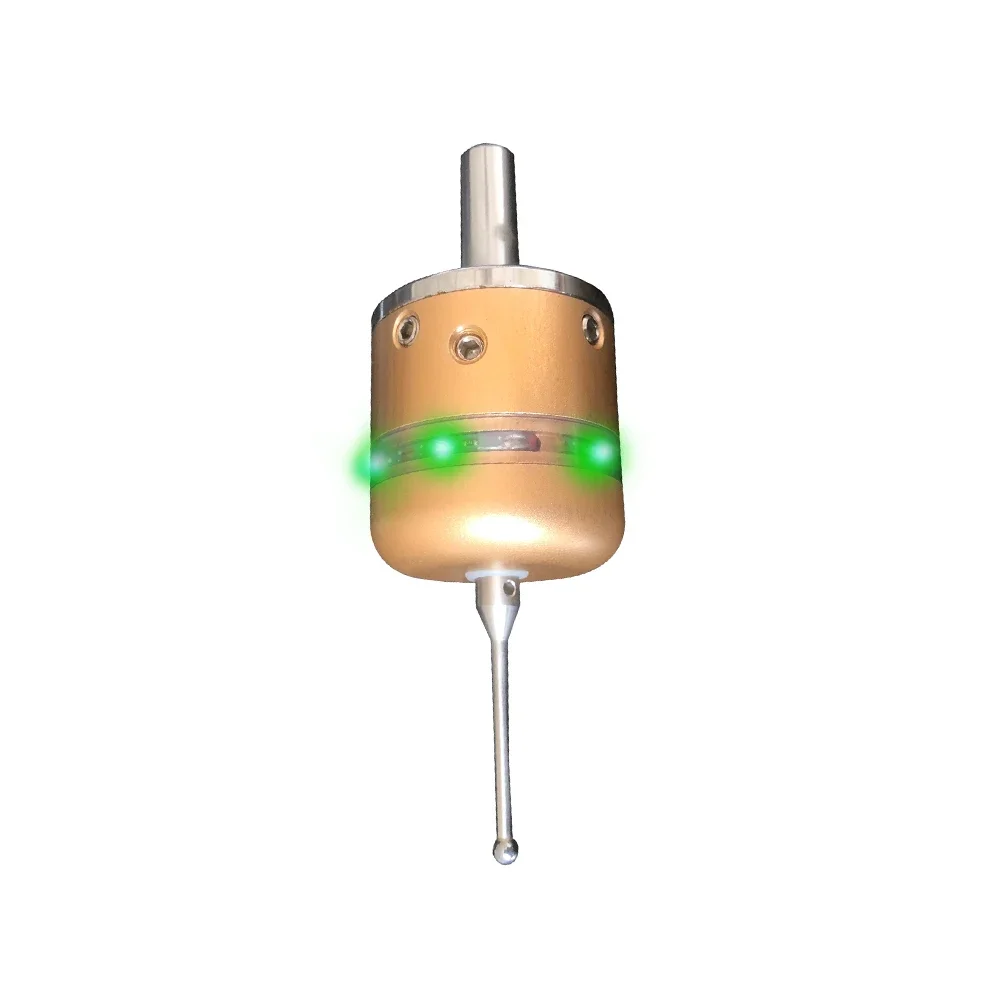

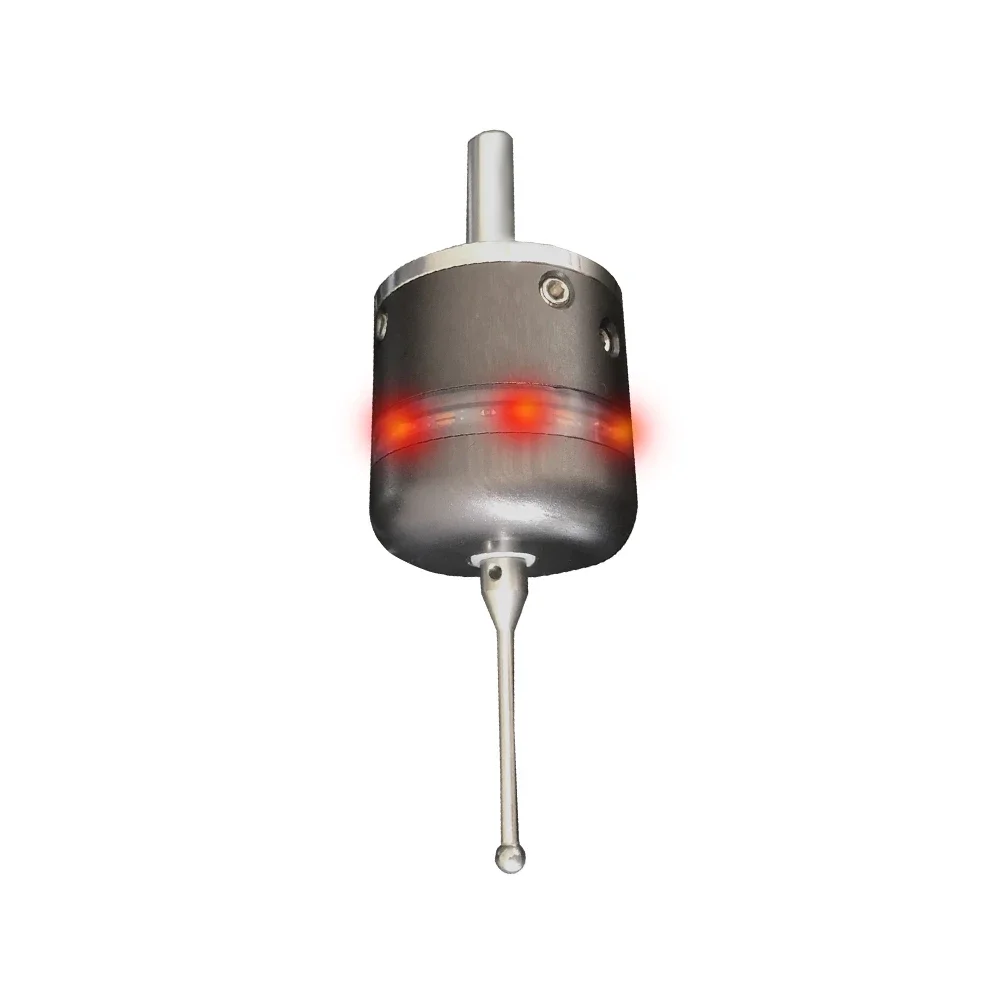

1pcs 3d photoelectric edge finder (with rose gold red light / metal gray red light / rose gold green light / metal gray green light 4 models are available)

Product Description:

01·Clamp the probe on the machine spindle through the tool holder, and loosen it slightly.

The two opposite fastening screws at the bottom can adjust the four symmetrical adjustment tops on the side.

The ball head of the wire adjustment probe coincides with the center of the spindle.

02·There is no need to rotate the spindle when measuring the centering, and the centering measurement can make the probe rotate

Turn 180° to make the measurement more accurate.

03·The probe supports measurement in three
