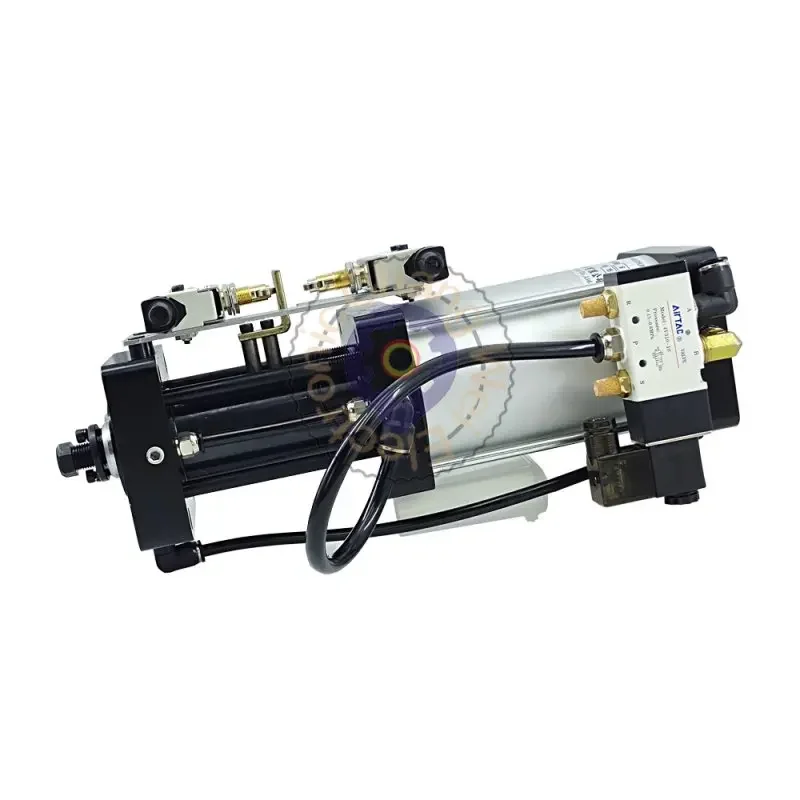

CNC 4.5Ton (4500 Kg) 15mm of air Cylinder for BT30 or BT40 Spindle ATC CNC Milling Machine Spindle Booster Cylinder Aircylinder

Packing list:

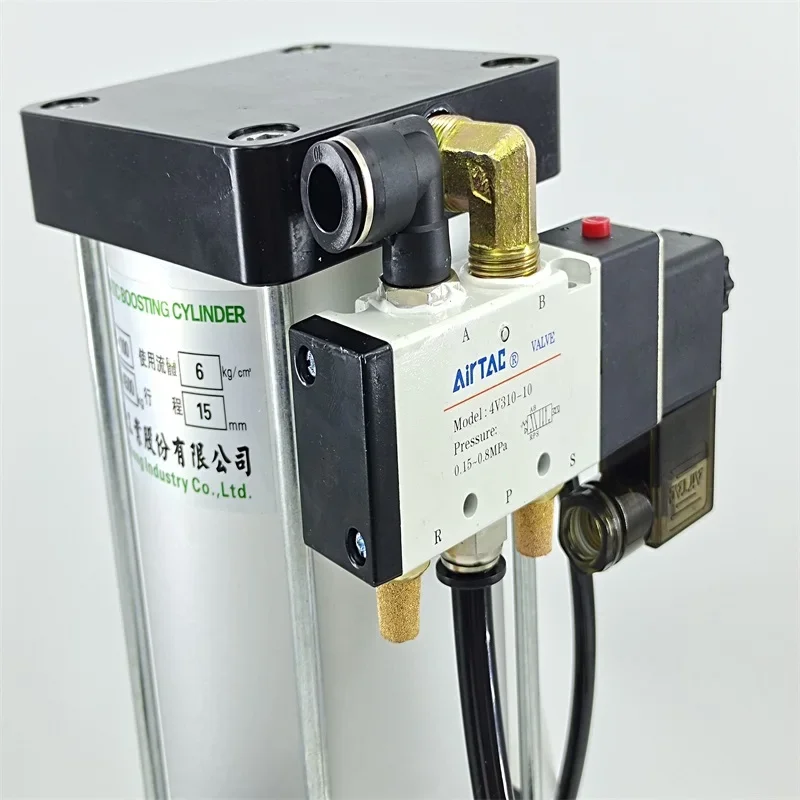

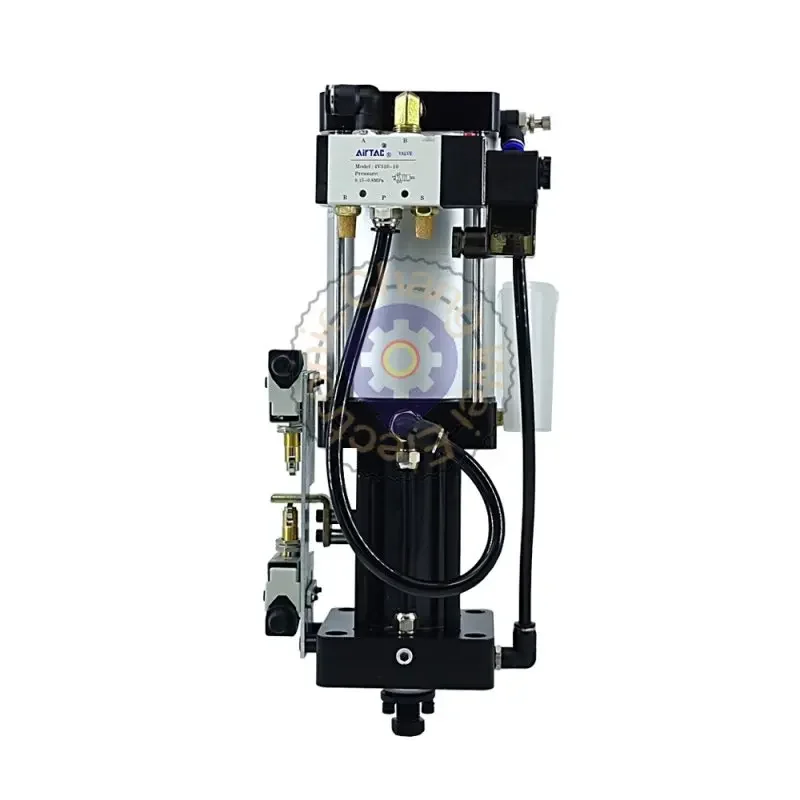

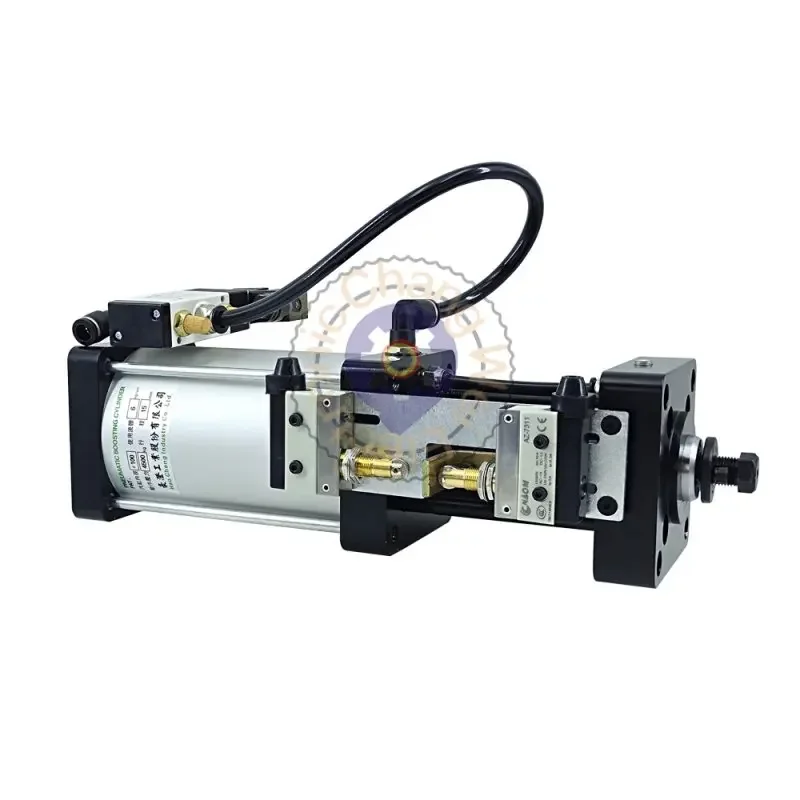

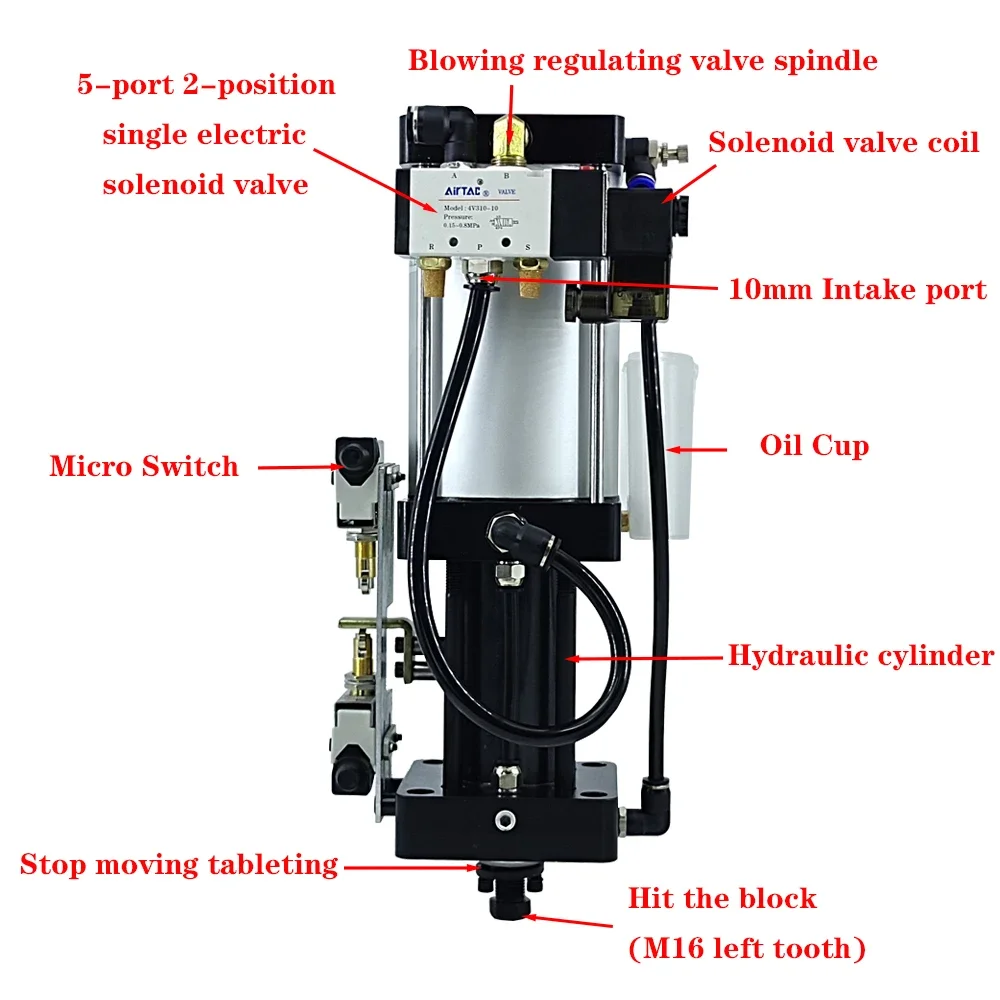

1PCS Knife cylinder as the following photo

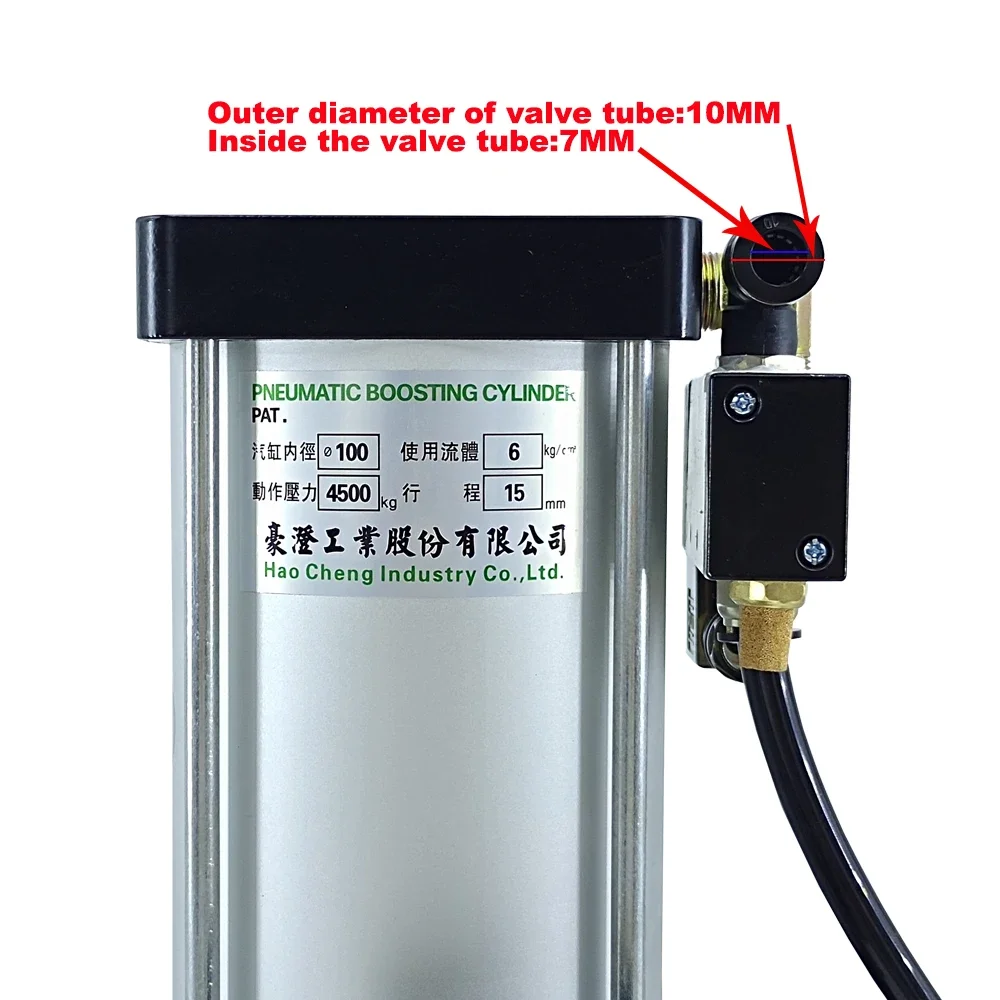

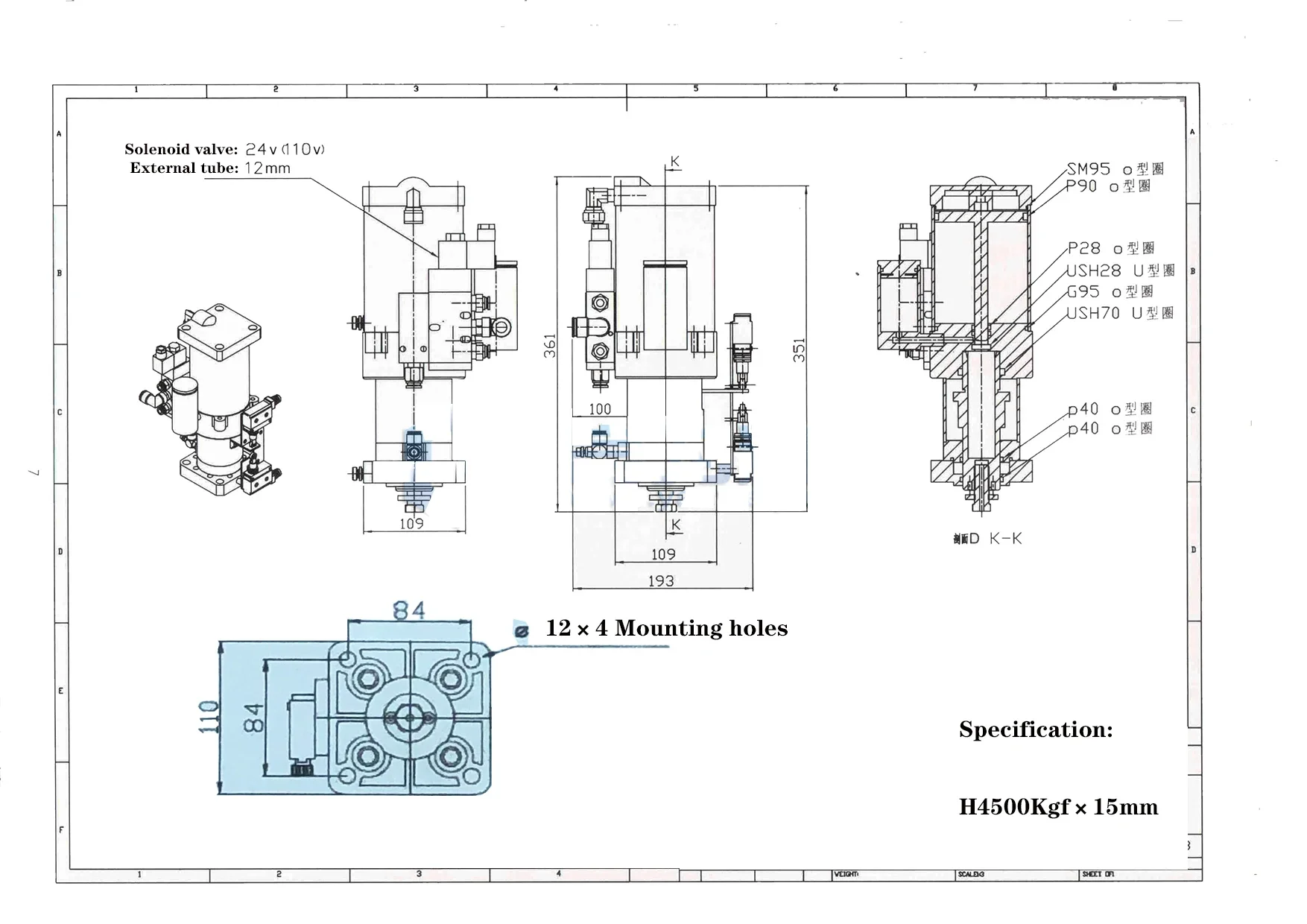

Specification:

1.Knife output: 4500KG

2.Knife stroke: 15MM

3.Cylinder inner diameter: 100mm

Installation Precautions:

1. Make sure that the spindle end cannot be in contact with the tip of the pressurized cylinder when there is no broach.

2. When the spindle does not have a broach, the gap between the spindle end and the bumper end of the punch cylinder must be kept above 3mm.

3. After adjusting the amount of punching, it is necessary to tighten the two M5 bolts on the stopper.

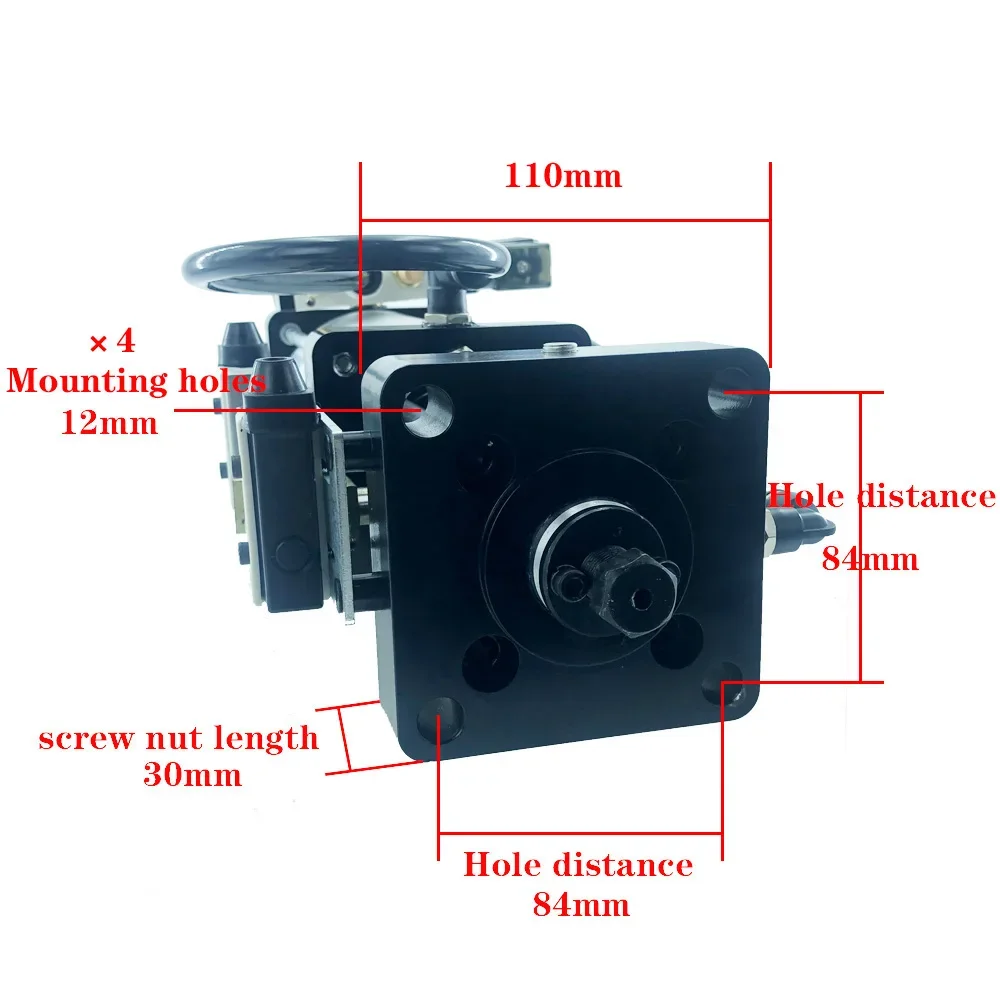

4. It is recommended to use M10X55L for the knife cylinder and the bolts fixed on the fixed seat.

5. The air intake pressure should be maintained at 6kg/cm~7kg/cm.

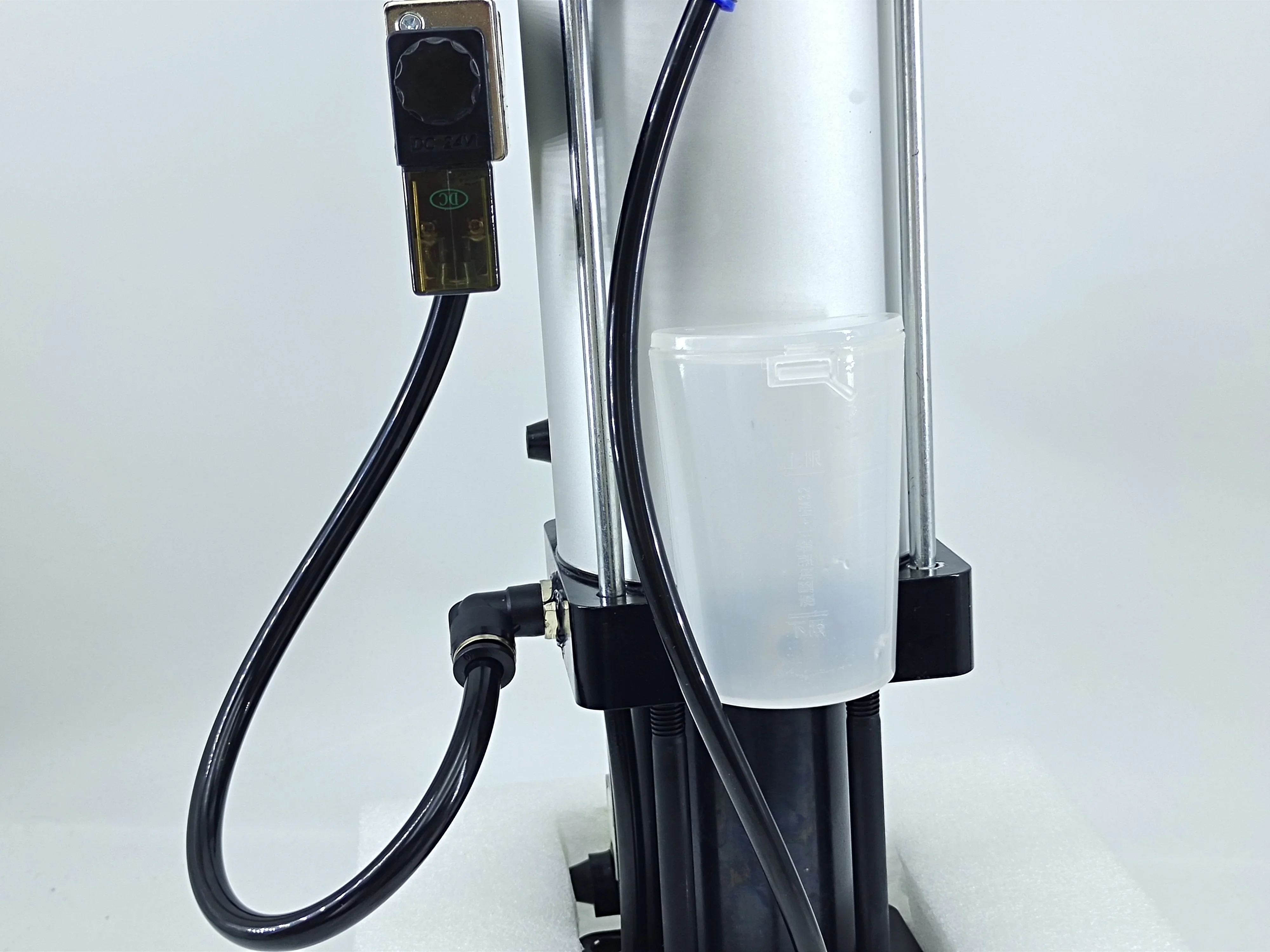

6. The safe minimum amount of oil in the oil cup shall not be less than 1/2.

7. Use
