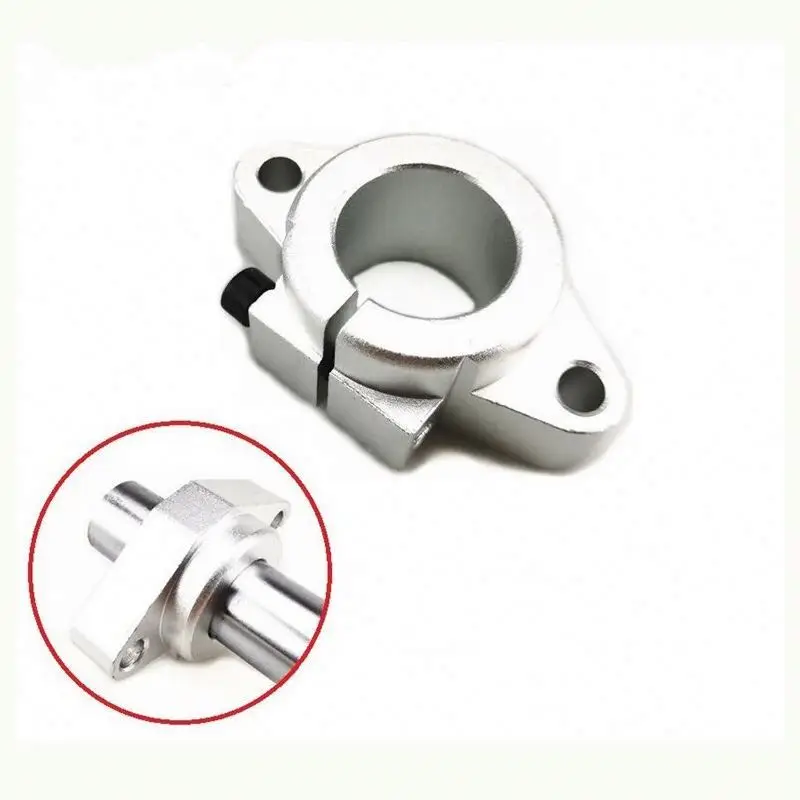

D-19 Shaped Mounting Bracket Linear Oval Shaft Support Flanged Supports Linear Shaft SHF10 SHF12 SHF13 SHF16 SHF20 SHF25 SHF30
Request pricing, MOQ and lead time for this product — we reply within 24 hours.
Product parameters
- Model
- SHF25 SHF30 SHF35 SHF40 Shaped Mounting Bracket Linear
- MOQ
- 5pcs
- Package included
- 1 pcs SHF25 or SHF30 or SHF35 or SHF40
- Model
- Shaft diameter | W | L | T | F | G | B | S | Locking bolt
- SHF10
- 10 | 43 | 10 | 0 | 24 | 20 | 32 | 5.5 | M4
- SHF12
- 12 | 47 | 13 | 0 | 28 | 25 | 36 | 5.5 | M4
- SHF13
- 13 | 47 | 13 | 0 | 28 | 25 | 36 | 5.5 | M4
- SHF16
- 16 | 50 | 16 | 10 | 31 | 28 | 40 | 5.5 | M4
- SHF20
- 20 | 50 | 20 | 12 | 37 | 34 | 48 | 7 | M5
- SHF25
- 25 | 70 | 25 | 15 | 42 | 40 | 56 | 7 | M5
- SHF30
- 30 | 80 | 30 | 18 | 50 | 46 | 64 | 9 | M6
- SHF35
- 35 | 92 | 35 | 22 | 58 | 50 | 72 | 12 | M8
- SHF40
- 40 | 102 | 40 | 26.7 | 67 | 56 | 80 | 12 | M10
- SHF50
- 50 | 122 | 50 | 29 | 83 | 70 | 96 | 14 | M12
- SHF60
- 60 | 140 | 60 | 35 | 95 | 82 | 112 | 14 | M12
Description
Specifications
TEBAK D-19 SHF35 SHF40 SHF25 SHF30 Shaped Mounting Bracket Linear Oval Shaft Support Flanged Supports Linear Shaft End Mount
Model
SHF25 SHF30 SHF35 SHF40 Shaped Mounting Bracket Linear
MOQ
5pcs
Package included
1 pcs SHF25 or SHF30 or SHF35 or SHF40
Model
Shaft diameter
W
L
T
F
G
B
S
Locking
bolt
SHF10
10
43
10
0
24
20
32
5.5
M4
SHF12
12
47
13
0
28
25
36
5.5
M4
SHF13
13
47
13
0
28
25
36
5.5
M4
SHF16
16
50
16
10
31
28
40
5.5
M4
SHF20
20
50
20
12
37
34
48
7
M5
SHF25
25
70
25
15
42
40
56
7
M5
SHF30
30
80
30
18
50
46
64
9
M6
SHF35
35
92
35
22
58
50
72
12
M8
SHF40
40
102
40
26.7
67
56
80
12
M10
SHF50
50
122
50
29
83
70
96
14
M12
SHF60
60
140
60
35
95
82
Detail images
