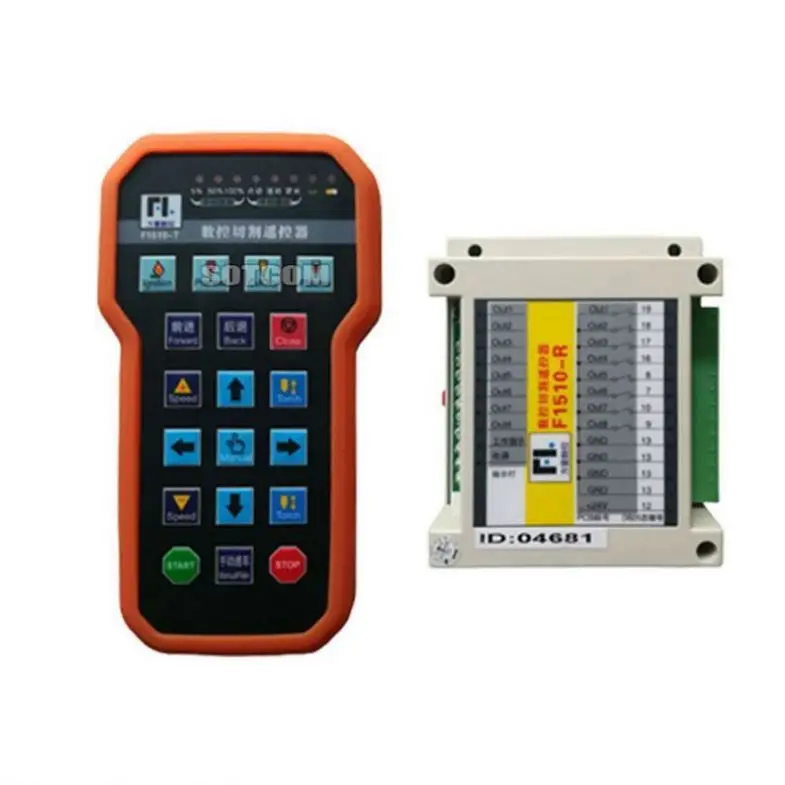

TEBAK F1510T F1520T F1521T CNC Cutting Machine Wireless Remote Control Wireless Remote Control F1510 for F2100 Controller
Request pricing, MOQ and lead time for this product — we reply within 24 hours.
Product parameters
- Applicable Industries
- Hotels, Machinery Repair Shops, Manufacturing Plant, Home Use, Printing Shops, Construction works , Energy & Mining, Other
- Video outgoing-inspection
- Provided
- Machinery Test Report
- Provided
- Weight(KG)
- 2
- Warranty
- 3 months
- Showroom Location
- None
- Product Name
- Remote control
- Model

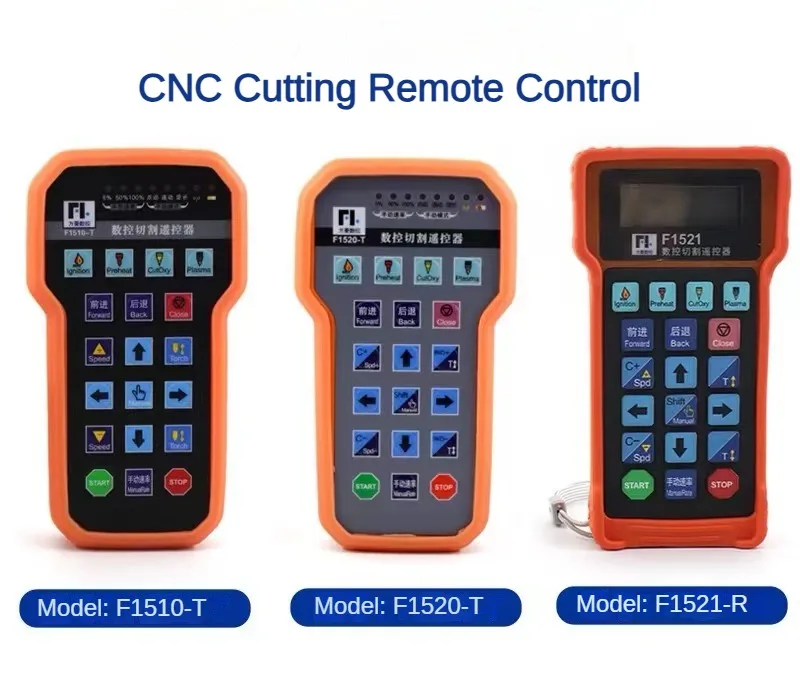

- F1510T/F1520T/F1521T
- Transmission distance
- 30 meters
- CANH
- CAN Communication H
- CANL
- CAN Communication L
- Terminating resistor
- 120 Ohm resistance
- GND
- 24V power ground
- +24V
- 24V power ground
- Service
- Online service
Description

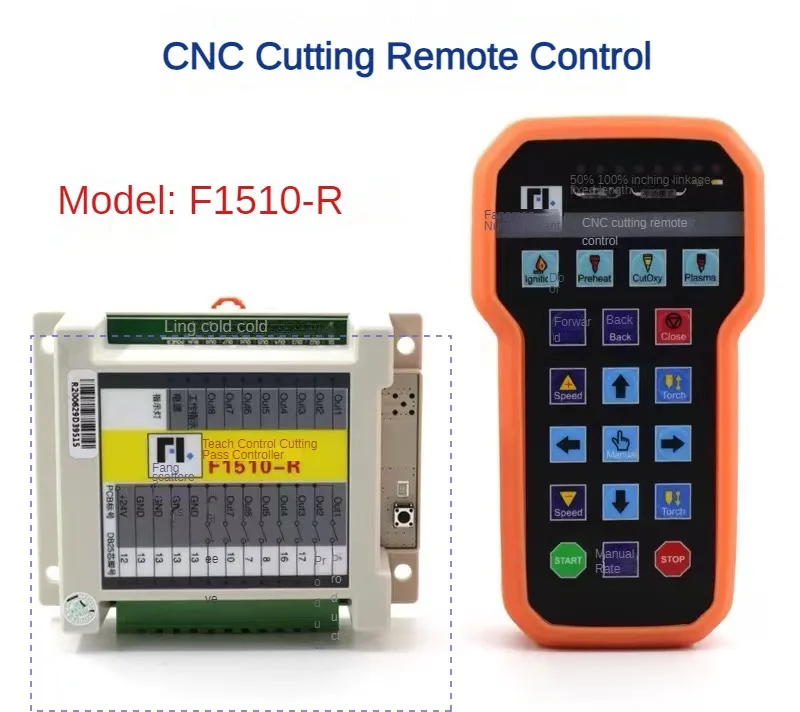

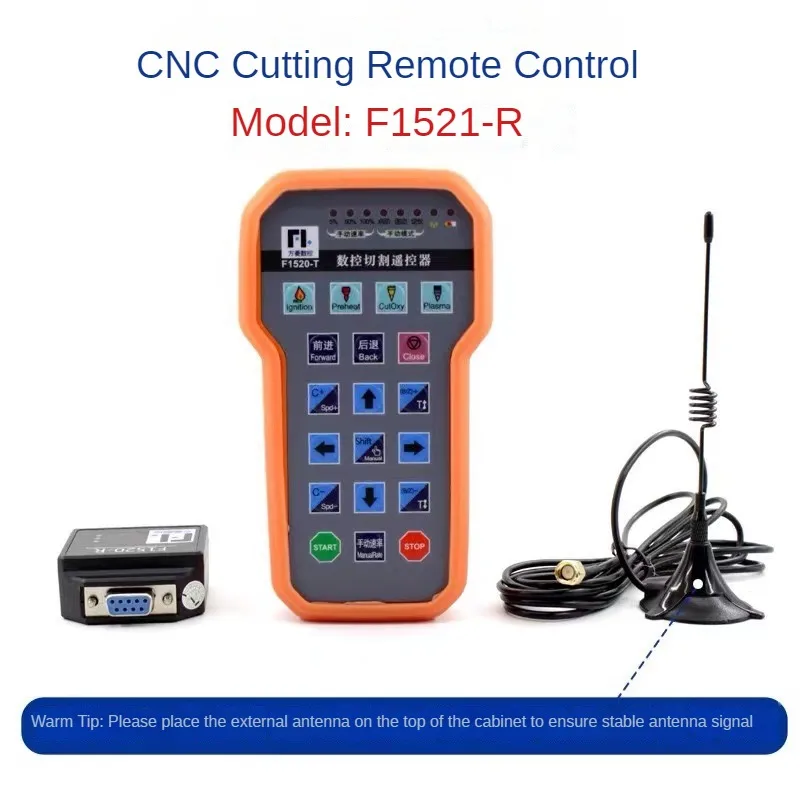

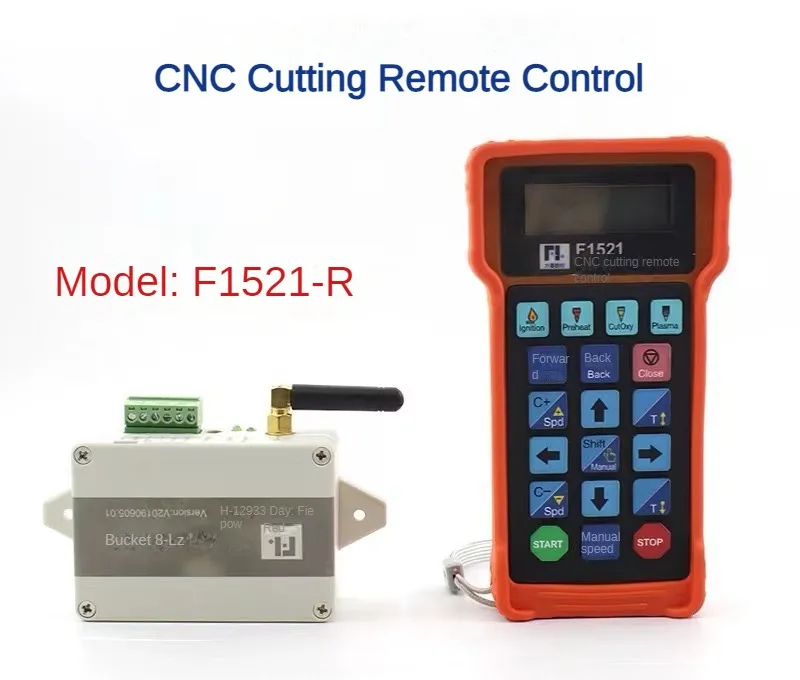

TEBAK F1510T F1520T F1521T Plasma Remote Controller CNC Control System CNC Cutting Machine Wireless Remote Control
Product Description
Specification:
1. 433MHz free ISM band license-free trial;
2. Remote control distance> 30m, at least not less than 0.5m;
3. Hardware error detection, software optimization algorithm, two-way communication to ensure stable and reliable communication;
4. The sending and receiving modules are matched according to the address, the address can be set manually, and the maximum
support is 128 addresses;
5. The wireless remote control sending module is powered by dry batteries and can be used for at least 6 months;
6. The receiving module adopts 8421 port mode or separate IO mode, with a maximum of 16 output p orts.
Applicable Industries
Hotels, Machi
