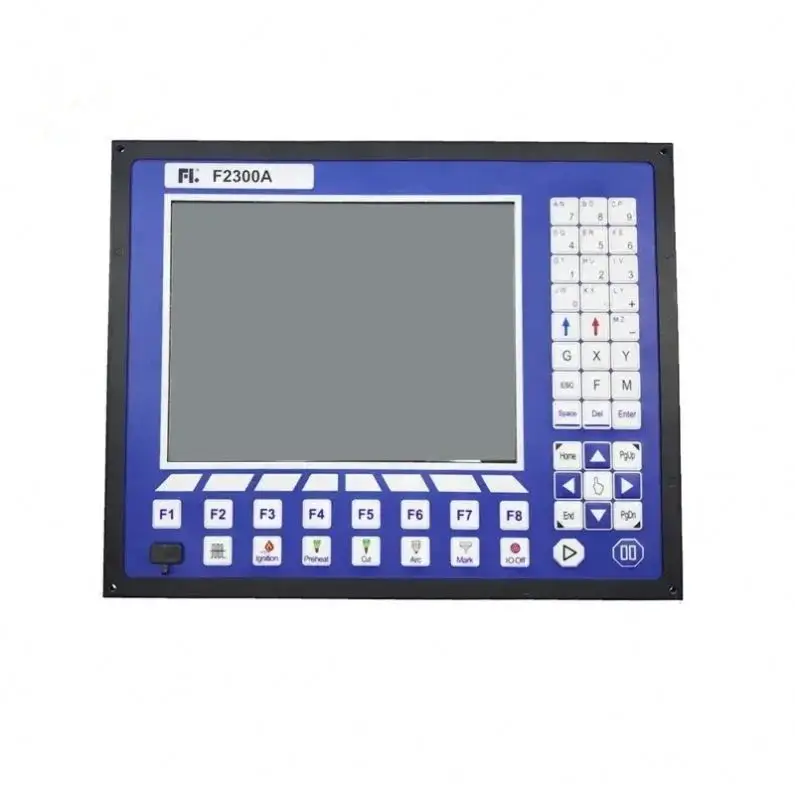

TEBAK High Quality Cnc Machine Tools F2300A New Version CNC Plasma Controller 2Axis Digital CNC Controller for Digital Control

TEBAK New high quality CNC control system 2 axis controller F2300A for flame and plasma cutting machines

Technical index:

1)Number of control axes: 2-axis linkage (three-axis or four-axis can be customized)

2) Control accuracy: ±0.001mm

3) Coordinate range: ± 99999.99mm

4) Maximum pulse frequency: 200KHz; Maximum operating speed: 15 m/min

5) Maximum number of program lines: 80,000 lines

6) Maximum single program: 4M

7) Time resolution: 10ms

8) System working power: DC 24V DC power input, power is greater than 80W.

9) System working environment: temperature -10℃ to +60℃; relative humidity 0-95% non-condensing

10) The maximum power of the drive arc voltage height-adjusting motor: 45W (Note: only with T system). If you need more power, you can choose up to 200W.
