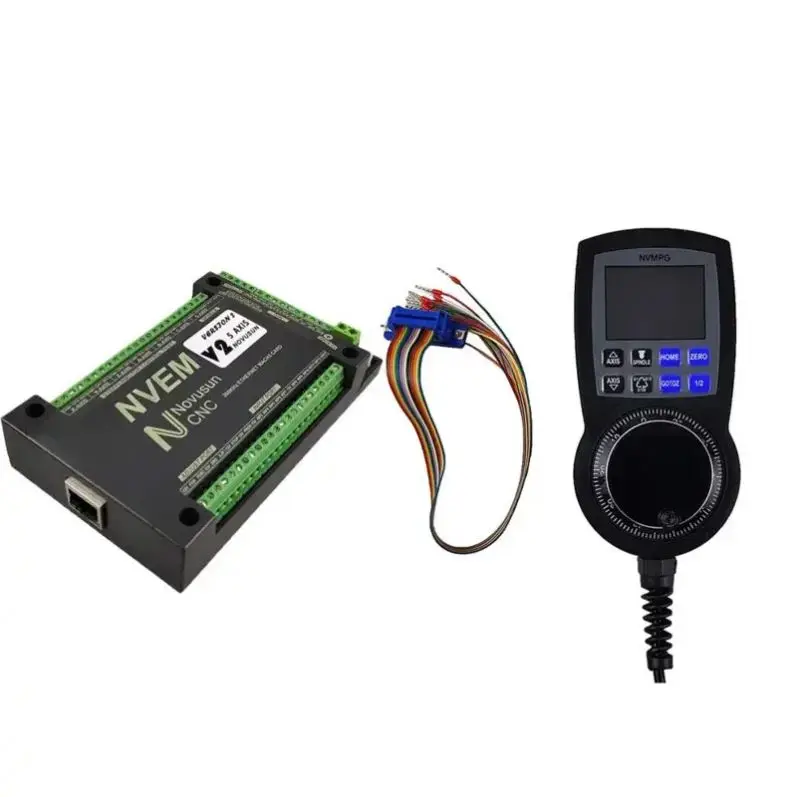

TEBAK Cnc Motion Control Card 3/4/5/6Axis UC300 I/O Board Wiring Board With LCD Handwheel NVMPG CNC Mach3 Controller Kit

TEBAK NVEM V5 CNC Mach3 Controller NVMPG Handwheel 6Axis Motion Controller Adopts The ARM Design Framework Cyclmotion

Size

NVEMV2.1 motion controller is with the sealed shell structure,there are 4pcs setting holes

at the bottom.We can fix 4pcs 4mm diameter holes at the cabinet,and install the controller into

the cabinet.The controller appearance as the Figure 1-1 and Figure 1-2 show:

The products overall size is 163.1mm*80.8mm*27.8mm;

The bottom install size is 101.4mm*39.5mm.

Power

Performance parameters:

Support Ethernet;

12 ports photoelectric isolated input interface for ordinary digital data;

10 ports photoelectric isolated output interface for ordinary digital data;

1 port 0-10V spindle speed analog output interface(can change to PWM output);

can support 3-6 axis stepper sy
