TEBAK 3axis M150-4axis Handle Type Motion Control System DM500 3 Axis/4 Axis Offline Motion Controller Independent Controller

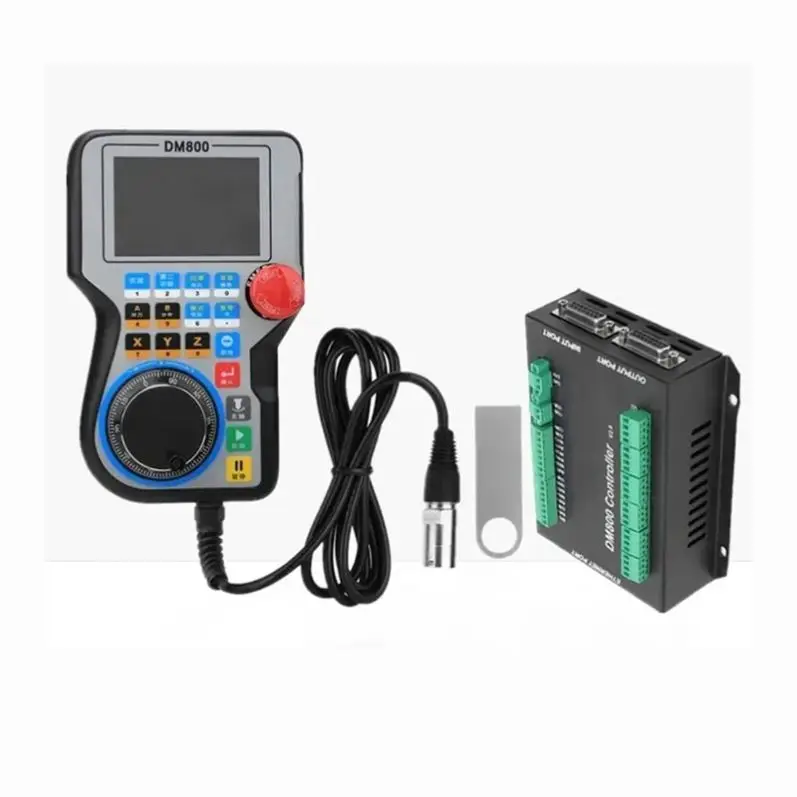

TEBAK CNC handle controller motion control system DM800 3/4/5 axis 3.8 inch screen plus emergency stop button supports G code

Product Package

1 X Handle Controller

1 X Terminal board

1 X U disk

Product Description

Introduction:

DM800 is a 3/4/5axis motion controller that we have spent 2 years designing.

DM800 is a CNC system without a computer.Just need the USB flash drive in the G-CODE file,

DM800 can read G files and run G files.

Features:

Read G code from U-DISK;

Built-in SD card

Ethernet communication from the handle to the motherboard.

No computer operation required;

20-port optically isolated input interface;

12-port optically isolated output interface;

1-port 0-10V spindle speed analog output interface (can be changed to PWM output);

Support 5-axis stepping system
