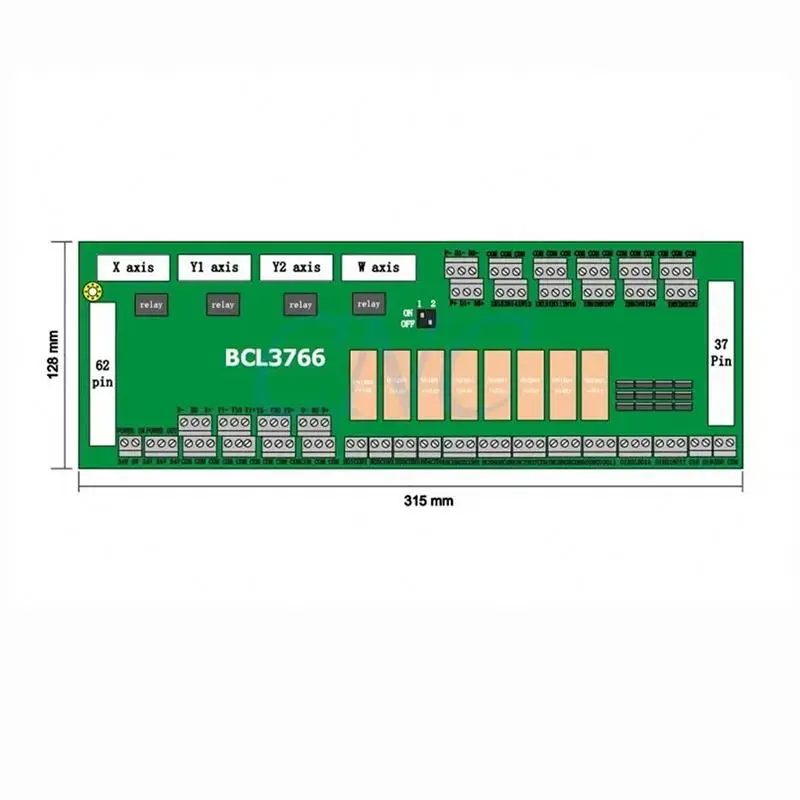

TEBAK CNC FSCUT2000 Fiber Laser Cutting Control System BCL3766 Original IO Adapter Board

TEBAK CNC FSCUT2000 fiber laser cutting control system BCL3766 original IO adapter board

The BCL3766 controller is the most important part of the fiber optic cutter control system. It enables the correct operation of the device, coordinates the operation of components, including motors, sensors, other controllers.

The BCL3766 external I/O card is installed using a bus, or can be permanently installed. It has a DM62M and DB37M interface on two sides, which corresponds to JP1 and JP2 of the BMC1604V2 control board.

Supported cutting systems:

FSCUT2000

FSCUT3000S

FSCUT4000

Output signal range

0V~ 10V

Maximum output current load

50mA

Maximum output capacitive load

350pF

Input impedance

100KΩ

Maximum bipolar error

/-50mV

Resolution factor

10mV

Conversion speed
