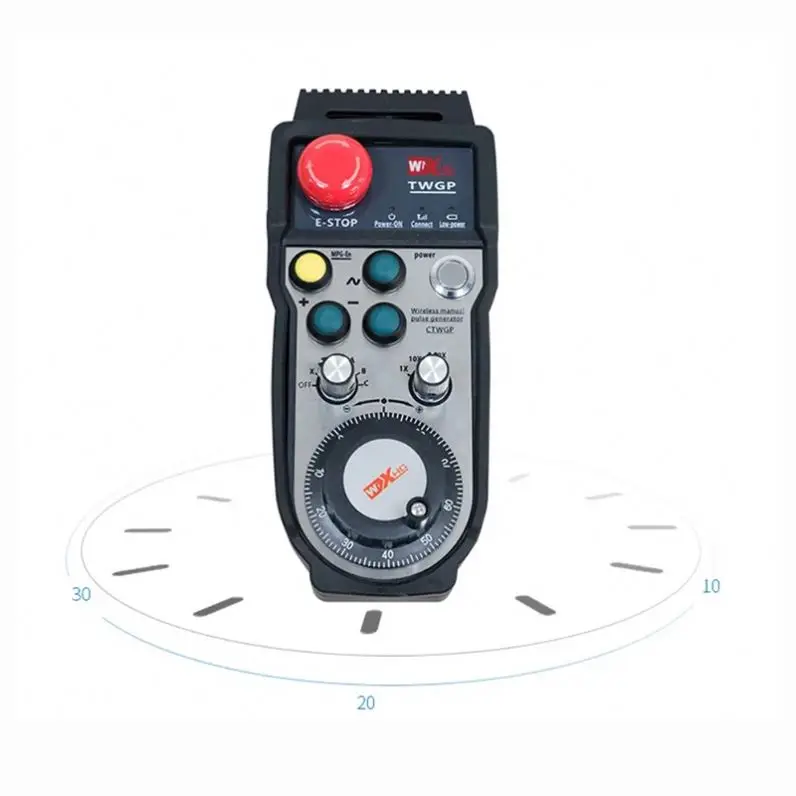

TEBAK 25PPR 100PPR CNC Remote Controller Manual Pulse Generator CNC Machining Parts MPG Wireless Handwheel for CNC Systems

Product parameters

type

Wireless handwheel (instead of wired handwheel)

Number of axes

6

Applicable system

FANUC,Mitsubishi,Siemens,Higerman,Fagor,etc.If the system you use is not listed here, please refer to the table

Emergency stop button

Yes

Communication frequency

433MHZ

anti-interference

The same range supports 32 sets of equipment to operate stably at the same time

Pulse signal

Support differential and non differential, NPN, PNP and other signal types

Reliant

Support point to point, binary code, gray code, etc. for axis selection and ratio signal

Parameters related to model selection

Please let us know your model number after selection

Signal transmission distance

40 meters wireless operating distance

parameter

A pulse encoder, 100 pulses/turn

1

Appearance of the product: A /B/C/S/E represents the model of A/B/C/S/E .

2

TWGP: means with emergency stop button; WGP: means without emergency stop button

3

Pulse signal standard: 01:Represents 5V, 25 mA; A, B pulse signal output: 100PPR 03:Represents 5V, differential signal; A, A-; B, B-; pulse signal output:100PPR 02:Represents 12V, 5 mA; A, B pulse signal output: 25PPR (suitable for Mitsubishi system) 04:Open circuit output; A, B pulse signal. Low le

4

The number of axes supported by the handwheel: 5 means 5 axes; 6 means 6 axes; 7 means 7 axes

5

Handwheel axes selection output mode: A means point-to-point output; B means coded output (support binary, gray code, etc.)

6

Handwheel maglification output mode: A means point-to-point output; B means coded output (support binary, gray code, etc.)

7

Expansion buttons on the handwheel: 3 means supporting 3 expansion buttons; X means that the magnification signal is a special output mode of pulse output, which is unique to Siemens systems. No X means that the magnification signal is an ordinary signaloutput;

8

Indicates the working voltage of the wireless signal receiver: 05 means 5V power supply; 12 means 12V power supply; 24 means 24V power supply
