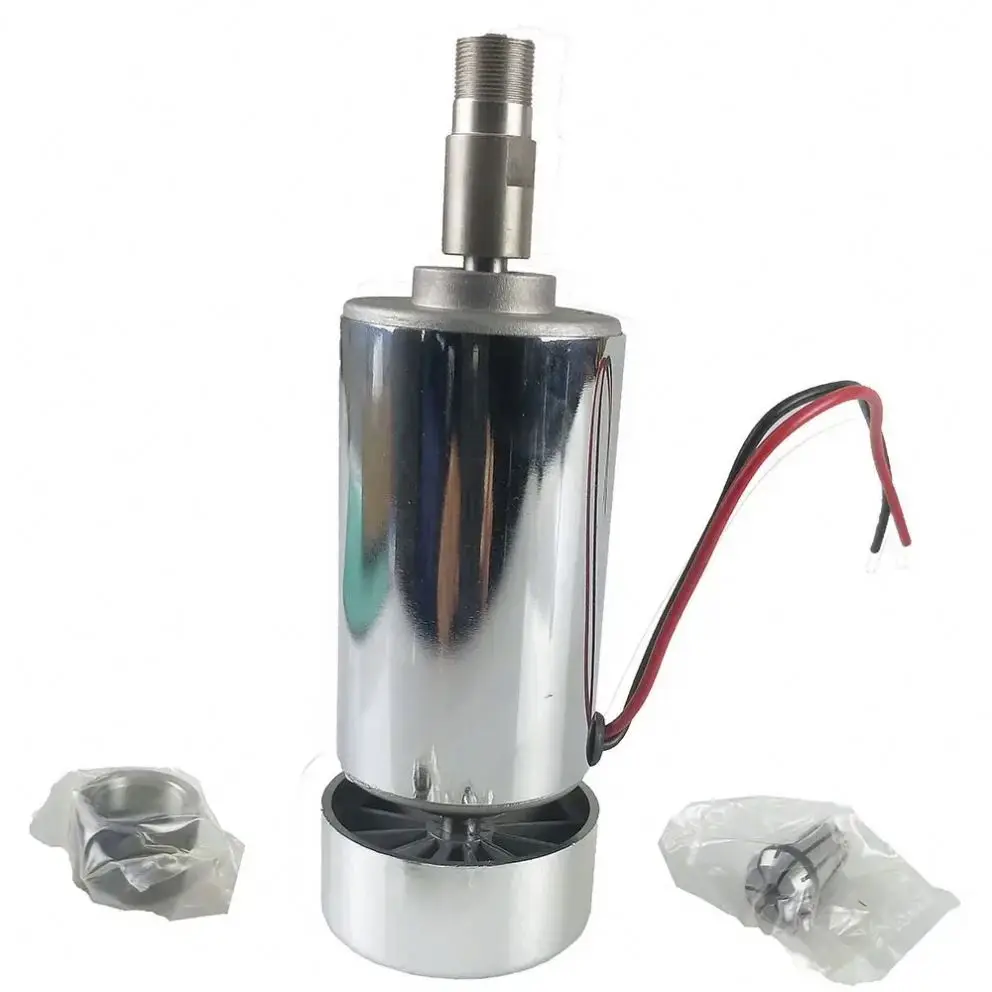

TEBAK 12V/48V 300W Engraving Machine Spindle Motor Air-cooling Cnc Spindle DC Motor CNC Engraving ER11 High Speed Motor Spindle

TEBAK 12V/48V 300W Engraving Machine Spindle Motor Air-cooling Cnc Spindle DC Motor CNC Engraving ER11 High Speed Motor Spindle

Product Package:

1 x 300W/400W Spindle Mot 1 x ER11 tool chuck(3.175mm 1/8)

Product Description:

300W spindle motor Features: 1. Work voltage: 12-48vdc 2. Rotation speed: 3000-12000r/min (12V-3000r/min ,24V-6000r/min ,36V-9000r/min ,48V-12000r/min ) 3. Chuck: part of the length of cutter position ( 35mm, containing nuts and sandwich 43mm ) 4. Power: 300w 5. Torque:230mN.m 6. Insulation resistance:>2Megohm 7. Dielectric strength:400v 8. Diameter:52mm 9. Diameter of axis collect holder:16mm 10. Repeat accuracy: 0.01-0.05mm

Appearance and size:
