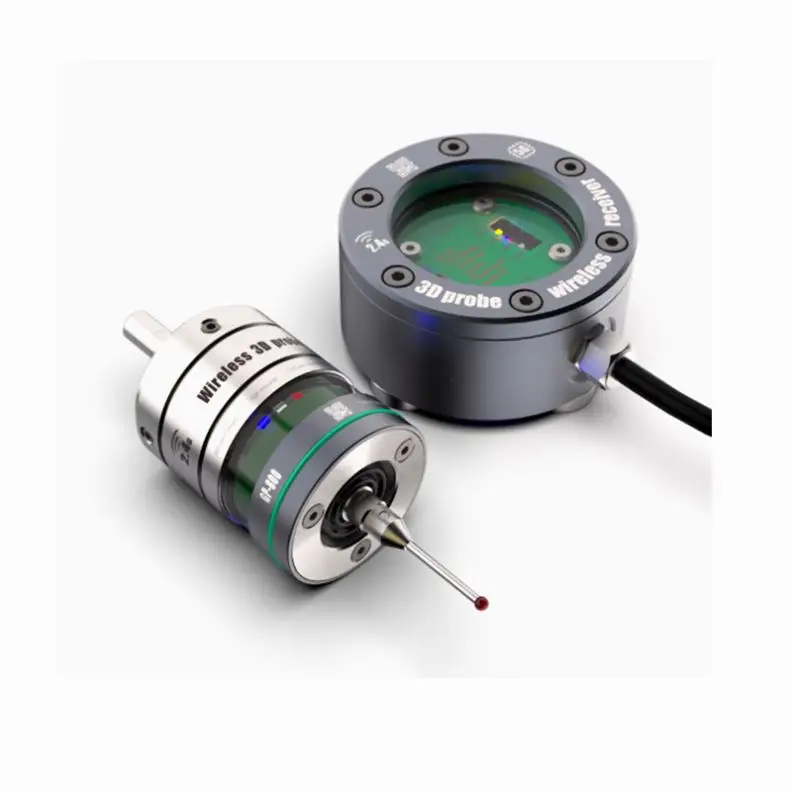

TEBAK GP-800 Wireless Probe Tool CNC Numerical Control Wireless Probe Machine Tool 3D Edge Finder Centering Wireless 3D Probe

TEBAK GP-800 Wireless Probe Tool CNC Numerical Control Wireless Probe Machine Tool 3D Edge Finder Centering Wireless 3D Probe

Parameters:

Material: 304 7075

Outer diameter of edge finder: 42mm

Probe thread: M4mm

Probe length: 30mm as standard, user-replaceable

Probe ball head: φ3mm ruby

Clamping diameter: 8mm

Clamping Length: 25mm

Repeat accuracy: 0.001mm

XY stroke: 3mm (will be damaged if exceeding the stroke)

Z stroke: 3mm (will be damaged if exceeding the stroke)

Wireless transmission mode: wireless mode

Wireless transmission distance: 5m (3 sets of adjustable dial chips for code matching)

Battery: 14250*2

Offline work: Yes (can be used as a photoelectric centering rod)

Wireless work: Yes (can be used with the system for automatic centering)

Connection mode: Wireles
