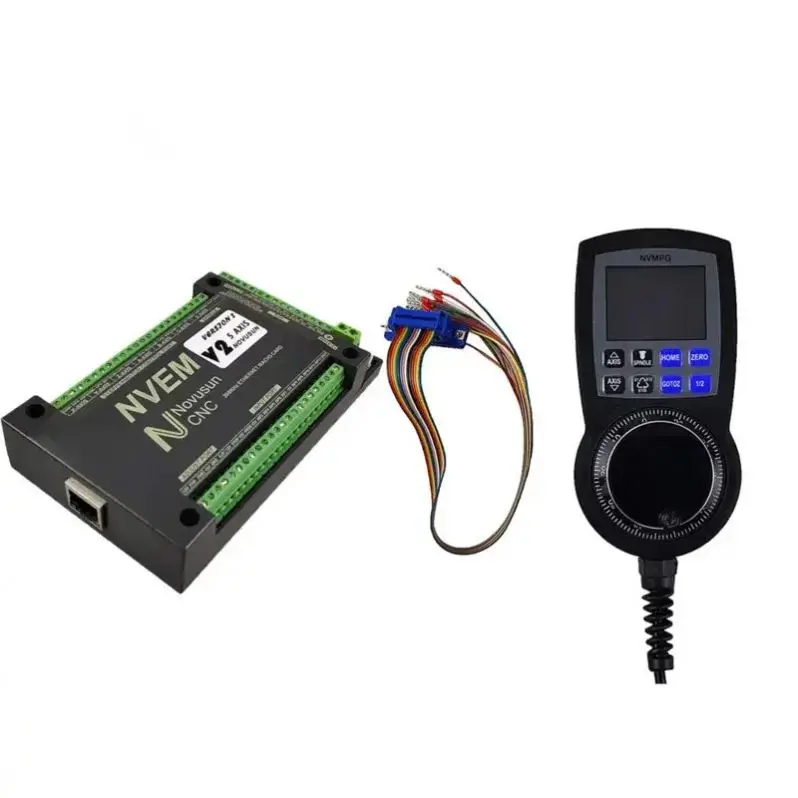

TEBAK NVMPG CNC Ec500 3/4/5/6Axis MPG Manual Pulse Generator with Handwheel & LCD Mach3 CNC Motion Controller Kit

TEBAK NVMPG CNC Ec500 3/4/5/6Axis MPG Manual Pulse Generator with Handwheel & LCD Mach3 CNC Motion Controller Kit

Product display

Notice and Waring

Size

NVEMV2.1 motion controller is with the sealed shell structure,there are 4pcs setting holes

at the bottom.We can fix 4pcs 4mm diameter holes at the cabinet,and install the controller into

the cabinet.The controller appearance as the Figure 1-1 and Figure 1-2 show:

The products overall size is 163.1mm*80.8mm*27.8mm;

The bottom install size is 101.4mm*39.5mm.

Power

Performance parameters:

Support Ethernet;

12 ports photoelectric isolated input interface for ordinary digital data;

10 ports photoelectric isolated output interface for ordinary digital data;

1 port 0-10V spindle speed analog output interface(can change to PWM output);
