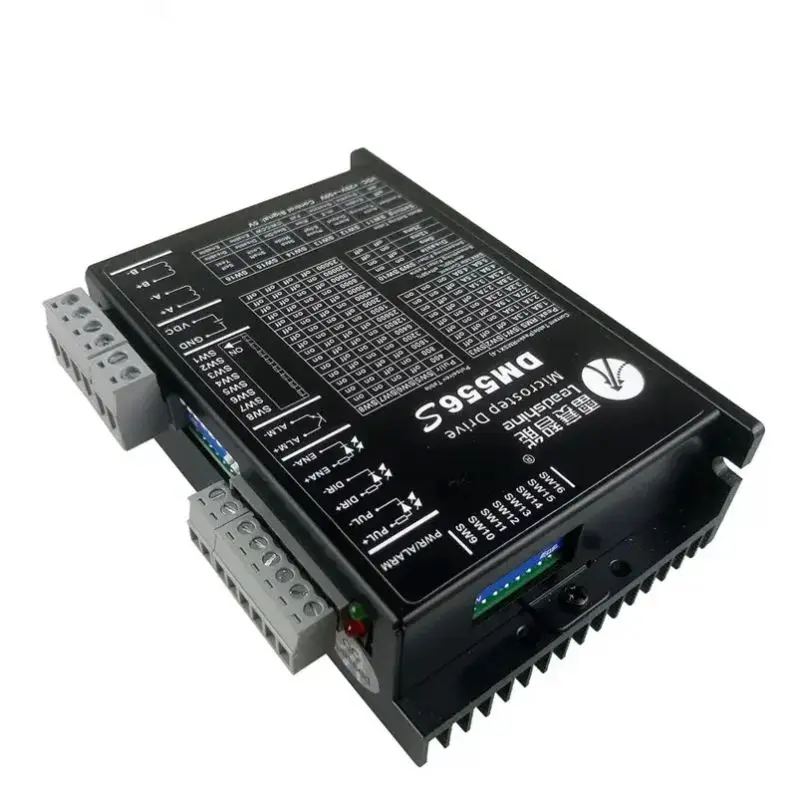

TEBAK Original New 2Phase Stepper Motor Driver DM556S Current 4.2A 5.6A Engraving Machine

Leadshine Original New 2Phase Stepper Motor Driver DM556S Power Supply Voltage 20-50VDC Current 4.2A 5.6A Engraving Machine

Product Package:

1 x stepper motor drive

Product Description:

1.Introduction:

Can drive 4-wire, 8-wire two-phase stepper motor

Voltage input range: 18 ~ 48 VDC

Maximum current: 5.6A, resolution: 0.1A

Subdivision range: 200~51200ppr

Signal input: differential / single-ended, pulse / direction or double pulse

Impulse response frequency: 200KHz

2.Features:

Anti-Resonance, provides optimum torque and nulls mid-range instability

Motor self-test and parameter auto-setup technology, offers optimum responses with different motors

Multi-Stepping allows a low resolution step input to produce a higher microstep output for smooth system performance

Microstep resol
