Three Axis Rotary Coding Machine Pneumatic Metal/Plastic Nameplate/Date/VIN Number Dot Peen Pin Marking Engraving Marker Machine
Request pricing, MOQ and lead time for this product — we reply within 24 hours.

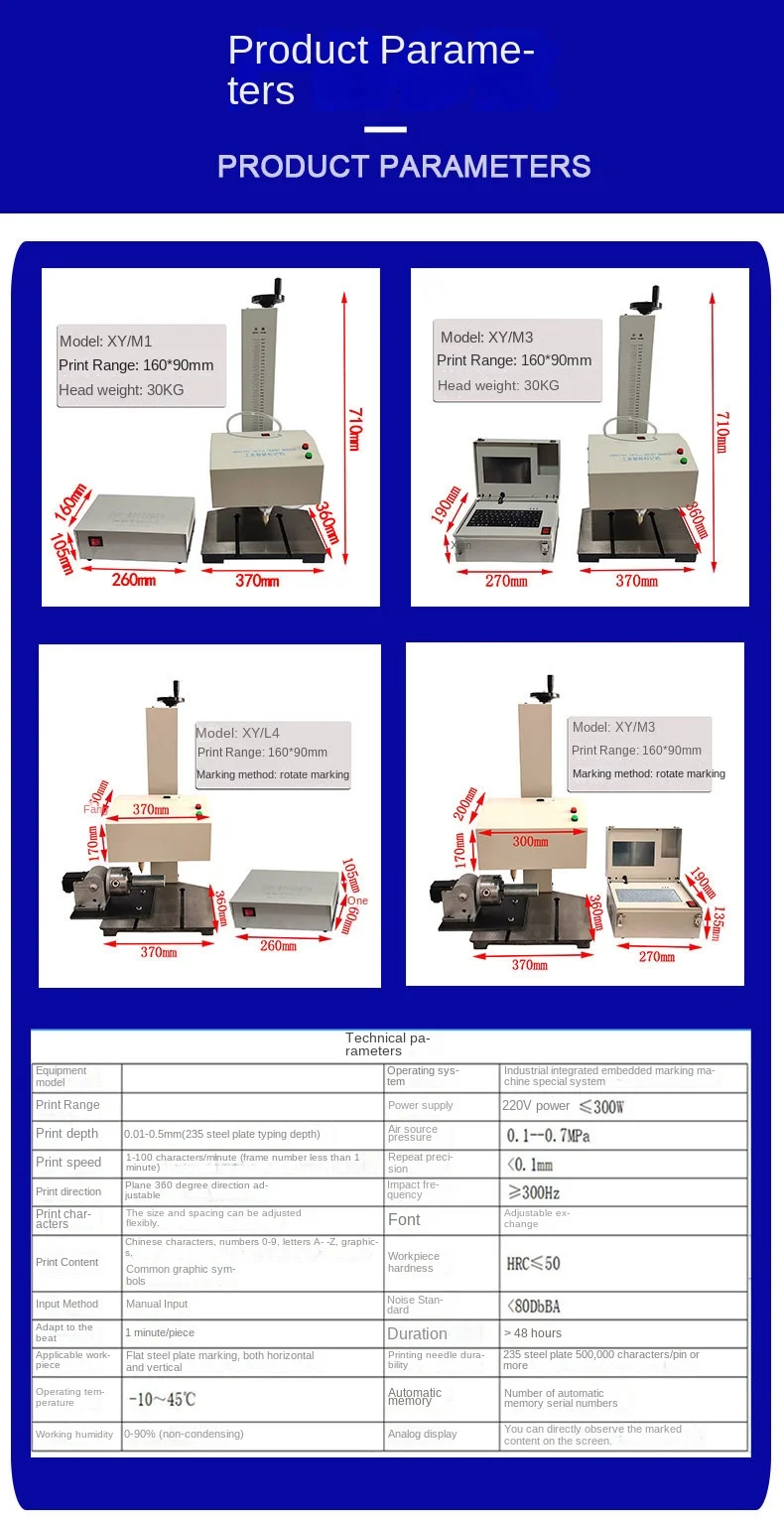

Product parameters
- Product Name
- Dot Peen Rotary Marking Machine
- Model
- M1/M3/L4
- Marking Depth
- 0.01~2mm
- Marking Speed
- ≤50mm/s (for characters height of 3mm / 3-4 numbers /second)
- Air Pressure
- 0.2-0.6Mpa
- Z Axis Lifting Range
- 0-300 mm or customized
- Marking Accuracy
- 0.01mm
- Pin Hardness
- HRC 92
- Power Supply
- 220V±10%, 50HZ
- Air Pressure
- 0.2-0.6 Mpa
- Machine Power
- ≤400 W
- Working Environment
- -5~40 °C
- Whole Machine Weight
- 60KG
- Measurement
- 0.21CBM
Description
Three Axis Rotary Coding Machine Pneumatic Metal/Plastic Nameplate/Date/VIN Number Dot Peen Pin Marking Engraving Marker Machine
Product Description
Product Name
Dot Peen Rotary Marking Machine
Model
M1/M3/L4
Marking Depth
0.01~2mm
Marking Speed
≤50mm/s (for characters height of 3mm / 3-4 numbers /second)
Air Pressure
0.2-0.6Mpa
Z Axis Lifting Range
0-300 mm or customized
Marking Accuracy
0.01mm
Pin Hardness
HRC 92
Power Supply
220V±10%, 50HZ
Air Pressure
0.2-0.6 Mpa
Machine Power
≤400 W
Working Environment
-5~40 °C
Whole Machine Weight
60KG
Measurement
0.21CBM
Packing/Shipping
Company introduction
Hengshui Mengshang Trading Co., Ltd. is a main professional supplier in Product Machine,CNC Carbide inserts, Turning

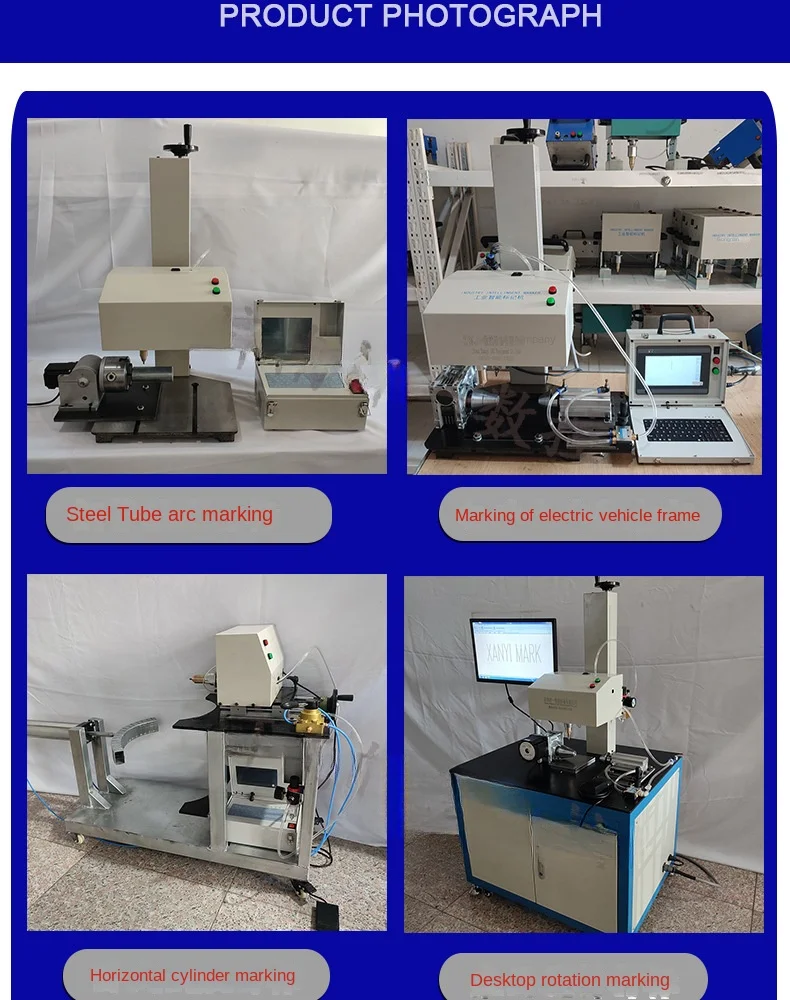

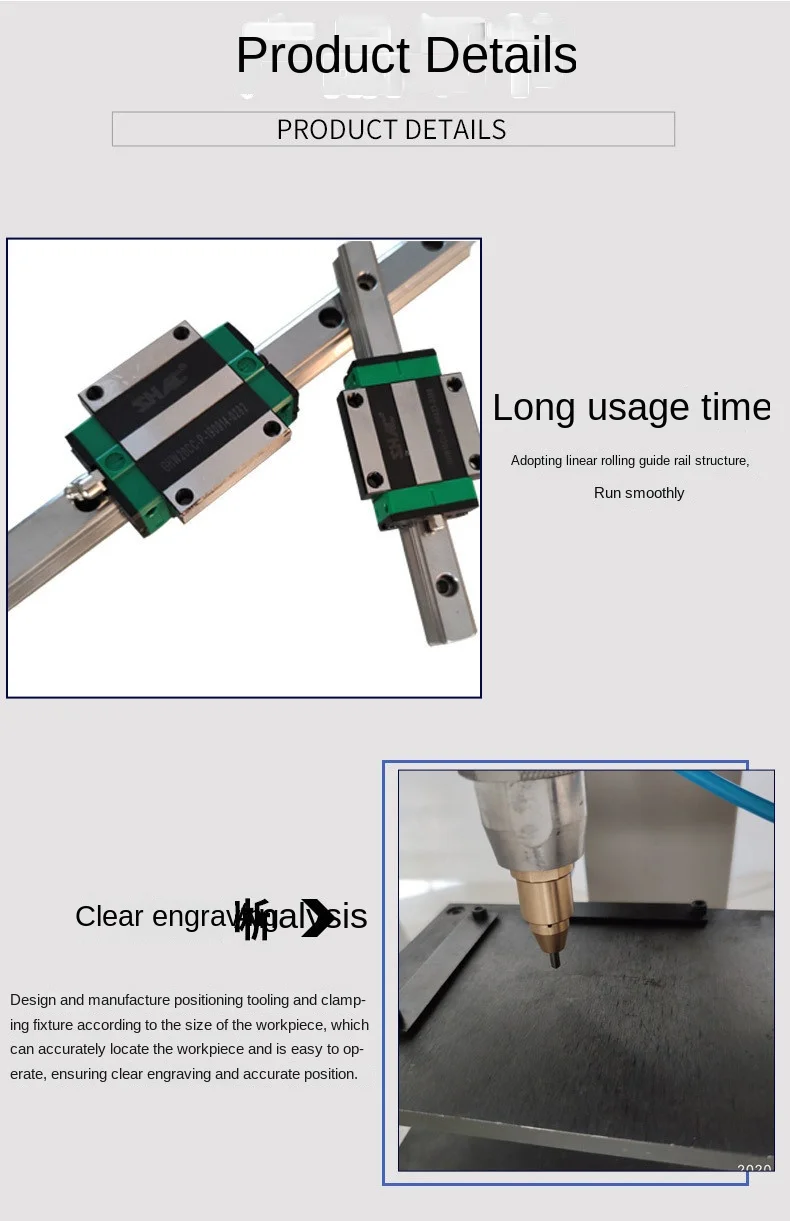

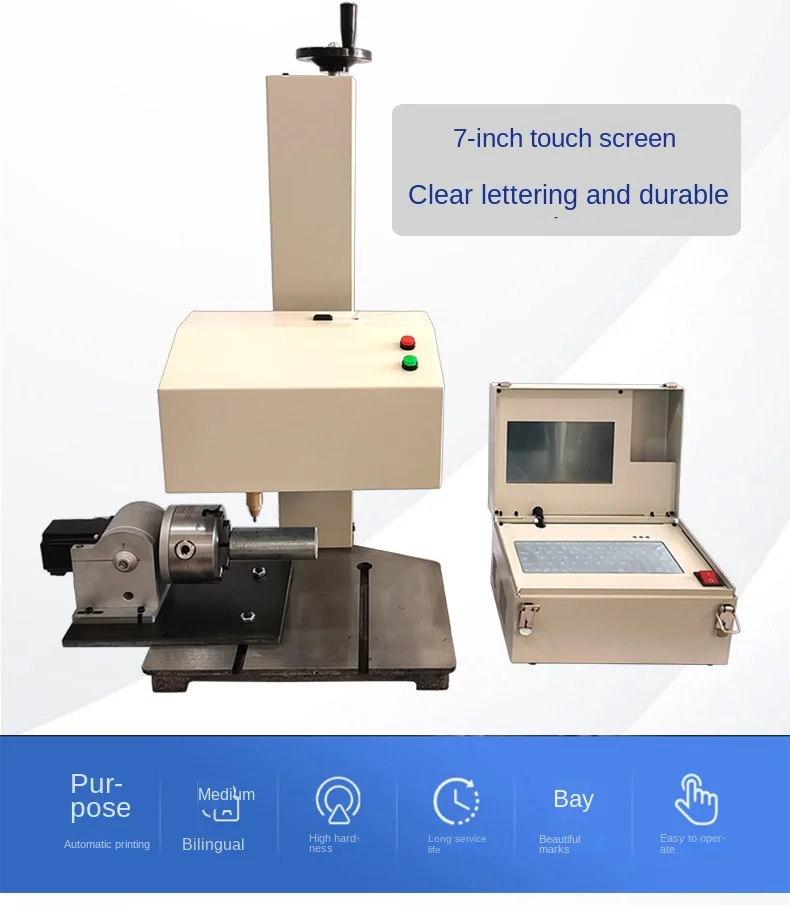

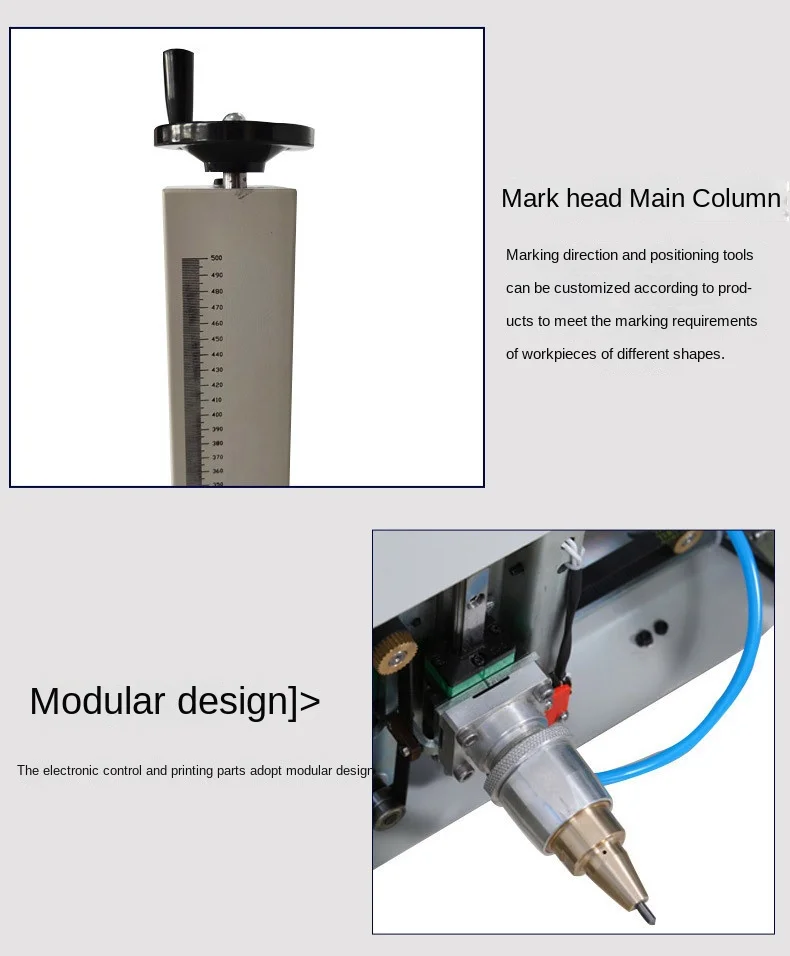

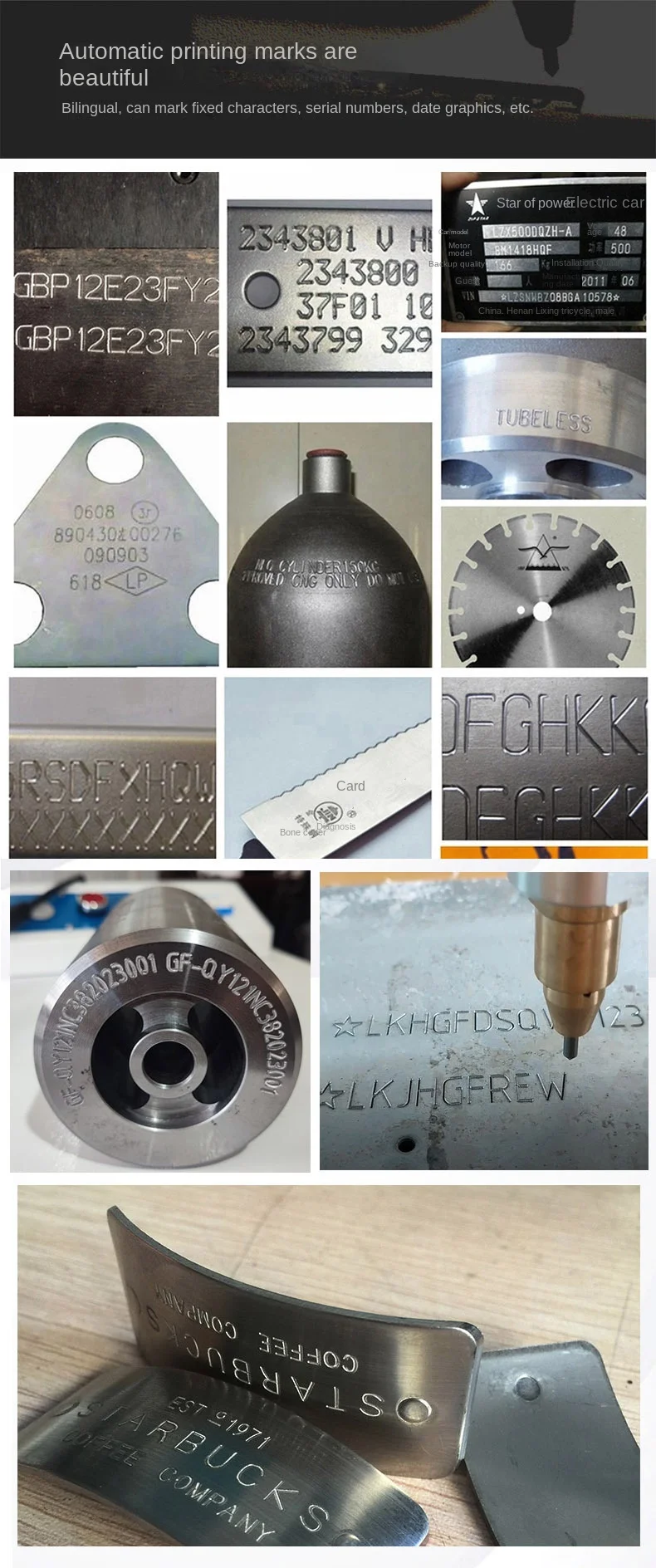

Detail images
