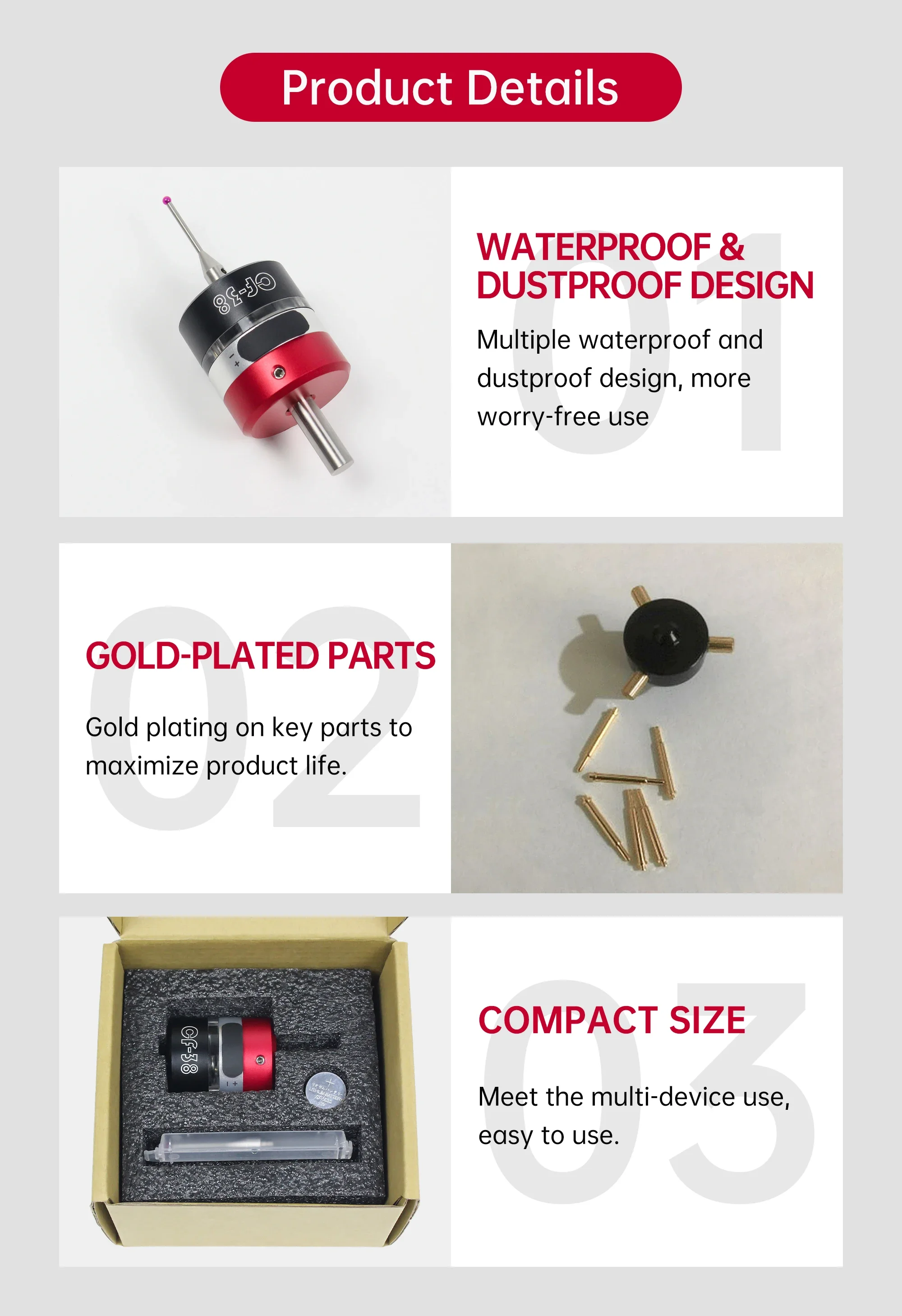

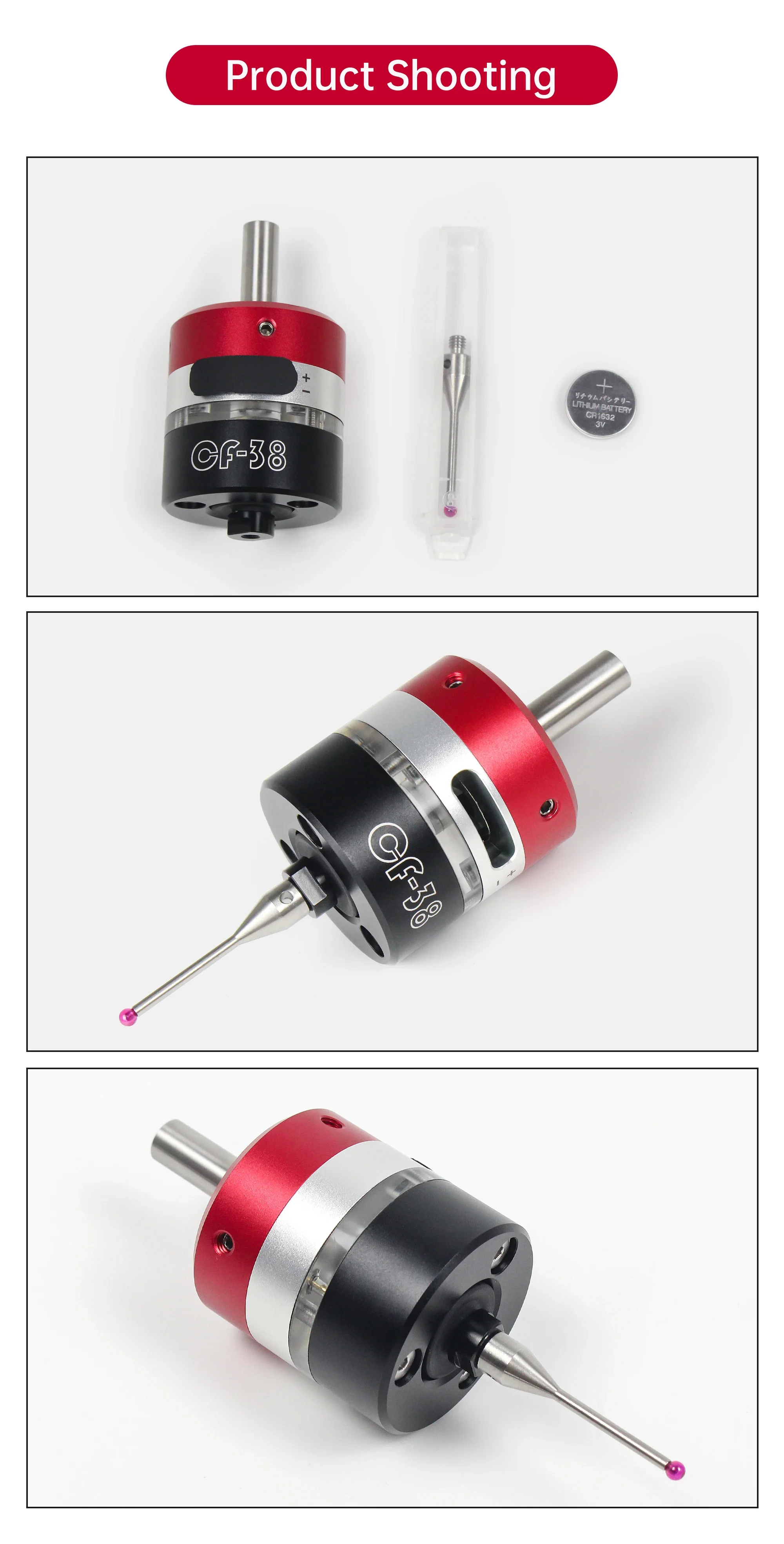

TEBAK 3D Edge Finder Machining Center Cnc Milling Machine Three-coordinate Precision Probe Centring Rod Tool Setter CF-38

Package description:

Product Name: Trigger 3D Edge Finder

Item model number: CF-38

Probe safety stroke: X.Y plane ±20°, Z direction +2.5mm

Power supply: CR1632 3V button battery × 1

Measurable insulating material

1. Installation of the probe

As

shown in the figure below, there is a wrench slot at the probe

interface. When installing the probe, you must hold the probe seat to

prevent it from rotating, otherwise the internal parts of the probe will

be damaged.

2. Battery replacement

As

shown in the figure below, remove the battery plug, remove the battery

with tweezers, replace the battery with a new one, and install the

battery according to the "±" mark on the side. After the replacement,
