Fujikura FSM-28S/FSM-38S/FSM-48S Automatic Fiber Optic Cable Welding Machine Fiber Fusion Splicer CT-08 CT-50

Product parameters

Product number

Japan Fujikura FSM-27S/28S

Fiber Alignment

Active V-groove cladding alignment

Applicable fiber type

SMF(G.652), MMF(G.651), DSF(G.653), NDSF(6.655), BIF(G.657)

Applicable fiber type

250μm inner core sheath cable; 250μm inner core pigtail/jumper: 250μm bare fiber and 600μm/900μm coated fiber; 2mm/3mm outer diameter pigtail/jumper; invisible fiber

Cladding diameter

125μm

Coating diameter

100μm to 3mm (Multifunctional sheath pressure plate does not need to change the fixture)

Fiber Cut Length

5~16mm

Splicing/heating mode

A total of 100 splicing modes and 30 heating modes

Actual average splice loss

0.02dB(SM), 0.01dB(MM0, 0.04dB(DS), 0.04dB(NZDS)

Fusion heating time

Splicing standard SM fiber for 6 seconds, heating standard FP-03 (60mm) heat shrinkable tube for 25 seconds

Storage of welding results

10000 records, 100 fusion images

Fiber optic display and magnification

X/Y displayed separately or simultaneously; 300 times/200 times

Optical fiber observation method

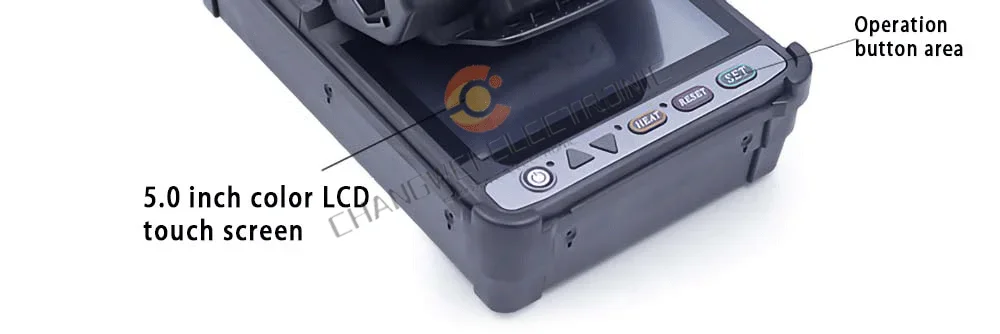

Dual-axis observation; 5.0-inch color LCD display (touchable)

Tensile test

1.96~2.25N

Corresponding heat shrink tube

60mm, single-core 40mm, single-core 20mm single-core and all kinds of leather cable and hot-melt joint use casing

Electrode Rod Life

Discharge 5000 times

power supply

100-240V AC(50-60Hz)

Communication Interface

USB2.0 (Mini-B) for PC connection, support Internet networking software upgrade

operating conditions

Altitude 0-5000m, wind speed 15m/s, temperature -10-+50'℃, relative humidity 0-95% non-condensing

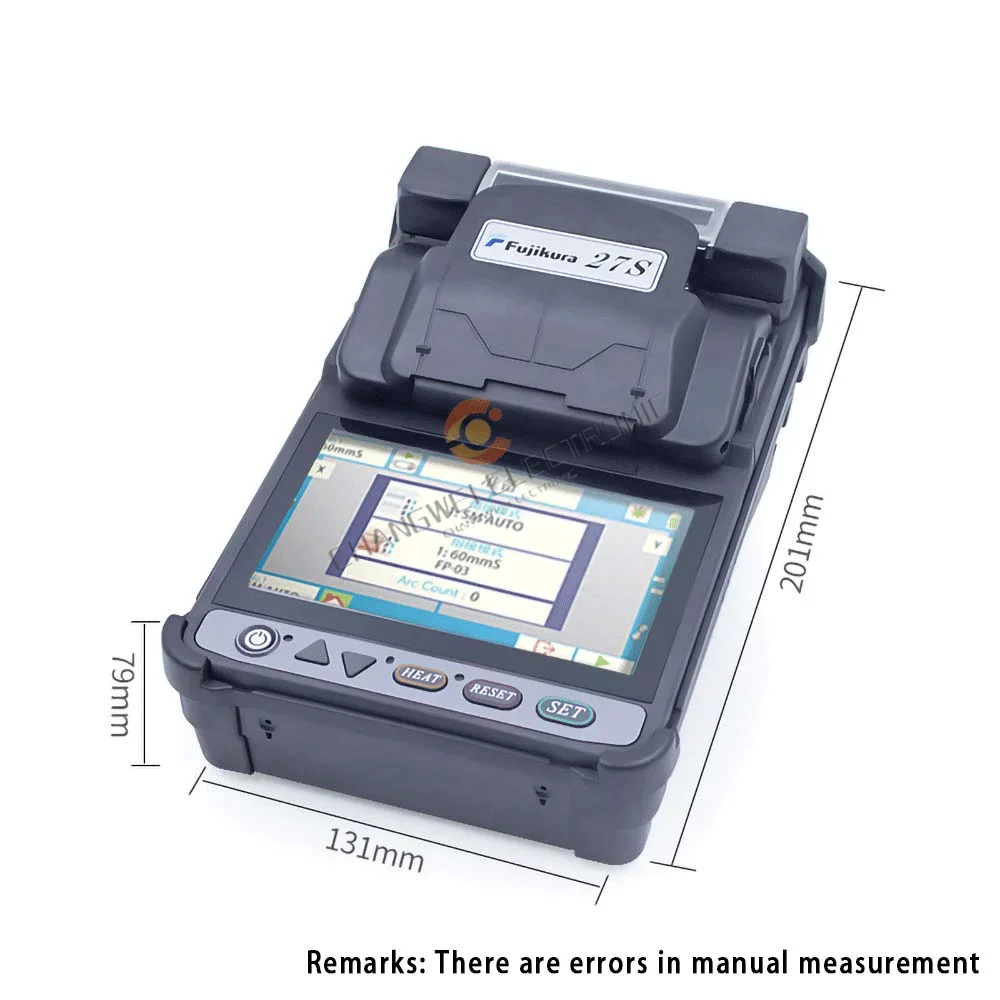

size and weight

131Wx201Dx79H(mm)/1300g(including battery)

Description

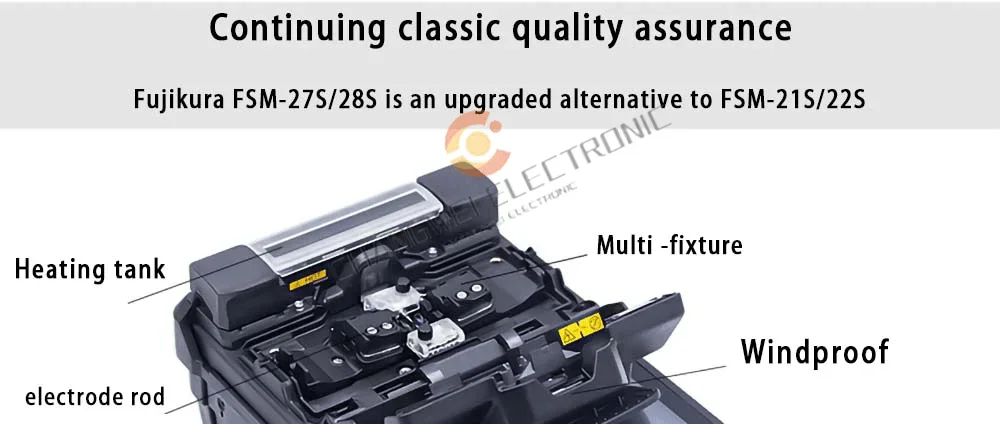

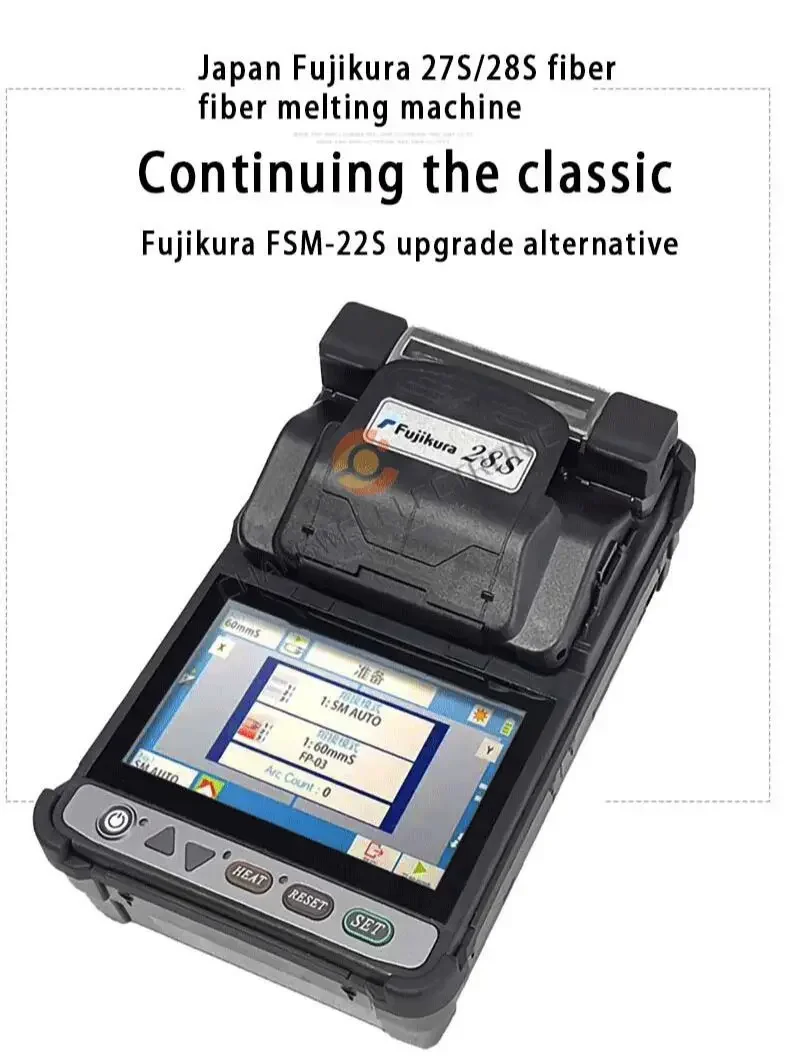

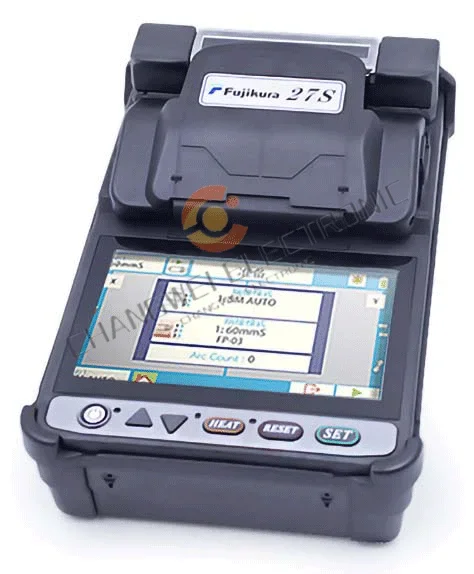

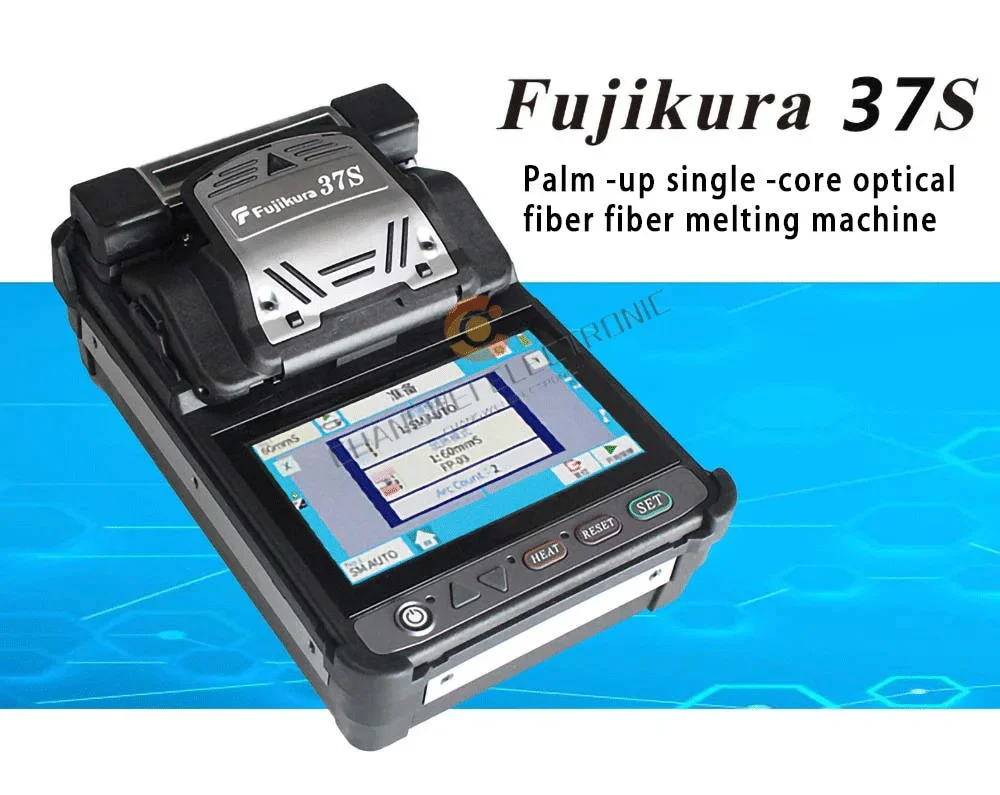

Detail images
