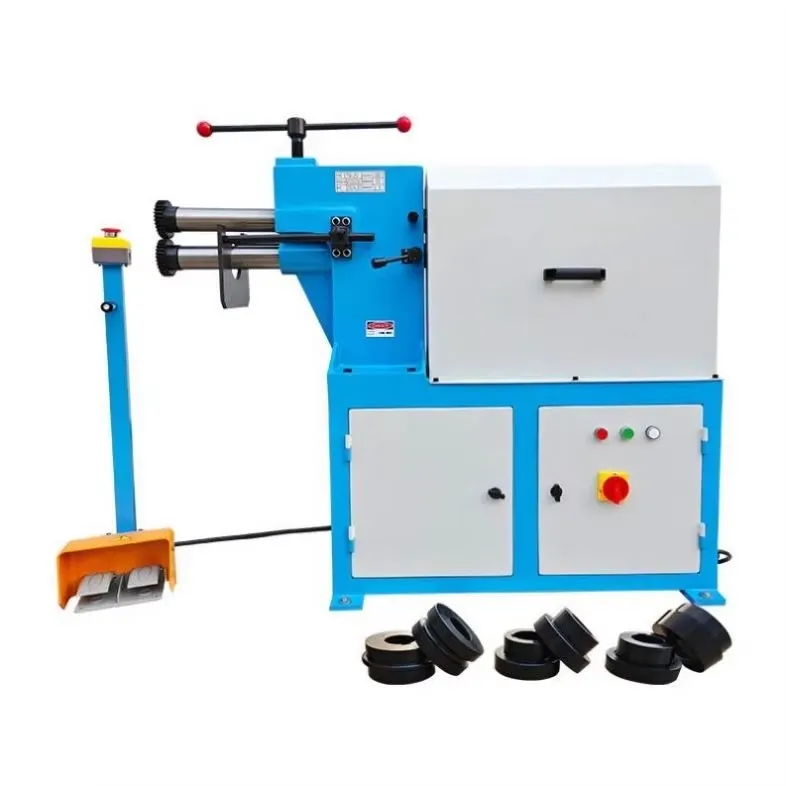

TEBAK Electric Hydraulic Heavy Gauge Sheet Metal ETB-20 ETB-40 Bead Bending Machine Bead Bender Machine Beading Machine

TEBAK Electric Hydraulic Heavy Gauge Sheet Metal ETB-20 ETB-40 Bead Bending Machine Bead Bender Machine Beading Machine

Product Description

This kind of bead bending machine with nice appearance can be used to manufacture round tube, plate beading and connecting. It can press plate into a certain ridge to enhance the rigidity of tube, metal plate, or to raise function of connection. It’s very easy to operate.

This stucture of bead bending machine ETB-40 is consist of power component and mechanical component . Power component including motor and reducer, mechanical component including transmission, adjusting, lubrication and the stand. The main movement of this machine is the circumnutation of upper and lower rollers, it runs by the following principle: motor drives reducer, reducer drives reducer gear wheel , big gear wheel and transmission gear, to achieve the upper and lower rollers rotating with the same speed but opposite direction.

Features of ETB-40 bead bending machine:

1. The Bead bending machine makes swaged plate, connection and so on of circular pipes, which refer to crushing the thin plates into the ribs in certain shapes.

2. The rigidity of the plates, pipes or metal components is strengthened.

3. Steel welded construction frame

4. Adjustable idle roller

5. Steel shaft with bronze bushings

6. Reduction motor with brake system

7. Movement of rollers with foot pedal

8. Complete with stand

9. 4 sets standard rollers

Main specification

Specifications:

Model

ETB-25

ETB-40

Thickness max

2.5mm/12Ga

4mm/8Ga

Cylinder length

120mm/ 4-3/4”

165mm / 6-1/2”

Throat depth

280mm / 11”

300mm / 12”

Cylinder speed

20rpm

15.3rpm

Motor power

1.5kW / 2HP

2.2kW / 3HP

Net weight

235kg/518lb

341kg/752lb

Packing size (cm)

147x58x135

165x58x140

Standard accessories: 4 sets standard rollers

Optional accessories: 8 kinds of extra rollers
